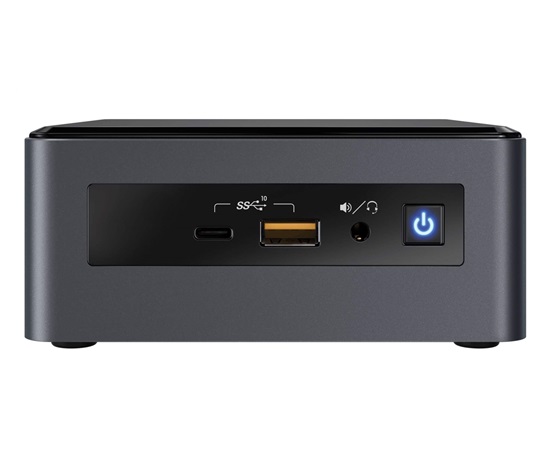

INTEL NUC Kit 8V5PNH/i5- 8365U/DDR4/USB3.0/LAN/WifFi/UHD620/M.2+2,5"/vPro (Provo Canyon)

We are sorry, this product is no longer in our offer.

INTEL NUC Kit 8V5PNH/i5- 8365U/DDR4/USB3.0/LAN/WifFi/UHD620/M.2+2,5"/vPro (Provo Canyon)
INTEL NUC Kit 8V5PNH/i5- 8365U/DDR4/USB3.0/LAN/WifFi/UHD620/M.2+2,5"/vPro (Provo Canyon)
×
0/0
INTEL NUC Kit 8V5PNH/i5- 8365U/DDR4/USB3.0/LAN/WifFi/UHD620/M.2+2,5"/vPro (Provo Canyon)
INTEL NUC Kit 8V5PNH/i5- 8365U/DDR4/USB3.0/LAN/WifFi/UHD620/M.2+2,5"/vPro (Provo Canyon)

Manufacturer

Intel
Code20126720
Part No.BKNUC8V5PNH
GPSR

Product description

ParametrHodnota
Provedení PCMini-PC
Využití PCDomácnost a kancelář
Řada procesoruIntel Core i5
Grafický čipIntel HD
Druh optické mechanikyBez optické mechaniky
Výbava PCIntegrovaná GPU
RozhraníHDMI
RozhraníUSB 2.0
RozhraníUSB 3.0
RozhraníUSB 3.1
RozhraníDisplayPort


Specifikace:

Essentials
Product Collection Intel NUC Kit with 8th Generation Intel Core™ Processors
Code Name Products formerly Provo Canyon
Supported Operating Systems Windows 10, 64-bit*, Windows 10 IoT Enterprise*, Windows Server 2019*, Ubuntu 18.04 LTS*
Board Number NUC8v5PNB
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 and 2.5" Drive
# of Internal Drives Supported 2
DC Input Voltage Supported 12-24 VDC
Processor Included Intel Core™ i5-8365U Processor (6M Cache, up to 4.10 GHz)
Intel vPro Platform Eligibility ‡ Yes
# of Cores 4
# of Threads 8
Processor Base Frequency 1.60 GHz
Max Turbo Frequency 4.10 GHz
Warranty Period 3 yrs
Supplemental Information
Description Intel NUC 8 Pro Kit
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-2400 1.2V SO-DIMM
Max # of Memory Channels 2
Max # of DIMMs 2
ECC Memory Supported ‡ No
Processor Graphics
Processor Graphics ‡ Intel UHD Graphics
Integrated Graphics ‡ Yes
Graphics Output Dual HDMI 2.0a, DP 1.2 via Type C, 4-lane eDP 1.4
# of Displays Supported ‡ 3
Expansion Options
PCI Express Revision Gen 3
PCI Express Configurations ‡ PCIe x4: M.2 22x80 (key M) slot PCIe x1: M.2 22x30 (key E) slot
M.2 Card Slot (wireless) 22x30 (key E) slot
M.2 Card Slot (storage) 22x80 (key M) slot
I/O Specifications
# of USB Ports 4
USB Configuration USB 3.1 (type C): 1 rear USB 3.1 (type A): 2 front, 1 rear USB 3.0: 1 header USB 2.0: 1 rear, 2 headers
Total # of SATA Ports 1
RAID Configuration 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
Serial Port via Internal Header Yes
Integrated LAN Intel i219-LM 10/100/1000 Mbps Ethernet
Integrated Wireless‡ Intel Wireless-AC 9560 + Bluetooth 5.0
Integrated Bluetooth Yes
Additional Headers Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
# of Thunderbolt™ 3 Ports 1 (Type C)
Package Specifications
Chassis Dimensions 117 x 112 x 53 mm
Advanced Technologies
Intel Optane™ Memory Supported ‡ Yes
Intel Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel vPro Platform Eligibility ‡ Yes
TPM Yes
TPM Version 2
Intel Virtualization Technology (VT-x) ‡ Yes
Security & Reliability
Intel AES New Instructions Yes
Intel Trusted Execution Technology ‡ Yes
