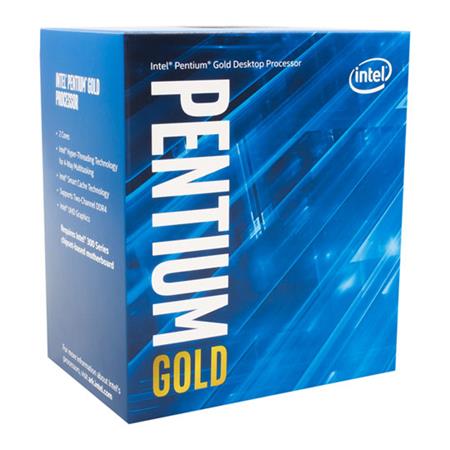

INTEL Pentium Procesor G5500 3,8GHz/2core/4MB/LGA1151/Coffee Lake

Product description

Essentials
Product Collection Intel® Pentium® Gold Processor Series
Code Name Products formerly Coffee Lake
Vertical Segment Desktop
Processor Number G5500
Status Launched
Launch Date Q2'18
Lithography 14 nm

Performance
# of Cores 2
# of Threads 4
Processor Base Frequency 3.80 GHz
Cache 4 MB SmartCache
Bus Speed 8 GT/s DMI3
TDP 54 W

Supplemental Information
Embedded Options Available No

Memory Specifications
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-2400
Max # of Memory Channels 2
Max Memory Bandwidth 37.5 GB/s
ECC Memory Supported ‡ Yes

Processor Graphics
Processor Graphics ‡ Intel® UHD Graphics 630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.10 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60Hz
Max Resolution (HDMI 1.4)‡ 4096x2304@24Hz
Max Resolution (DP)‡ 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡ 3
Device ID 0x3E91

Expansion Options
Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16

Package Specifications
Sockets Supported FCLGA1151
Max CPU Configuration 1
Thermal Solution Specification PCG 2015C (65W)
TJUNCTION 100°C
Package Size 37.5mm x 37.5mm
Low Halogen Options Available See MDDS

Advanced Technologies
Intel® Optane™ Memory Supported ‡ No
Intel® Turbo Boost Technology ‡ No
Intel® vPro™ Technology ‡ No
Intel® Hyper-Threading Technology ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® TSX-NI No
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes
Intel® Stable Image Platform Program (SIPP) No

Security & Reliability
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes
Intel® Memory Protection Extensions (Intel® MPX) No
Intel® OS Guard No
Intel® Trusted Execution Technology ‡ No
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
