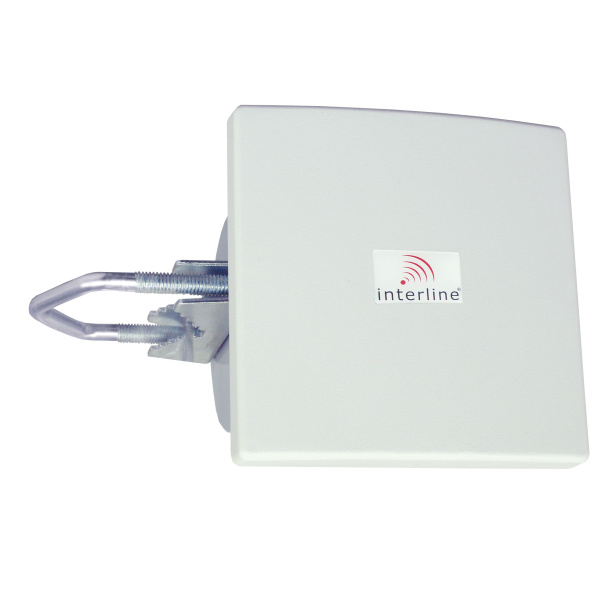

Interline panel antenna 14dBi 5GHz

Product description

Interline Panel 14dBi antenna is directional client that works well with all 5Ghz wireless devices. It can be used both indoor and outdoor environments. Antenna radiator is precisely designed pložně the circuit element. The modular design ensures accurate assembly, which ensures reliable performance in all weather conditions, with constant quality. The antenna gain of 14dBi, which quadrupled extends the reach of conventional anténkám that come with wireless devices.
Key features:
-Resistant holder with positioning
-ABS housing protects the radiating element from the wind, rain, snow and ice
-Very thin and inconspicuous-Thickness: 18 mm
Specifications

style="background-color: rgb(184,184,184); width: 183px;">Frequency style="background-color: rgb(184,184,184); width: 183px;">Polarization style="background-color: rgb(184,184,184); width: 183px;">Profit style="background-color: rgb(184,184,184); width: 183px;">Beam Angle (H/V) style="background-color: rgb(184,184,184); width: 183px;">Connector style="background-color: rgb(184,184,184); width: 183px;">VF cable length style="background-color: rgb(184,184,184); width: 183px;">VSWR style="background-color: rgb(184,184,184); width: 183px;">Impedance style="background-color: rgb(184,184,184); width: 183px;">Front to back ratio style="background-color: rgb(184,184,184); width: 183px;">Dimensions style="background-color: rgb(184,184,184); width: 183px;">Weight style="background-color: rgb(184,184,184); width: 183px;">mounting kit for mast style="background-color: rgb(184,184,184); width: 183px;">Contents

Parameter	Value
5.2 to 5.8 Ghz
vertical, horizontal
14 dBi
30 °/30 °
N female
-
<2
50 ?
>20

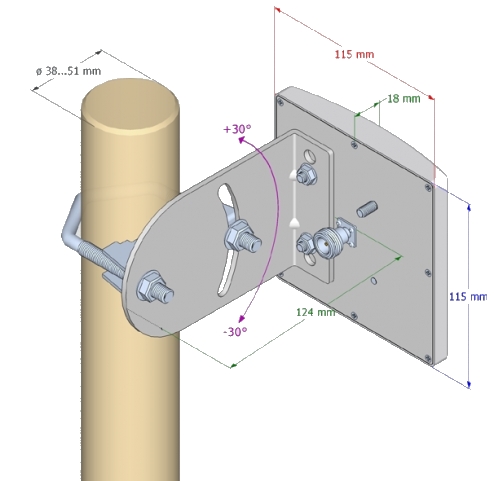

115 x 115 x 18 mm
0.34 kg
? 38-51 mm
antenna mount
