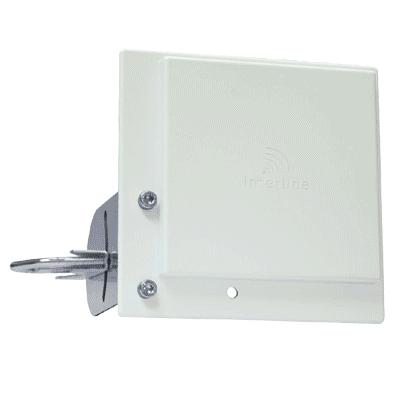

Interline panel antenna 19dBi 5GHz

Product description

High quality and proven panel antenna with UV cover for the band 5250-5900 MHz gain of 19dB and angles 16/16. Suitable as client antenna for a shorter PtP connections. High gain panel antenna with adjustable polarization with tilt.
Key features:
-Can be easily attached to the mast with tilting
-Operates in both the horizontal and the vertical polarization
-UV cover
-Modern design
Specifications

style="background-color: rgb(184,184,184); width: 183px;">Frequency style="background-color: rgb(184,184,184); width: 183px;">Polarization style="background-color: rgb(184,184,184); width: 183px;">Profit style="background-color: rgb(184,184,184); width: 183px;">Beam Angle (H/V) style="background-color: rgb(184,184,184); width: 183px;">Connector style="background-color: rgb(184,184,184); width: 183px;">VF cable length style="background-color: rgb(184,184,184); width: 183px;">VSWR style="background-color: rgb(184,184,184); width: 183px;">Impedance style="background-color: rgb(184,184,184); width: 183px;">Front to back ratio style="background-color: rgb(184,184,184); width: 183px;">Dimensions style="background-color: rgb(184,184,184); width: 183px;">Weight style="background-color: rgb(184,184,184); width: 183px;">mounting kit for mast style="background-color: rgb(184,184,184); width: 183px;">Contents

Parameter	Value
5-5.9 Ghz
vertical, horizontal
19 dBi

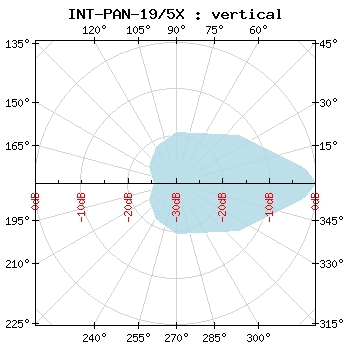

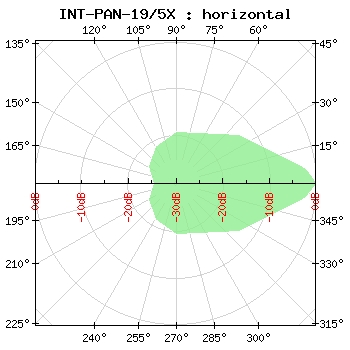

16 °/16 °
N female
-

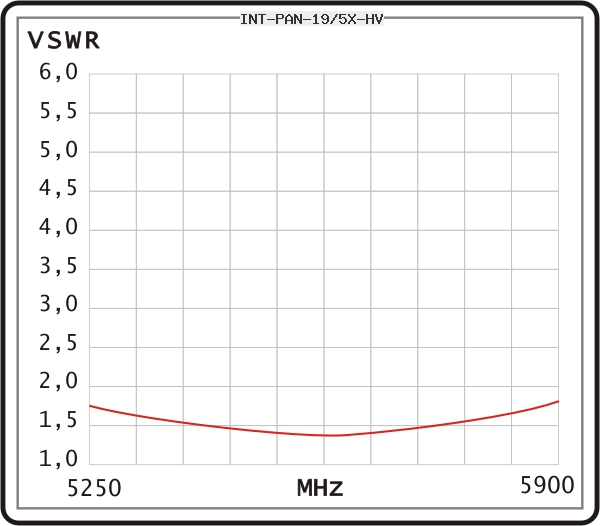

<2
50 ?
>30 db
200 x 196 x 20 mm
0.65 kg
? 38-51 mm
antenna mount
