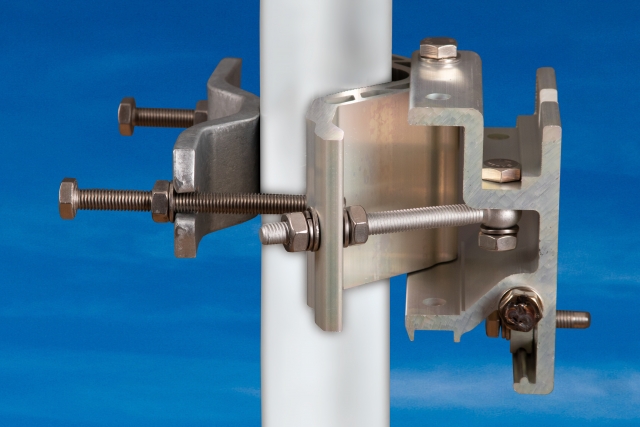

JIROUS JDMW-400 - Precision Antenna Mount

JIROUS JDMW-400 - Precision Antenna Mount
JIROUS JDMW-400 - Precision Antenna Mount
×
0/0
JIROUS JDMW-400 - Precision Antenna Mount
JIROUS JDMW-400 - Precision Antenna Mount
JIROUS JDMW-400 - Precision Antenna Mount
JIROUS JDMW-400 - Precision Antenna Mount
JIROUS JDMW-400 - Precision Antenna Mount
JIROUS JDMW-400 - Precision Antenna Mount

Your price excl. VAT
67.56 EUR
Your price incl. VAT (21%) 81.75 EUR
blank

stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Not in stock
Plzeňtrue
false
false

stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Not in stock
Availability
at our branches
Manufacturer

Jirous

Code20246072
Part No.JDMW-400
Warranty 23 months
Parameters
GPSR

Product description

New design for easier installation and more stable tightening after alignment.

Application:

  • antennas for microwave links up to 90 GHz

Specifications:

  • The JDMW-400 mount is designed for antennas requiring easy handling and high stability
  • High corrosion resistance
  • Fine adjustment of both elevation and azimuth
  • Right or left mounting option
  • All bolts can be tightened with a single 17 mm wrench
  • Easy installation
  • All threads in aluminum are reinforced with stainless steel inserts
  • Threads are treated with a special anti-seize compound for stainless steel connections

Technical Parameters:

  • Antenna diameter: max. 600 mm
  • Mounting on mast: O 40 – 120 mm
  • Fine azimuth adjustment: ±16°
  • Fine elevation adjustment: ±20°
  • Weight: 2.4 kg

Easy Installation:

  • During installation, all parts stay together — nothing can fall off (not even a screw or nut).

Note:

For easier screw handling and to prevent seizing during potential future disassembly, it is recommended to treat the screws with Grasso HT spray before installation.

GPSR

Contact:
Jirous, spol. s r.o.
Nad Krocínkou 46 Prague 9190 00 Czech Republic
kontakt@jirous.com

Bussines information

Discomp s.r.o., +420 377 221 177, sales@discomp.cz

Technical parameters

Wireless features

Elevation beam width (-6dB) [°]: 20
Azimuth beam width (-6dB) [°]: 16

Physical characteristics

Designed for mast diameter [mm]: 40 up to 120
Mounting: On the mast
Weight [kg]: 2,4
