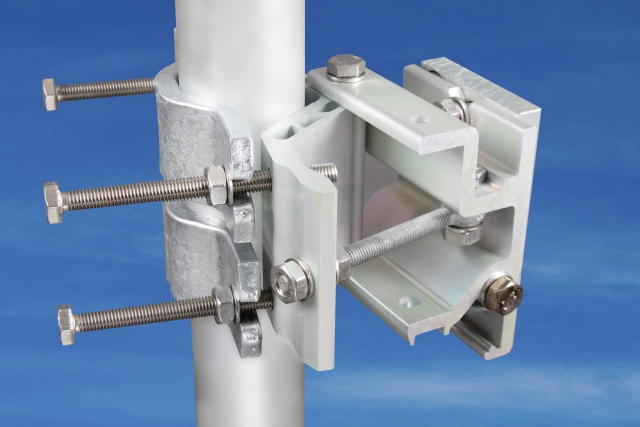

JIROUS JDMW-900AR - Precision Antenna Mount

Product description

New design for easier installation and more stable tightening after alignment.

Application:

• antennas for microwave links up to 90 GHz

Specifications:

• The JDMW-900 mount is designed for antennas requiring easy handling and high stability
• High corrosion resistance
• Fine adjustment of elevation and azimuth
• Right or left mounting
• All bolts can be tightened with a single 17 mm wrench
• Easy installation

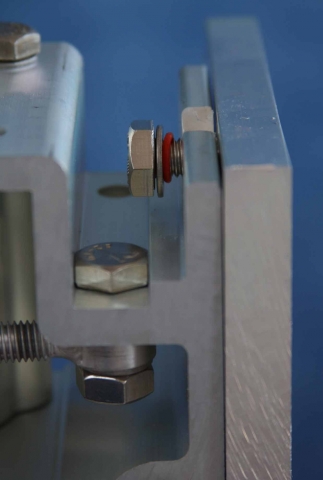

• All threads in aluminum are reinforced with stainless steel inserts
• Threads are treated with a special anti-seize compound for stainless steel connections

Technical Parameters:

• Antenna diameter: max. 1000 mm
• Pole mounting: diameter 40 – 120 mm

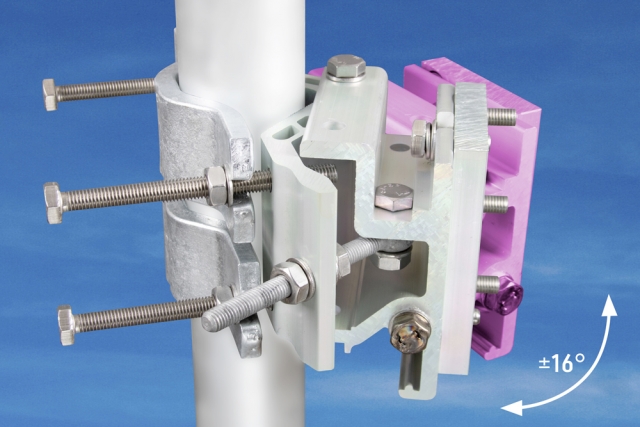

• Fine azimuth adjustment: ±16°

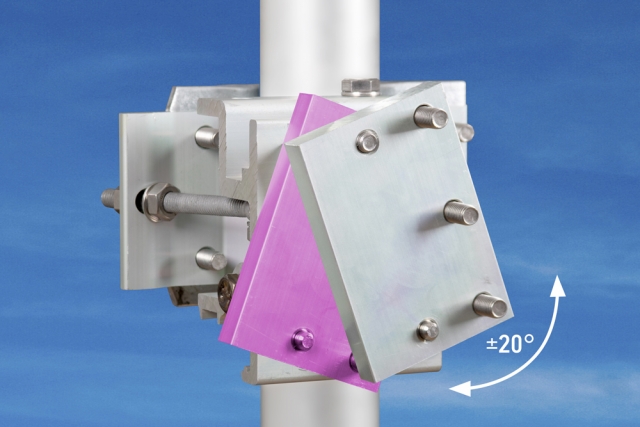

• Fine elevation adjustment: ±20°
• Weight: 3.2 kg
