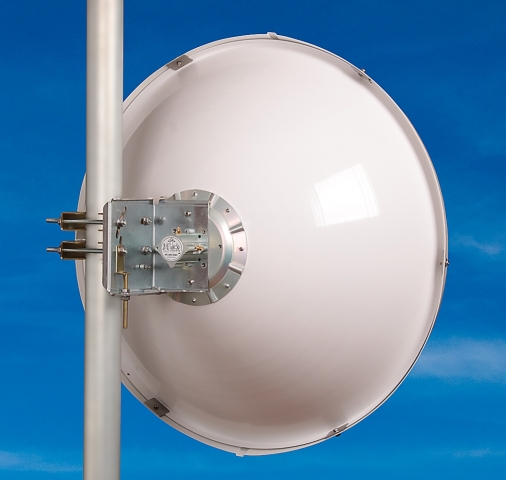

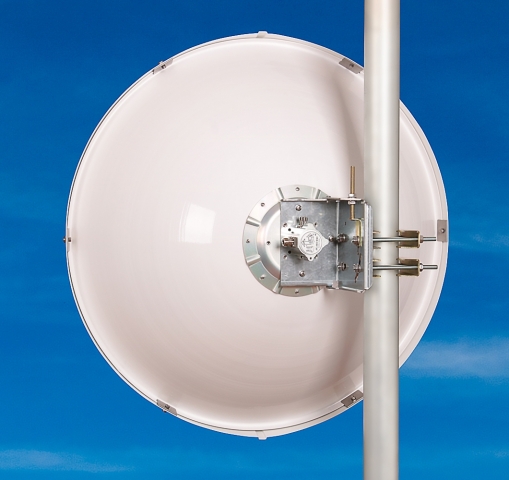

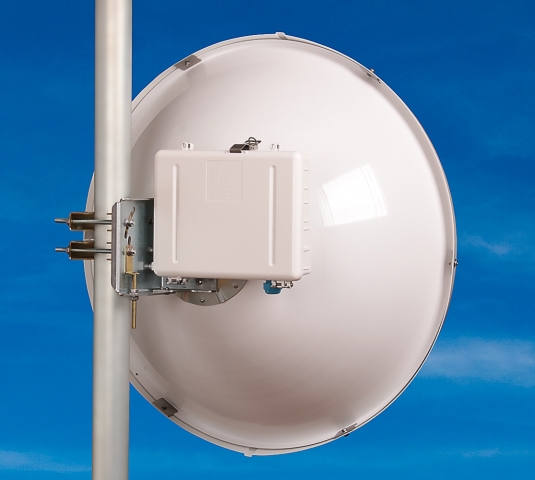

JIROUS JRC-29DD MIMO Precision (SMA)

Product description

• Dual-polarized MIMO antenna, horizontal/vertical or 2×45° polarization
• Deep parabolic design increases isolation between antennas on the mast and improves the radiation pattern

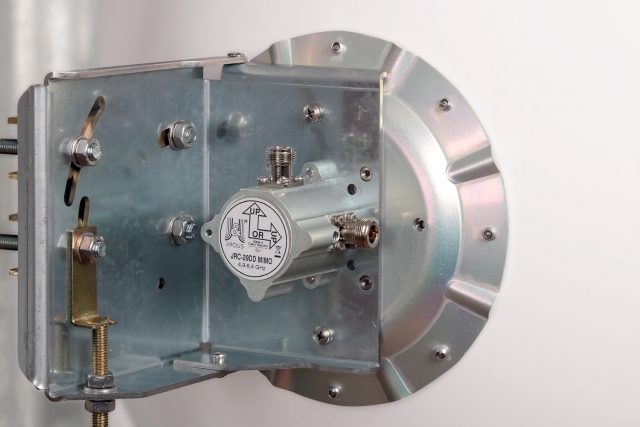

• Precision, heavy-duty JDMW-900 mount designed for professional microwave links
• New design with extended frequency range
• High front-to-back ratio
• Simple mounting with JR-200 or JR-250 Alu
• Directional links or client connections for medium distances or short links under challenging conditions
• Easy adjustment of elevation and azimuth
• The achievable link distance can be calculated using the link calculator

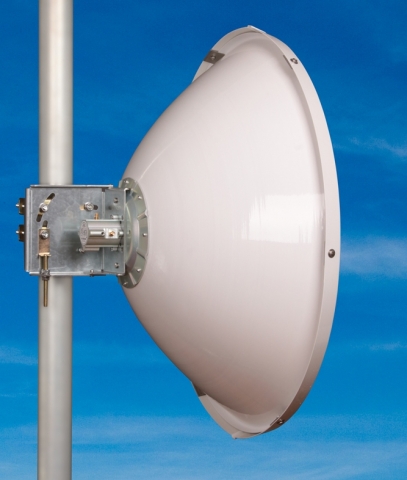

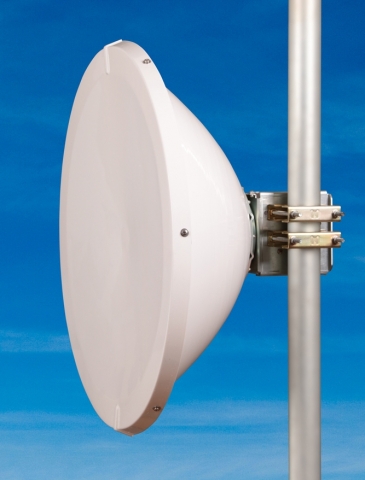

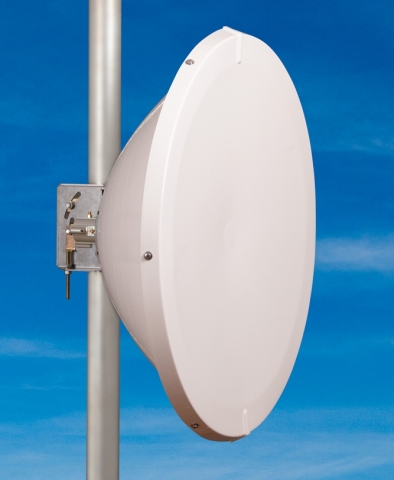

• Radome (plastic cover for the parabola) is included with the antenna at no extra cost

Technical Specifications:

• Frequency range: 4.9 – 6.4 GHz
• Gain: 29.0 ±1 dBi
• VSWR: 5.1 – 5.9 GHz 1.4
• Front-to-back ratio: 49 dB
• Beamwidth (-3 dB): 5.5°
• Polarization: linear, horizontal/vertical or 2×45°
• Connector isolation: 25 dB

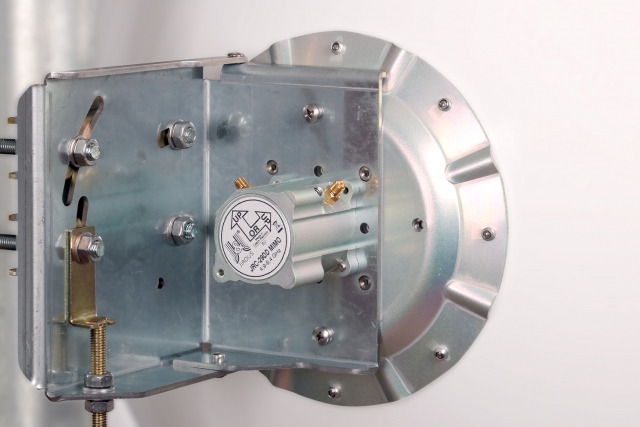

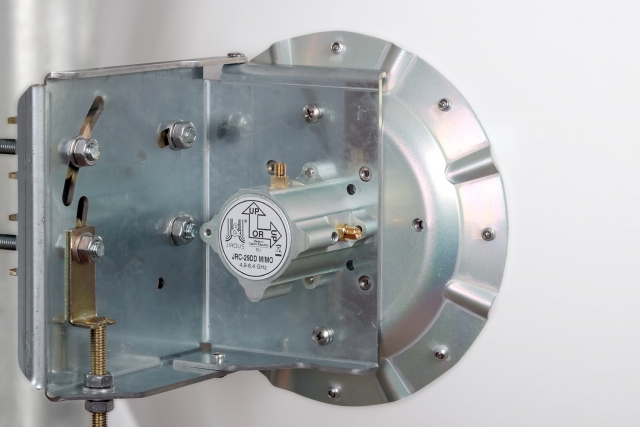

• Connectors: R-SMA
• Parabola: 680 mm diameter, aluminum alloy with baked-on finish
• Radome: UV-stabilized ABS
• Pole mount: O 40 – 120 mm, supports right or left mounting

The radiator is internally treated with high-frequency hydrophobic coating technology, which enhances moisture resistance.

Package:

• Sold as 1 assembled unit, mount included in a separate box
