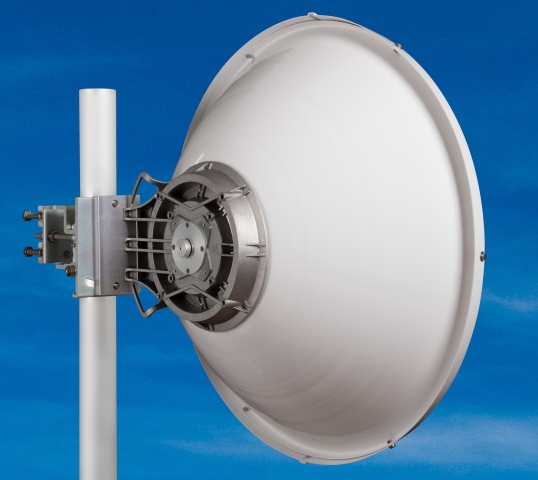

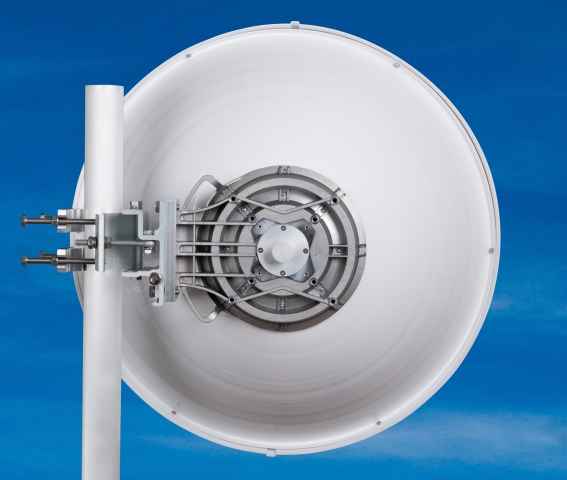

JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band

JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band
JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band
×
0/0
JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band
JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band
JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band
JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band
JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band
JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band
JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band
JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band

Your price excl. VAT
322.05 EUR
Your price incl. VAT (21%) 389.68 EUR
blank

stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Not in stock
Plzeňtrue
false
false
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Not in stock
Availability
at our branches
Manufacturer

Jirous
Code20246840
Part No.JRMC-680-80
Warranty 23 months
  • Related products1
Anti-icing spray WX2100
Anti-icing spray WX2100
WX2100

40.64 EUR excl. VAT
49.17 EUR incl. VAT

stiqtyfree:28
_17:
avail:2
infocode: stock
queu:
In Stock
Parameters
Download
GPSR

Product description

Description:

  • Deep parabolic antenna with high interference resistance and strong mechanical durability
  • High isolation between adjacent links

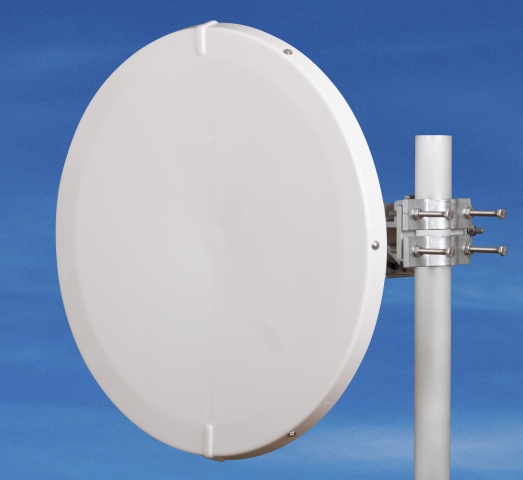

  • Radome included in the package

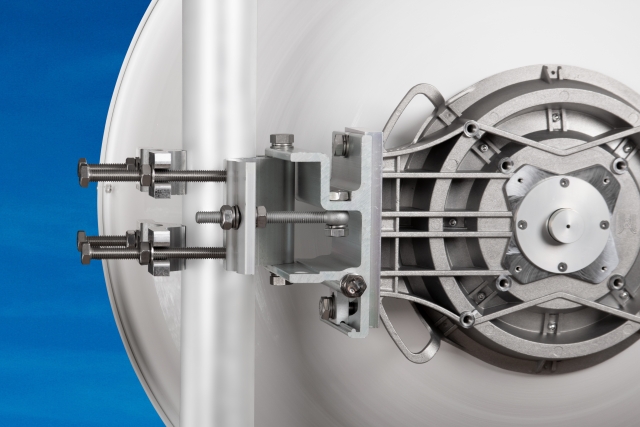

  • Heavy-duty JDMW-910 mount with extra fine elevation and azimuth adjustment
  • Supports both right and left mounting
  • Extreme wind resistance


    • Supported Radio Unit Interfaces:
  • Overview of compatible adapters for various units (must be ordered separately):
  • Racom – no adapter required
  • Ceragon, Cambium
  • Aviat
  • Mimosa B-11
  • Siklu
  • Ubiquiti AF-11
  • Remec, Wavelab, Zenith
  • Summit Development
  • Ericsson
  • SIAE
  • Alcoma
  • Other adapters available on request


    • Technical Specifications:
  • Frequency range: 71 – 86 GHz
  • Gain at lower frequency: 50.7 ± 1.4 dBi
  • Gain at upper frequency: 51.6 ± 1.4 dBi
  • Beamwidth (-3 dB): 0.4°
  • Front-to-back ratio: ? 67 dB
  • ETSI EN 302-217-4-2 v1.5.1: Class 3
  • US FCC: Cat. A
  • Polarization: Depends on radio unit installation; linear – horizontal and vertical
  • Reflector: 680 mm diameter – aluminum alloy, powder-coated
  • Radome: UV-stabilized plastic
  • Connection: 3.2 mm waveguide
  • Pole mount: O 40 – 120 mm
  • Operational wind speed: max. 180 km/h
  • Survival wind speed: max. 240 km/h

    • Download

    Datasheet

    GPSR

    Contact:
    Jirous, spol. s r.o.
    Nad Krocínkou 46 Prague 9190 00 Czech Republic
    kontakt@jirous.com

    Bussines information

    Discomp s.r.o., +420 377 221 177, sales@discomp.cz

    Technical parameters

    Wireless features

    Polarization: V or H
    Frequency range [MHz]: 71000 - 86000
    Antenna gain [dBi]: 51

    Physical characteristics

    Designed for mast diameter [mm]: 40 up to 120
    Wind load [km/h]: 240
    Radom: Yes
    Material: Aluminum alloy
    Weight [g]: 5200
    Width [mm]: 800
    Height [mm]: 800
    Depth [mm]: 350
