Komshine QX43-S1 FTTx-OTDR - Fiber-optic Network Tester

+7 more

Komshine QX43-S1 FTTx-OTDR - Fiber-optic Network Tester

0/0

Your price excl. VAT

390.71 EUR

Recycling fee	0.21 EUR
Your price with RF	390.92 EUR
Your price incl. VAT (21%)	473.01 EUR
blank

stiqtyfree:1
_17:
avail:2
infocode: stock
queu:
In Stock

Plzeňtrue
true
false
stiqtyfree:1
_17:
avail:2
infocode: stock
queu:
In Stock

Availability
at our branches

Manufacturer
Code	20247378
Part No.	QX43-S1
Warranty	36 months

Compare Have a question? Suggest a change

Parameters

Download

Video

GPSR

Product description

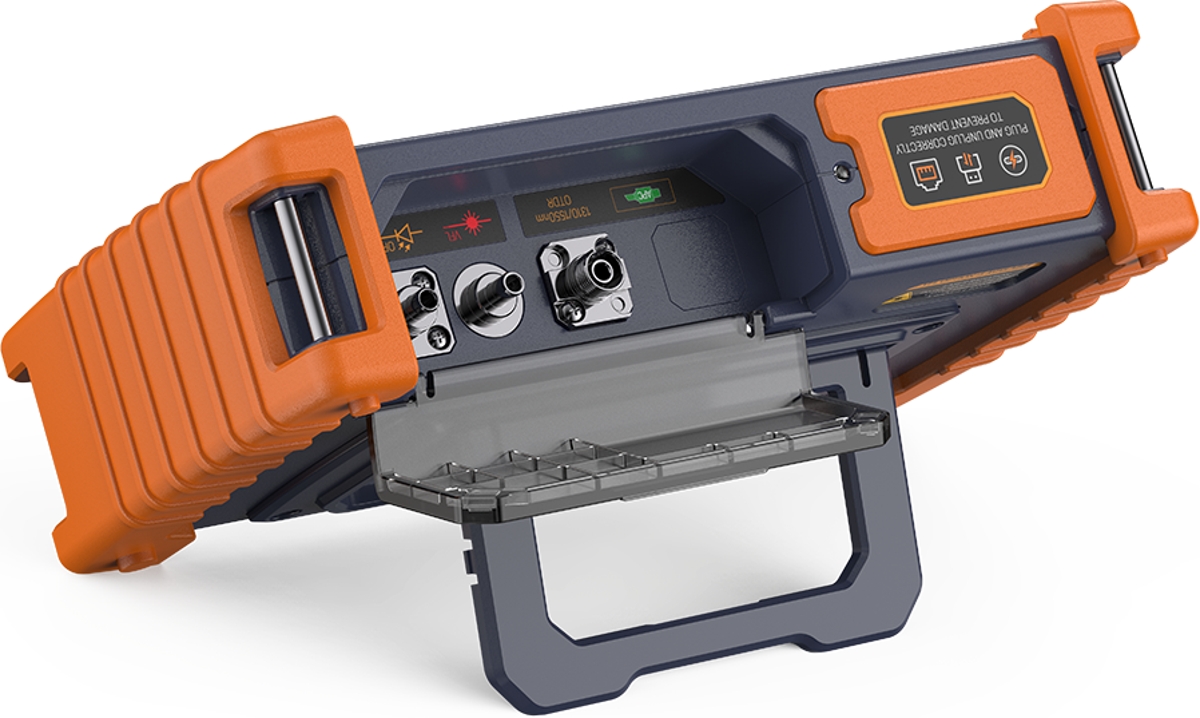

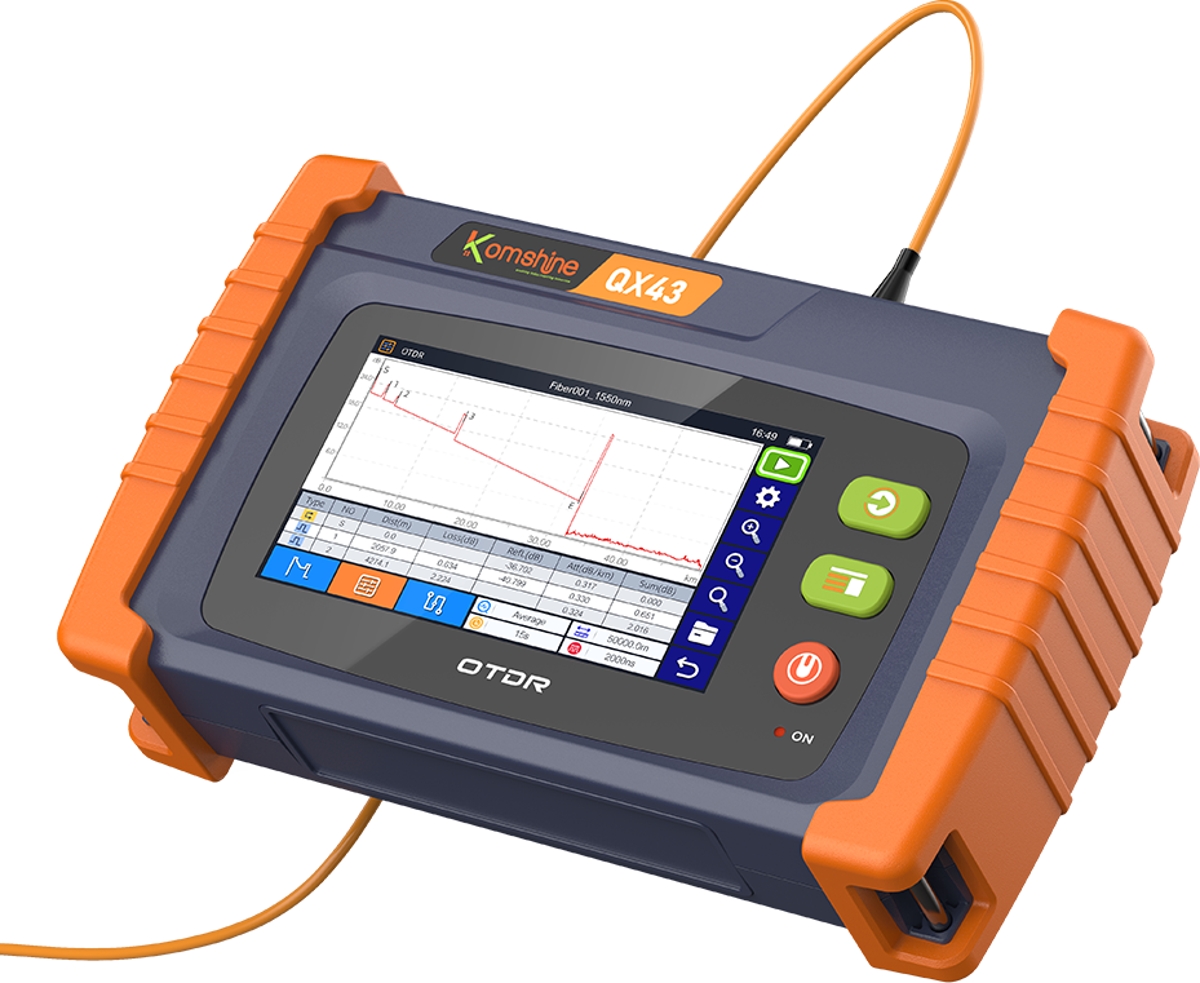

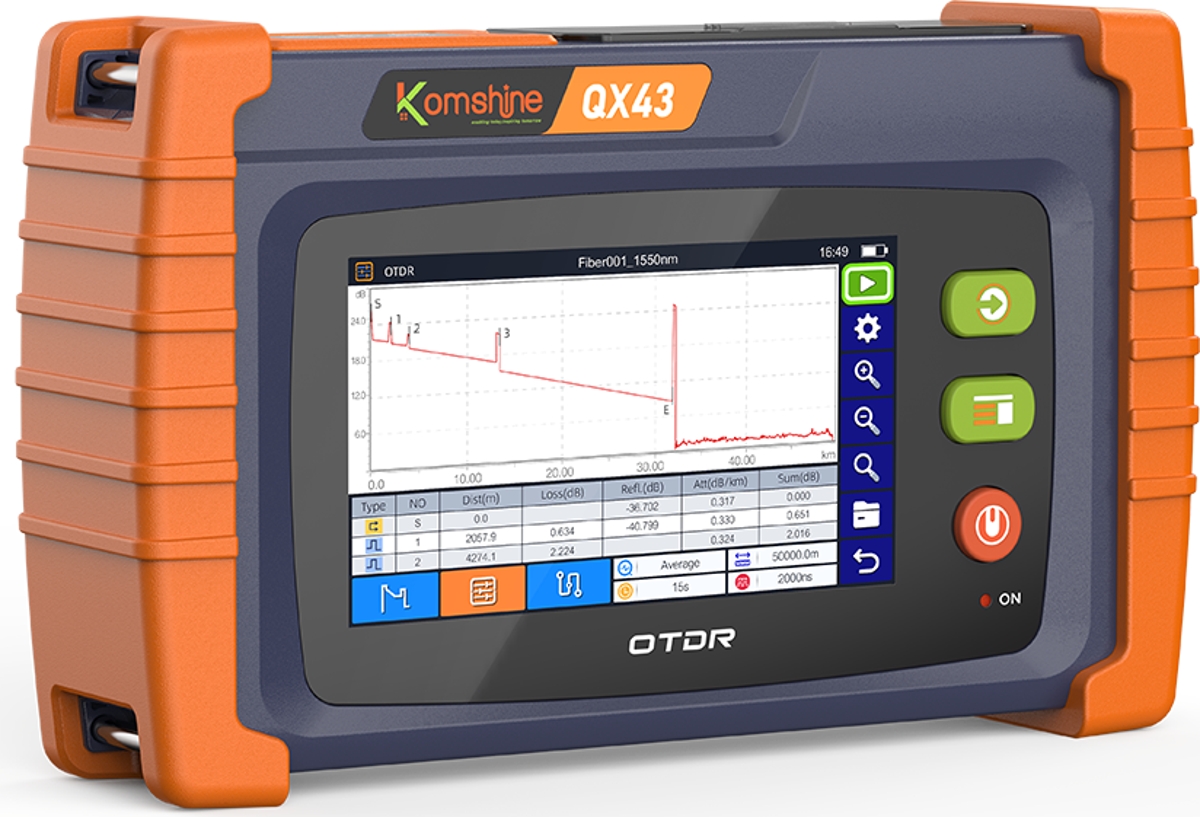

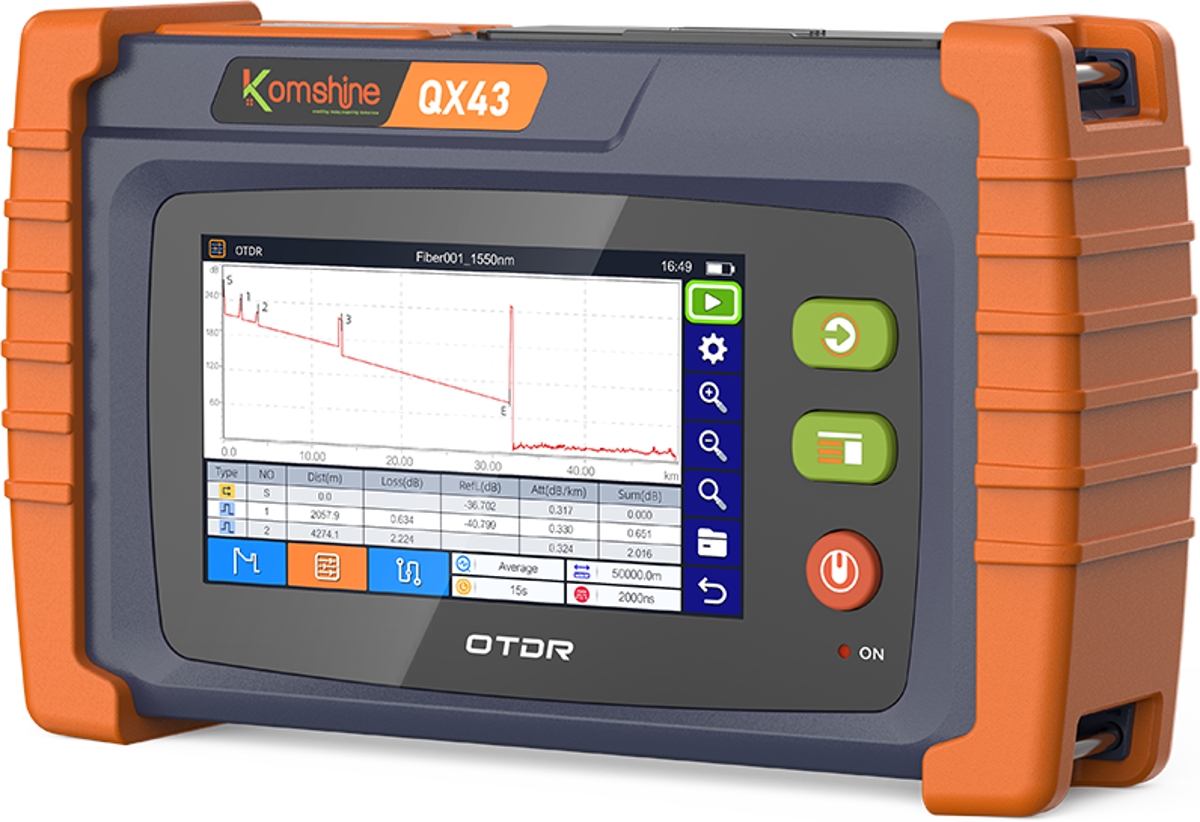

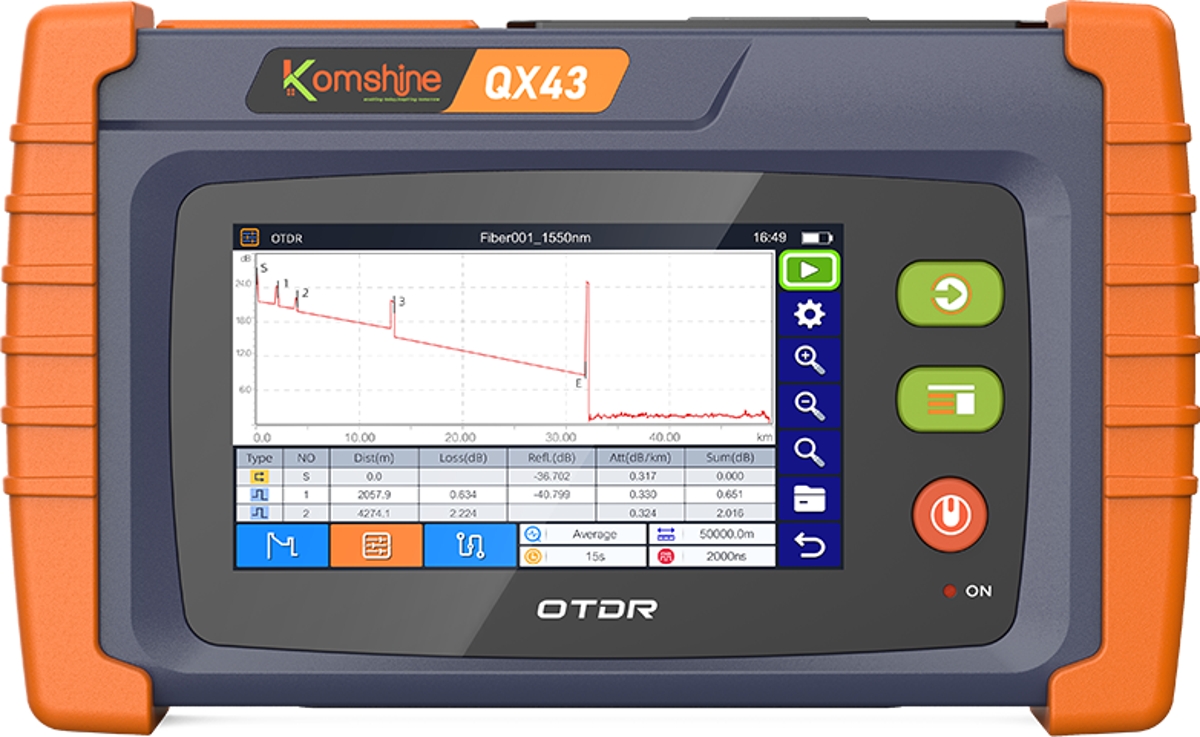

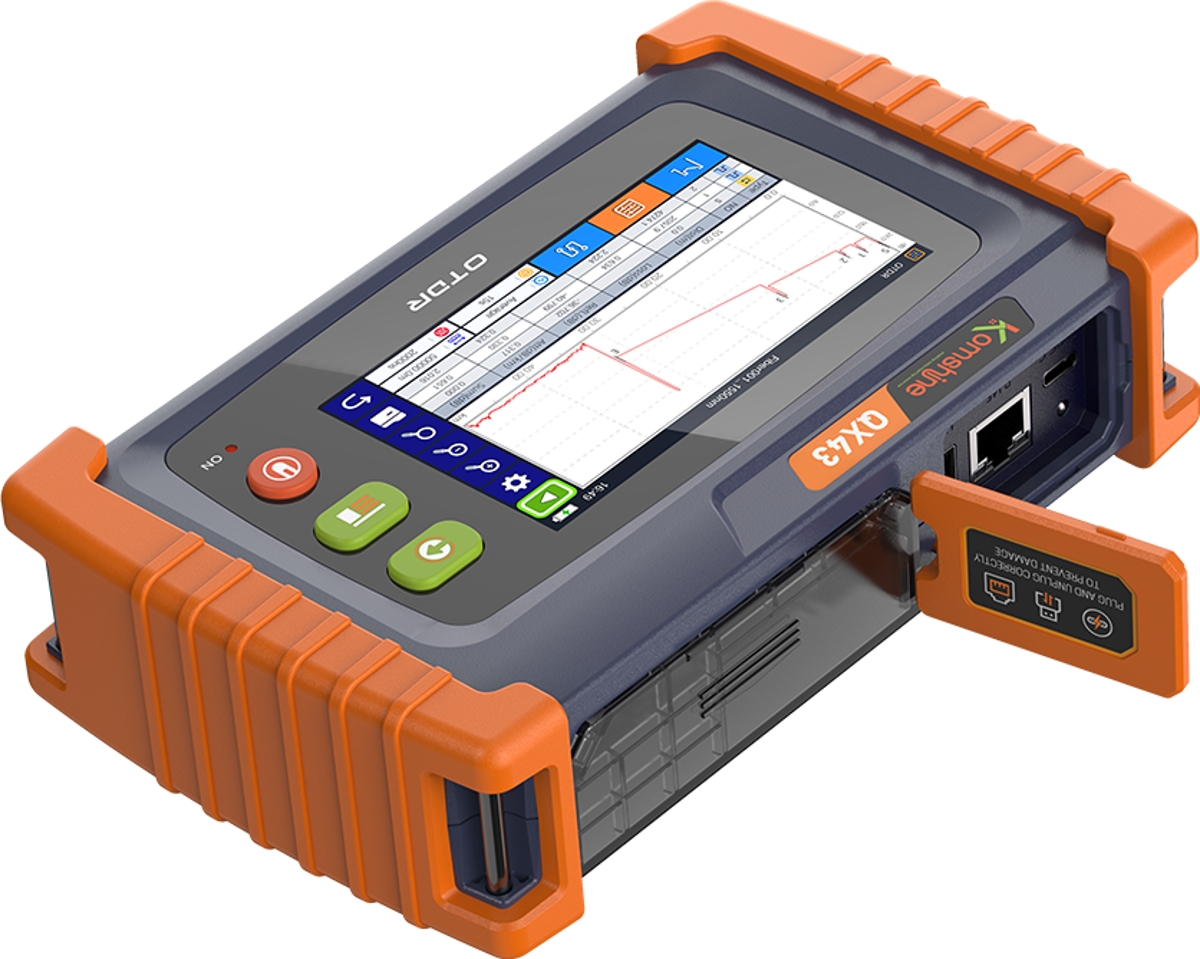

The Komshine QX43-S1 is a compact universal measuring tool at an unbeatable price. You always have all the equipment you need at your fingertips - the ideal addition for any technician on the road. It supports FC, ST and SC optical connectors (ST and SC via adapter). Operation is intuitive, combining a touchscreen display and three buttons. Measurement results can be saved as SOR files. One-click measurement simplifies testing. Integrated flashlight for convenient cable inspection in dim environments. It has a large-capacity 6000mAh battery, charged via USB-C, and the whole device only weighs 600g in total.

Key features

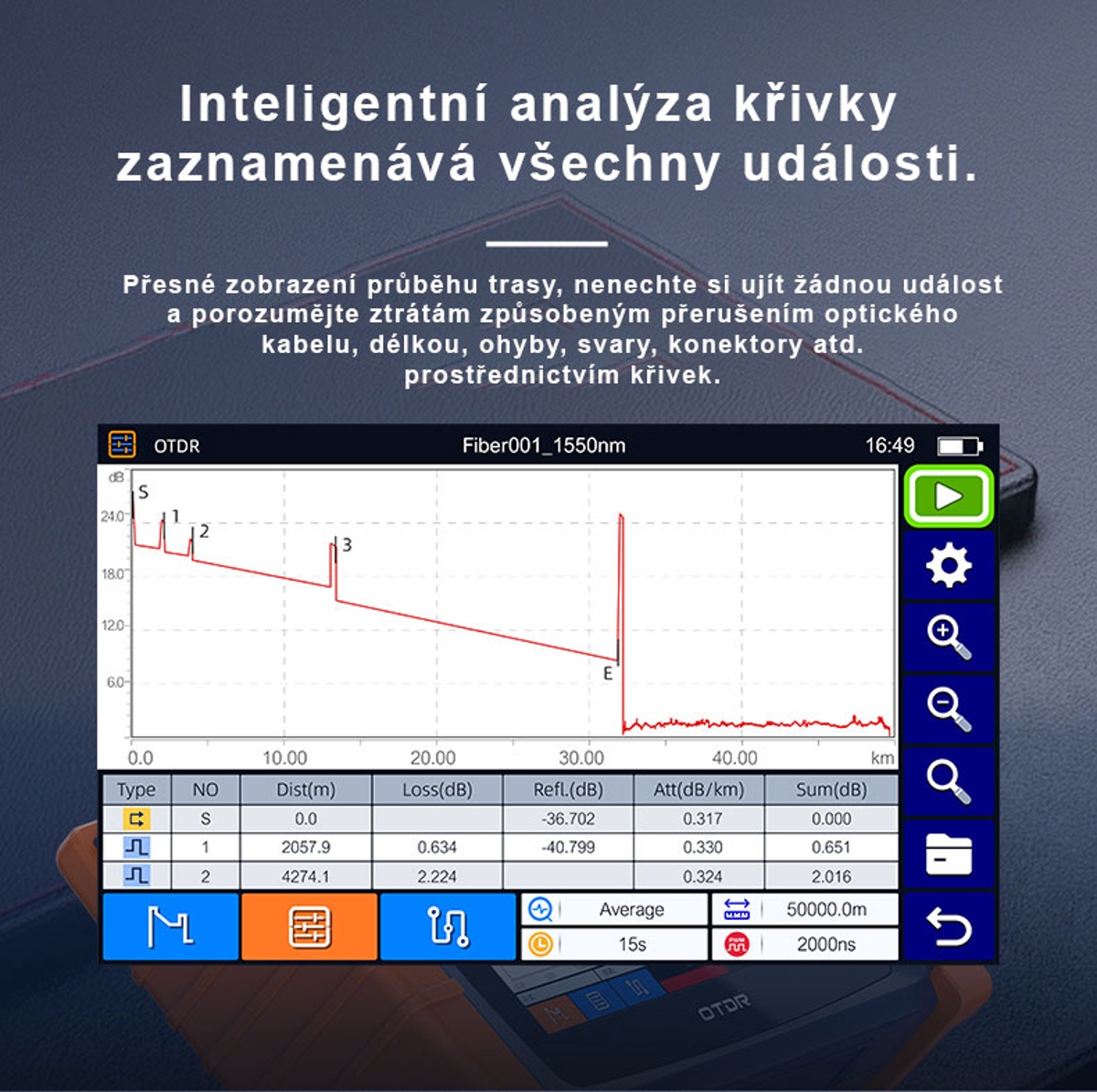

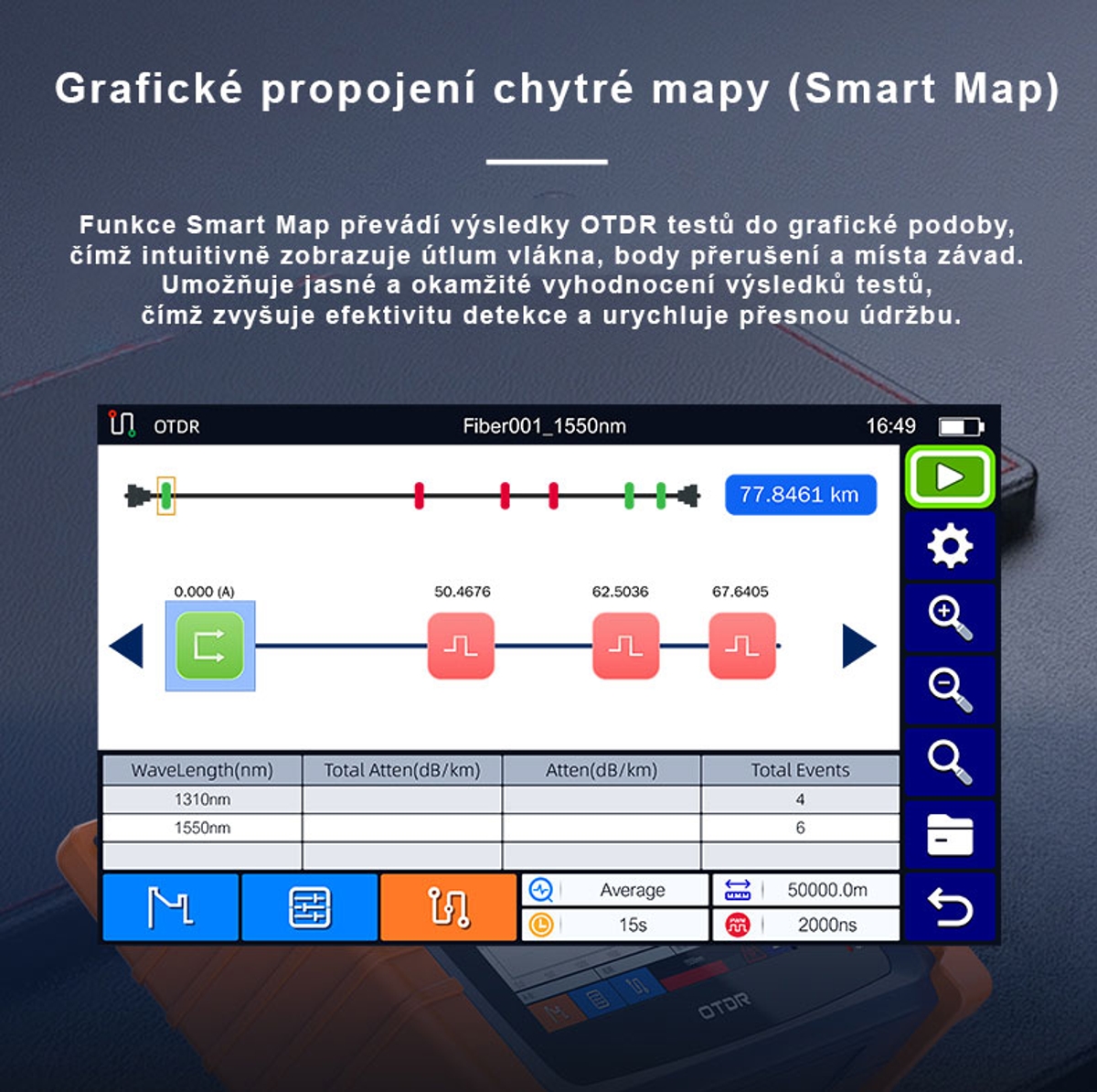

OTDR - measurement of optical route parameters (26/24 dB, 1310/1550 nm)
VFL - visual fault locator
OPM - optical power meter module
SLS - stable light source module
RJ45 - network testing

Parametry

OTDR
Wavelength (nm)	1310/1550±20
Dynamic range (dB)	26/24
Event blind spot (m)	< 1.5
Attenuation blind zone (m)	< 5
Number of fiber interfaces	1x FC/UPC
Applicable optical fiber	SM
Range (Km)	0.5, 1, 2, 5, 10, 20, 35, 50, 75, 100, 150
Distance accuracy (m)	± (1m + measurement distance × 2 × 10^-5 + collection point resolution)
Number of sampling points	5, 10, 20, 50, 100, 200, 500, 1000, 2000, 10000, 20000
Pulse width (ns)	> 15000
Sampling resolution (m)	0.04
Loss accuracy	± 0.03 dB/dB
Reflection accuracy	± 2 dB

OPM - optical power meter module
Measurement wavelength range	800~1650nm
Correction wavelength(nm)	850, 1300, 1310, 1490, 1550, 1625, 1650
Measurement power range	-70~6dBm
Measurement accuracy	<(±0.2dB or ±5%)
Display resolution	0.01dB
Power meter interface	FC/UPC + 2.5 mm Universal Connector

SLS - stable light source module
Wavelength (nm)	1310/1550
Output power	>-10dBm
Modulation frequency	CW, 270Hz, 1kHz, 2kHz
Laser safety rating	Class 1M or Class 1
Built-in optical fiber interface	OTDR optical port

VFL - red light source module
Wavelength (nm)	650
Output power	10mW
Modulation mode	CW, CHOP (2 Hz)
Laser safety rating	Class 3R
Optical fiber interface	2.5 mm universal connector for FC, SC, ST

RJ45 - network testing module
Applicable network cable	CAT5, CAT6
Alignment length	300m
Maximum audio transmission distance	300m

Download

Datasheet Uživatelská příručka

GPSR

Contact:
AIRCOM Praha s.r.o.
K nádraží 413, 190 15 Praha 9 – Satalice
info@wifihw.cz

Bussines information

Luděk Merta, +420 722 926 224 , ludek.merta@discomp.cz

Technical parameters

Optics

Fiber type: Single Mode

Wavelength - Tx/Rx [nm]: 1310 / 1550

Distance [km]: 150

Polishing type: UPC


Display resolution: 800 x 480

Connectors and Interfaces

Touchscreen: Yes

Optical Connectors: (1) FC

USB ports 2.0: 1

Power

Battery capacity [mAh]: 6000

Power type: USB-C

Integrated battery: Yes

Physical characteristics

Operating temperature [°C]: -10 up to 50

Weight [g]: 600

Width [mm]: 179

Height [mm]: 112

Depth [mm]: 48
