MaxLink 10G SFP+ optical HP modul, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDM, H3C komp.
MaxLink 10G SFP+ optical HP modul, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDM, H3C komp.
×
0/0
New product
Your price excl. VAT
18.61 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 18.68 EUR |
| Your price incl. VAT (21%) | 22.60 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MaxLink |
|
|---|---|---|
| Code | 10981778 | |
| Part No. | ML-S+2733-10-H3C | |
| Warranty | 36 months | |
You have a choice of 2 variantscompare all
H3C, 10km
ML-S+2733-10-H3C
18.61 EUR
ML-S+3327-10-H3C
19.67 EUR excl. VAT
23.89 EUR incl. VAT
stiqtyfree:10
_17:
avail:2
infocode: stock
queu:
In Stock
Parameters
GPSR
Technical parameters
Optics
Format:
SFP+
For cable type:
Single Mode
Transmission speed:
10 Gbps
Wavelength - Tx/Rx [nm]:
1270 / 1330
Distance [km]:
10
Transfer type:
WDM
Polishing type:
UPC
Tx power [dBm]:
-6.5 up to 2
Receiver sensitivity [dBm]:
-14,4
Connectors and Interfaces
Optical Connectors:
(1) LC
Physical characteristics
Operating temperature [°C]:
0 up to 70
General
Compatibility:
H3C
Software
DDMI - diagnostics:
Yes
Product description

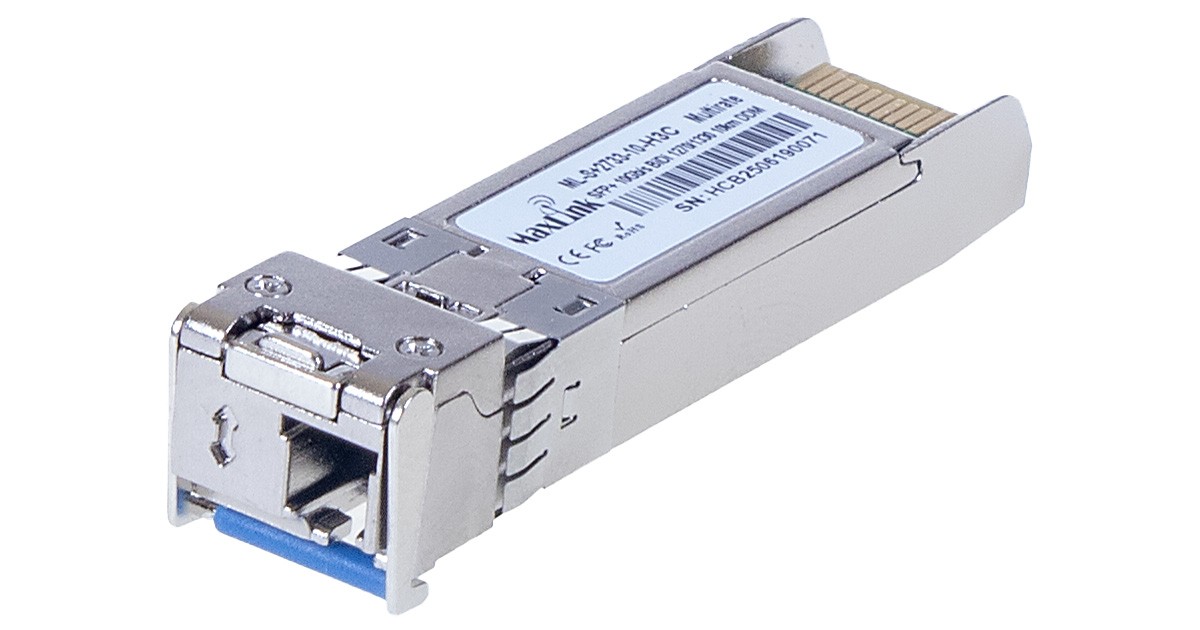

Maxlink ML-S+2733-10-H3C is a 10G SFP+ WDM module with a Tx 1270 / Rx 1330 wavelength, a single LC connector, and a maximum transmission distance of 10km over single-mode optical fiber. The SFP+ module supports monitoring (DDM).
The LC connector in the SFP+ module uses UPC polishing.
H3C Compatibility
The modules are compatible with 3Com/HP/H3C A-series switches (A5120/5500/5800/5900/7500/10500 and others), as well as with H3C S-series switches.
