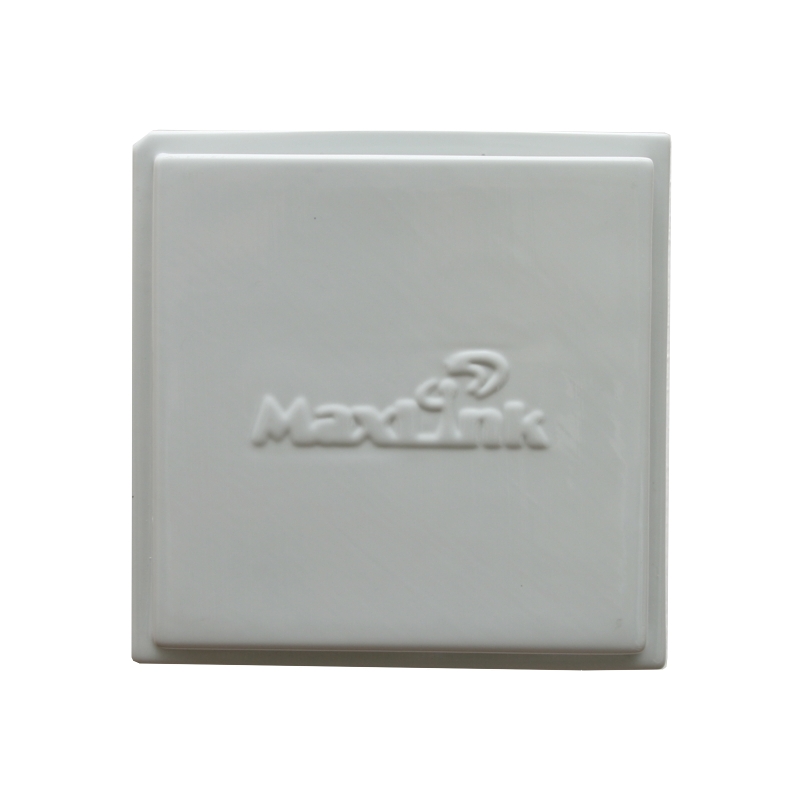

MaxLink panel antenna 15dBi 2,4GHz, N female

We are sorry, this product is no longer in our offer.

MaxLink panel antenna 15dBi 2,4GHz, N female
MaxLink panel antenna 15dBi 2,4GHz, N female
×
0/0
MaxLink panel antenna 15dBi 2,4GHz, N female
MaxLink panel antenna 15dBi 2,4GHz, N female

Manufacturer

MaxLink

Code10110005
Part No.01-PA-M15
Parameters

Product description

The new professional panel antenna for the range of 2.4 GHz with a gain of 15 dBi. The heart of the antenna is made of LF HAL PCB board which is 1 mm thick. The cover is made of 1.5 mm thick high-quality UV stable ABS plastic. For bonding and sealing the antenna was used a professional adhesive and sealing mastic made by Würth. 1.5 mm thick aluminium sheet is used as a counterweight and back to the antenna to achieve the lowest possible weight. The antenna holder is made of galvanized steel sheet with a thickness of 2 mm for maximum strength, at the same time allows the antenna to rotate in the range of 45 ° in the vertical direction.

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Wireless features

MIMO, SISO: 1 x 1
Polarization: V or H
VSWR: < 1,8
F/B ratio [dB]: 25
Wireless frequency: 2.4 GHz
Elevation beam width (-6dB) [°]: 35
Azimuth beam width (-6dB) [°]: 35
Antenna type: Directional
Antenna gain [dBi]: 15

Connectors and Interfaces

RF connectors: (1) N female

Physical characteristics

Antenna design: Panel
Designed for mast diameter [mm]: 28 up to 60
Purpose: Outdoor
Material: Aluminum, UV stabilized ABS plastic
Weight [kg]: 0,3
Width [mm]: 168
Height [mm]: 168
Depth [mm]: 25

×
