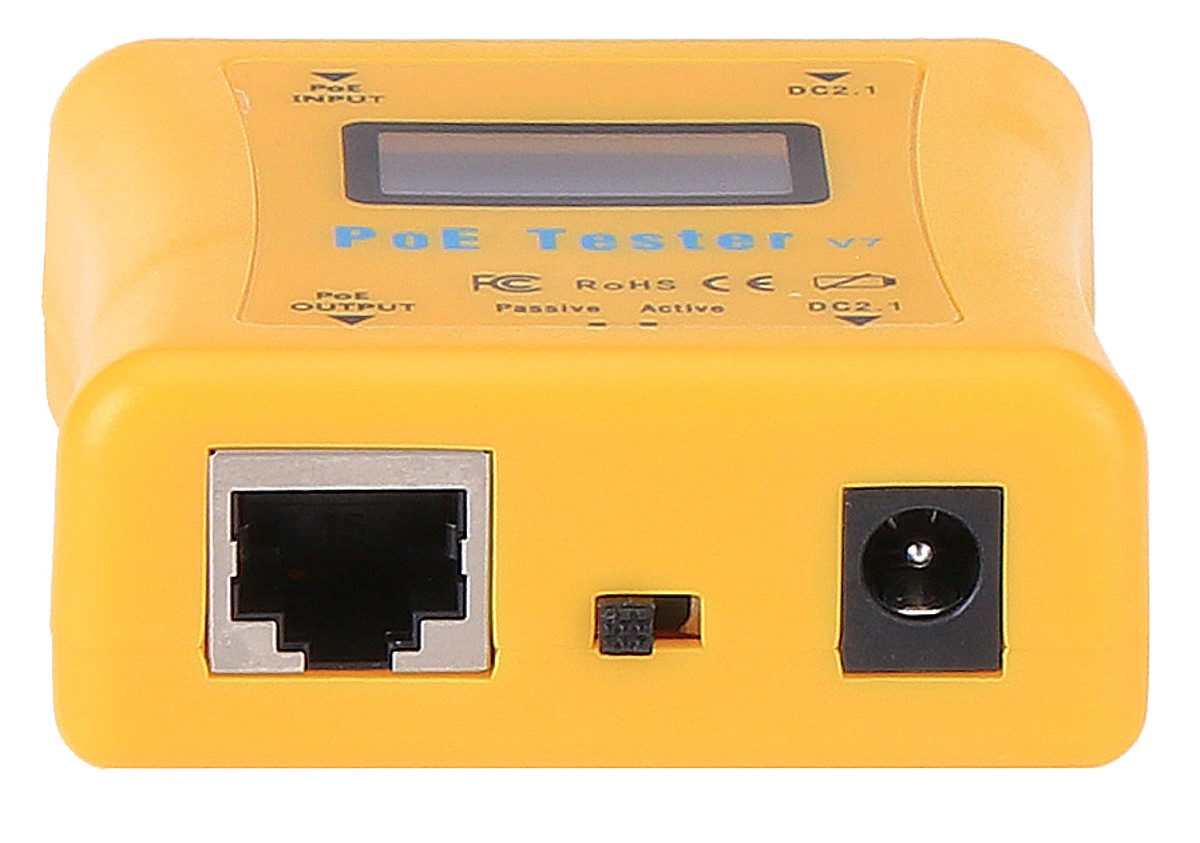

Maxlink POE-T-G2 PoE tester for UTP cables

Product description

Practical pocket tester used for detection and measurement of values when powering over Ethernet cables - PoE. It allows measurement of voltage, current, powered pairs, detection of active 802.3af/at standard, passive PoE and testing of power adapters (7-56 V).

Features

• Determine the required power values of the connected active elements
• Check the available power values at the remote end of the connected active element

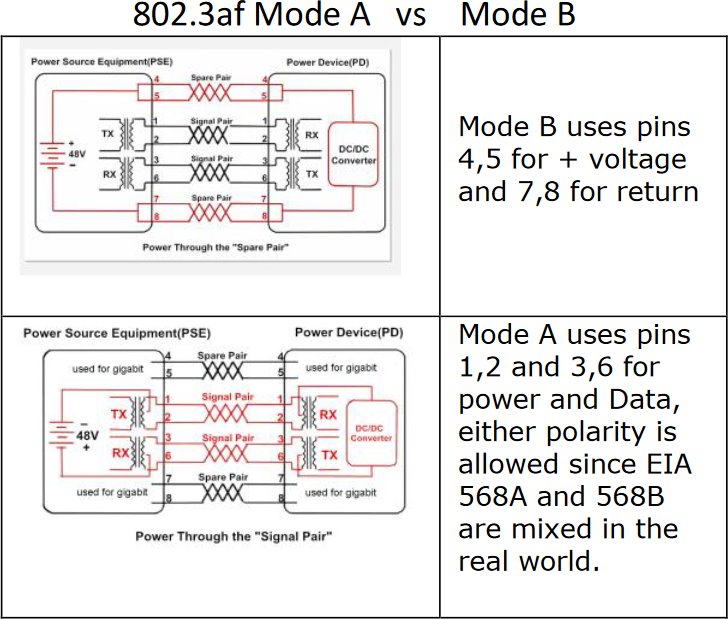

• Display of 4 - 56V power supply values in Mode A and B (A: pairs 1.2 + 3.6; B: pairs 4.5 + 7.8)
• Detect power outages on Ethernet cables
• Determining the value of the DC voltage at the input 3.5 - 57 V
• Using the 2.1mm jack input to determine current up to 5 A and voltage in 24, 48 and 56 V installations
• Cable reducer (male - male) 2.1mm/2.1mm included tester
• High brightness LED display

Current values

Mode A/Mode B: 0-1500 mA (2% accuracy above 5 mA); DC connector: 0-5 A (2% accuracy above 5 mA)

Display Limits

Up to 280 W with 56V/5A power supply

Power range

PoE: 4 - 56 V; DC: 3.5 - 57 V

Battery-free operation

Power supply via PoE input (minimum 4 mA input requirement)
