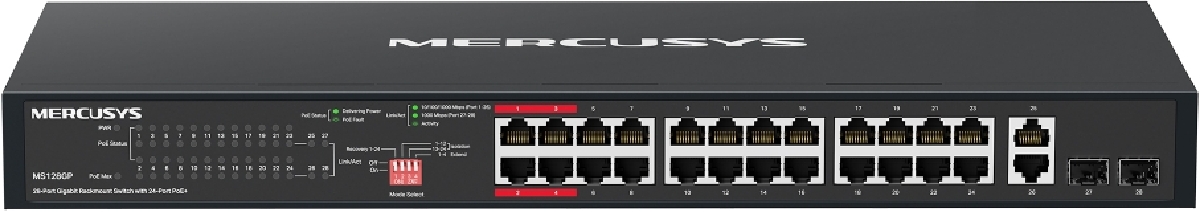

MERCUSYS MS128GP, Gbit PoE switch

Product description

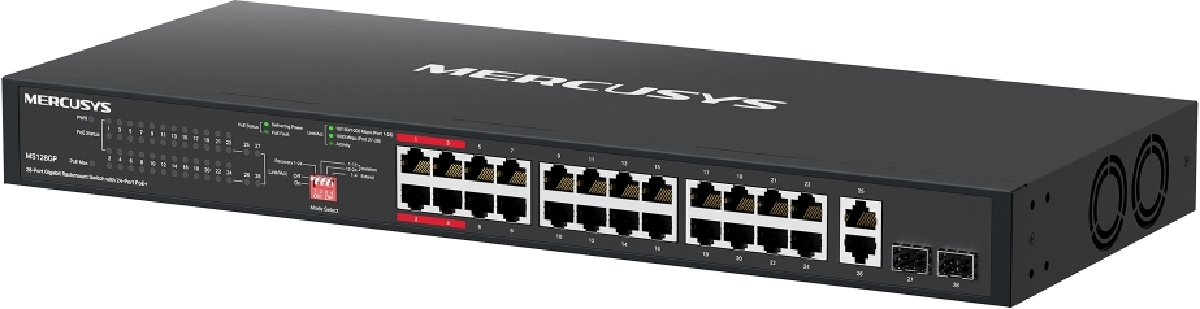

The MERCUSYS MS128GP is an unmanaged Gigabit PoE switch with a switching capacity of 56Gbps, (24) 1Gbit PoE+ ports, (2) 1Gbit ports and (2) SFP slots with a total PoE budget of 295W. The maximum device power consumption is 42W (without PoE load).

Key features

• (24) 1Gbit PoE+ ports, (2) 1Gbit ports and (2) SFP slots

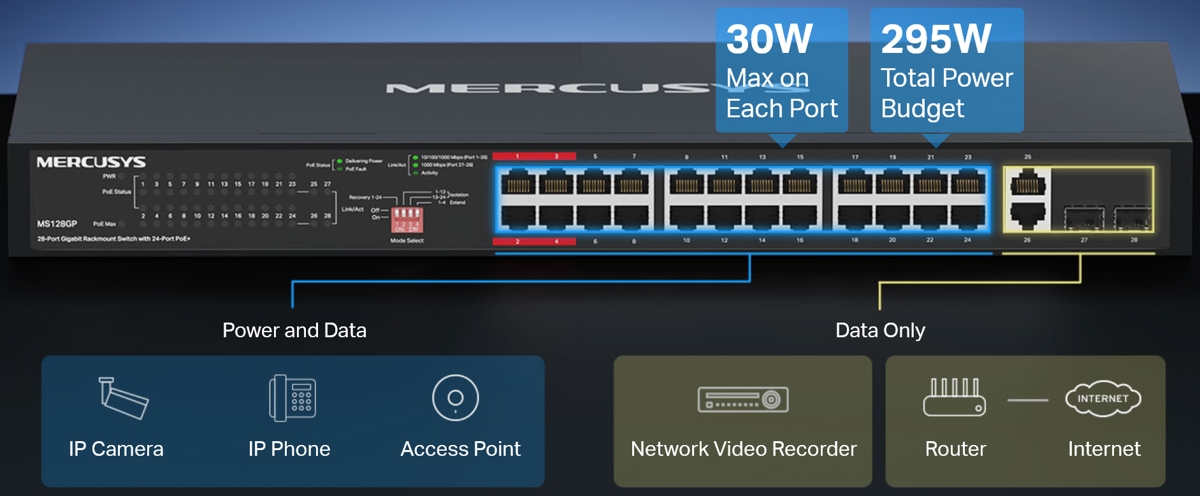

• Ports 1–24 support PoE+ 802.3af/at with power output of up to 30W/port and a total budget of 295W

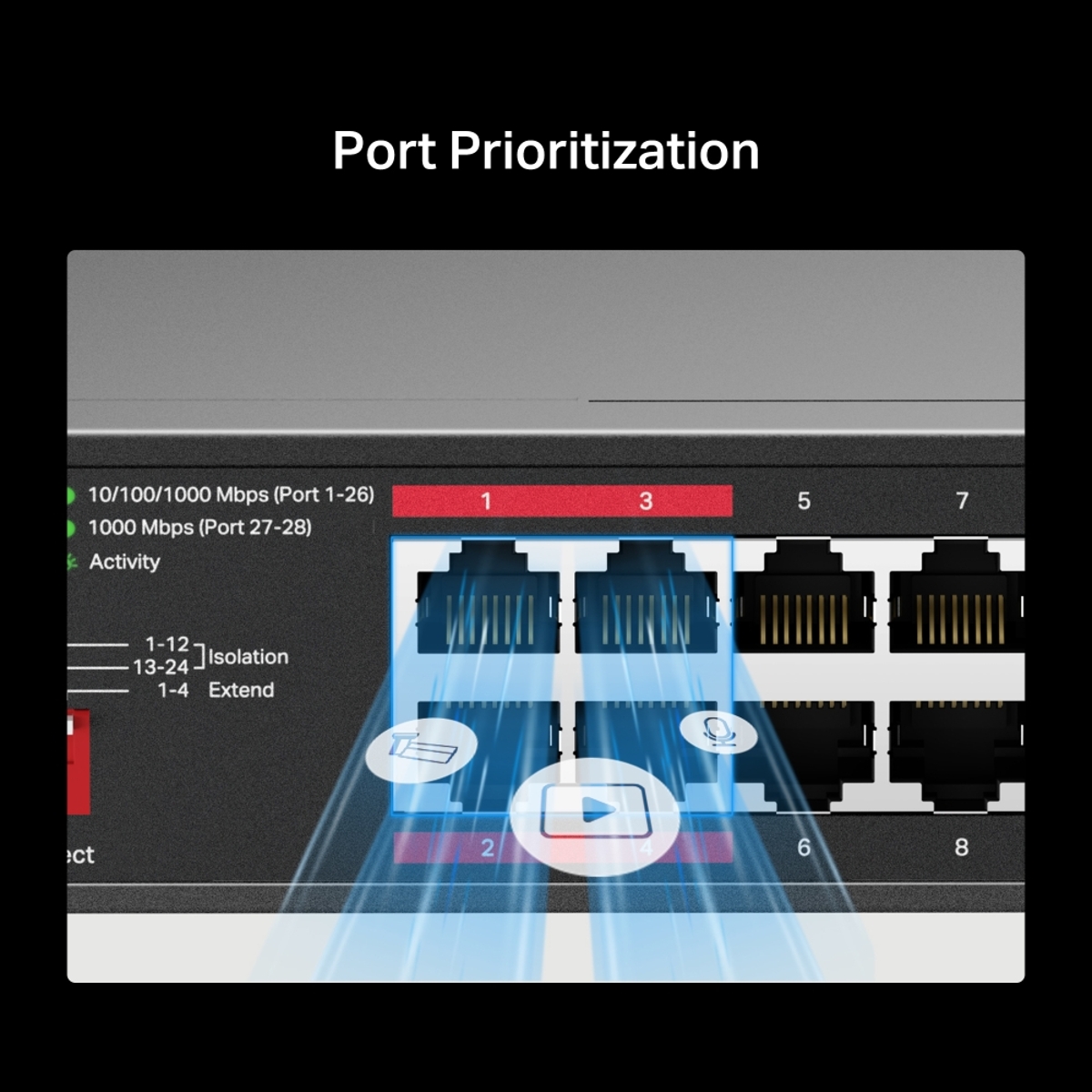

• Priority ports - traffic prioritization for ports 1-4
• DIP switch modes:

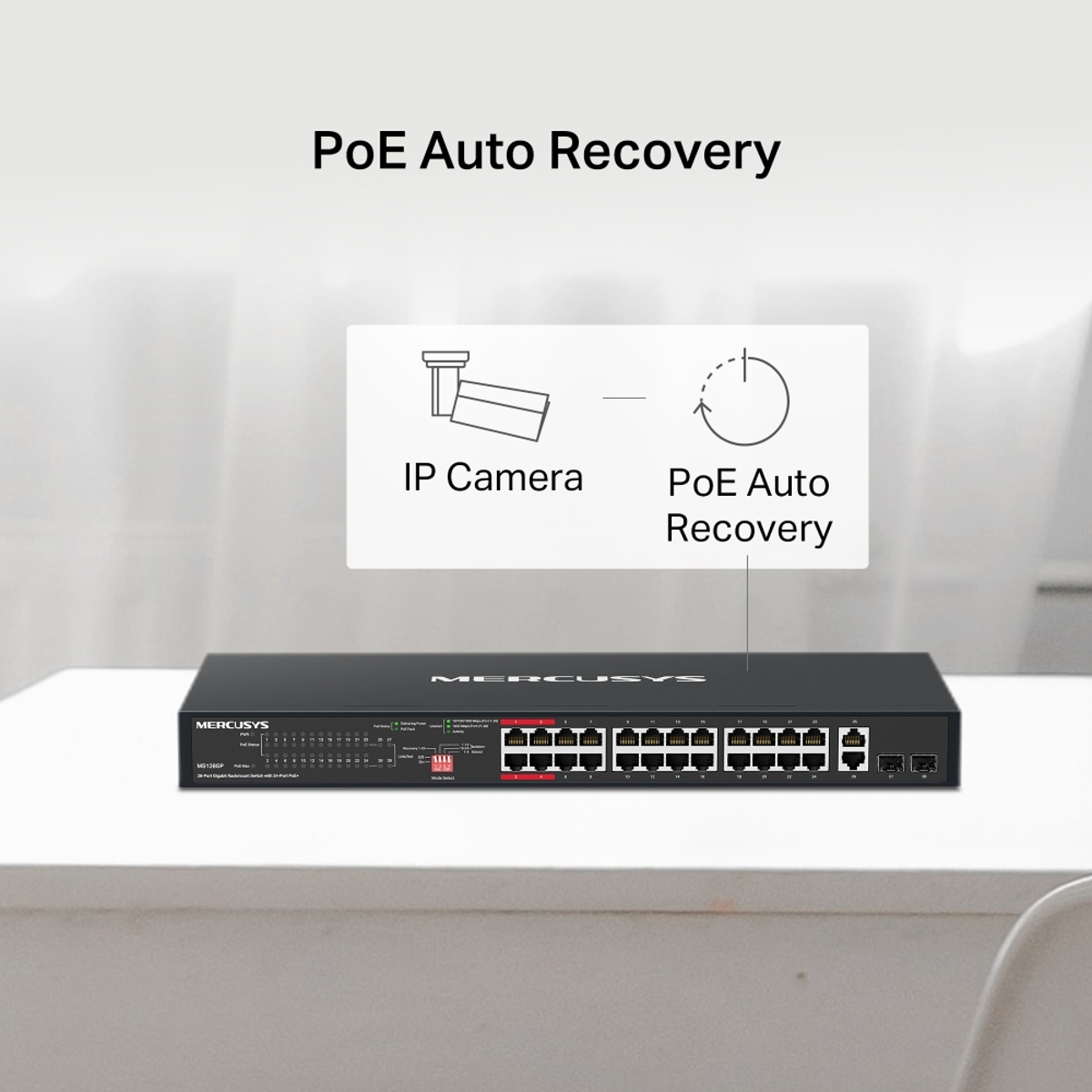

  1. PoE Auto Recovery - automatically reboots dropped or unresponsive PoE-powered devices

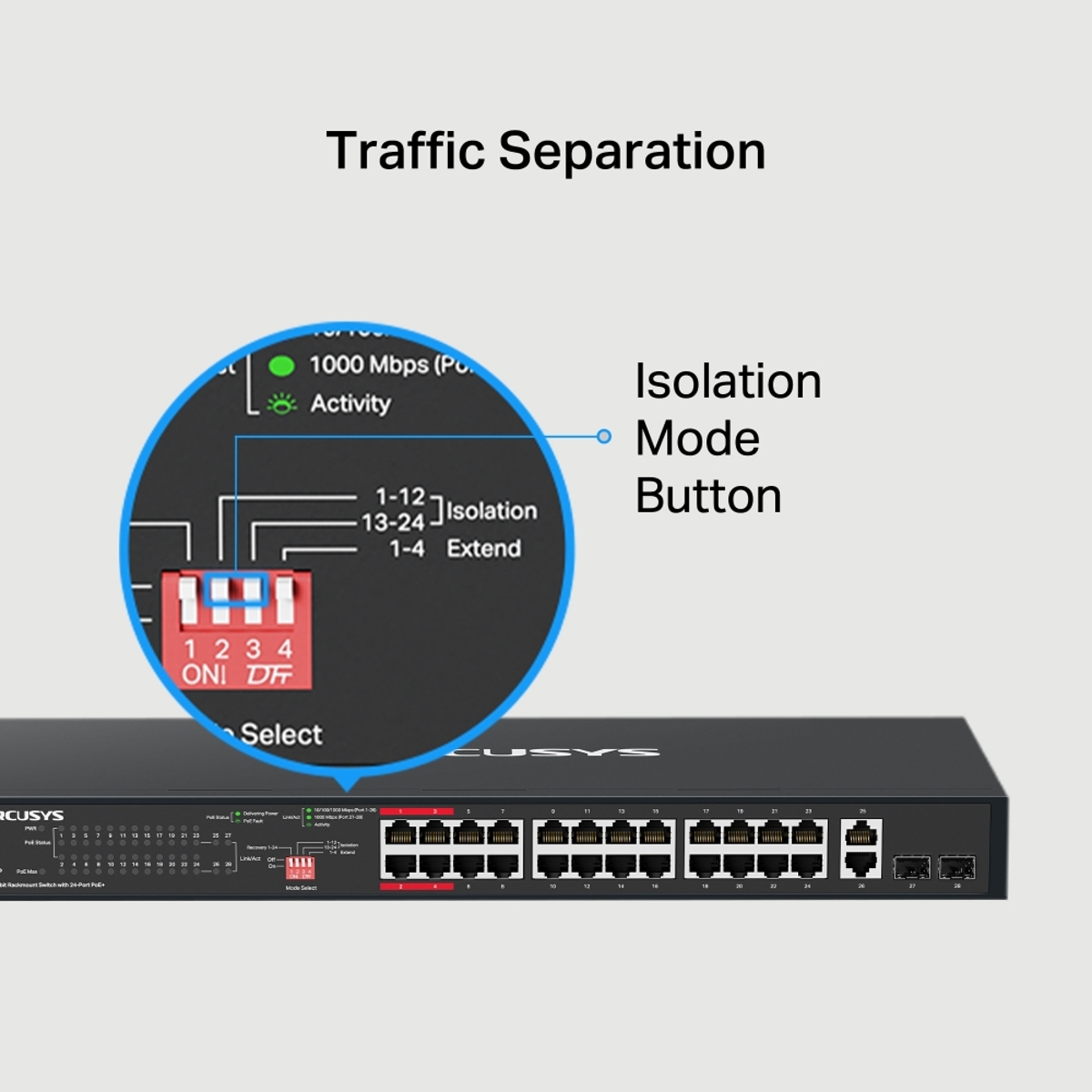

  2. Isolation 1-12 - downlink ports 1–12 can forward traffic only to the uplink port
  3. Isolation 13-24 - downlink ports 13-24 can forward traffic only to the uplink port

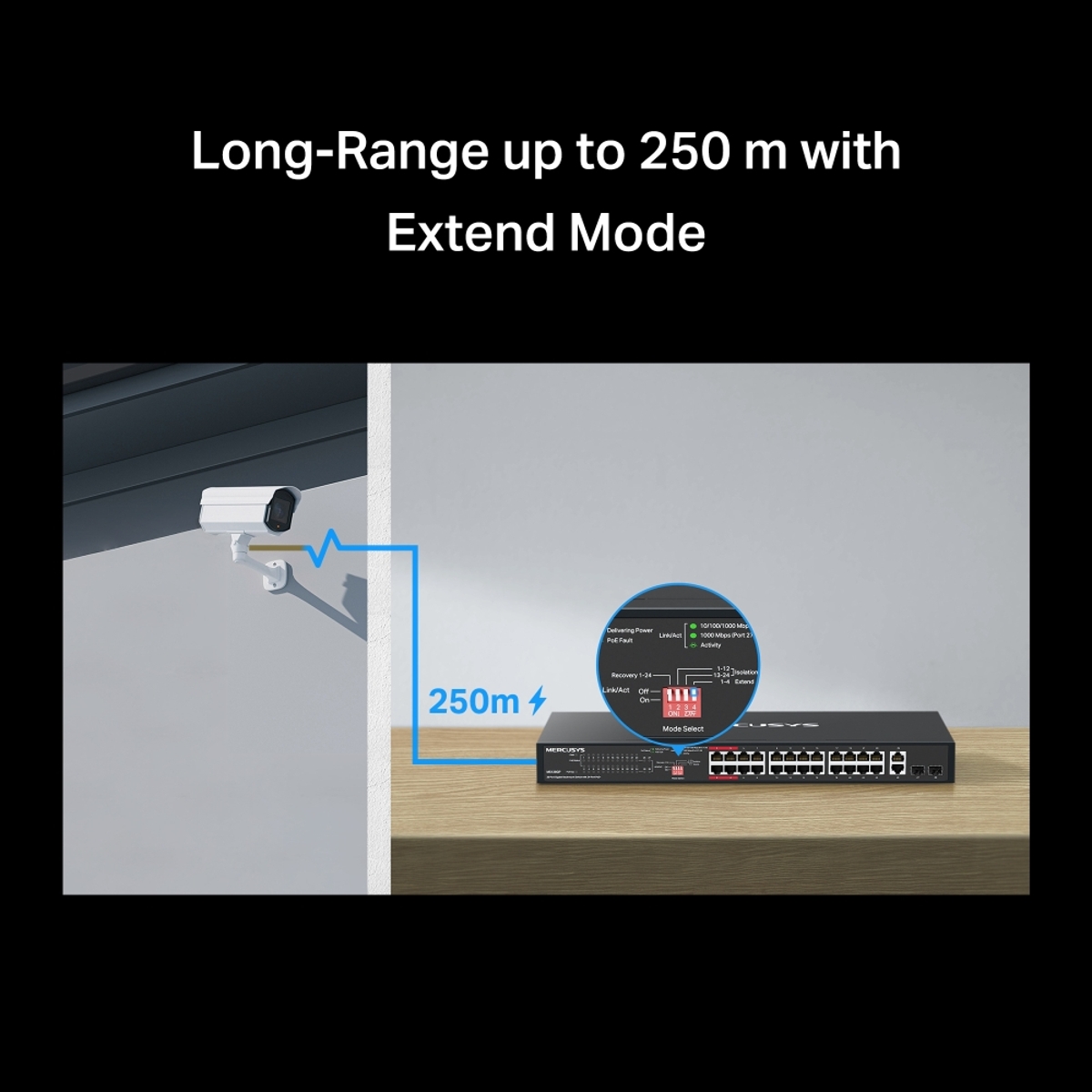

  4. Extend - increases PoE transmission distance up to 250m at 10Mbps on ports 1-4

Package contents

• Device
• Power cable
• Mounting brackets and fittings
• Installation Guide
