MikroTik ATL 5G R16
MikroTik ATL 5G R16
×
0/0
New product
Your price excl. VAT
254.79 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 254.86 EUR |
| Your price incl. VAT (21%) | 308.38 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10920017 | |
| Part No. | ATLGM&RG520F-EU | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.70 EUR excl. VAT
4.48 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
5G (GSM)
Type of antenna:
Built-in
Antenna gain [dBi]:
16
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (28) 700 MHz, (32) 1500 MHz
5G bands support:
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz
Connectors and Interfaces
M.2 slots:
1
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
SIM slot:
Yes
SIM slots quantity:
1
Power
Power over Ethernet:
802.3af, 802.3at, 12 .. 56V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
10
Physical characteristics
Protection class:
IP66
Design:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Width [mm]:
311
Height [mm]:
311
Depth [mm]:
179
Hardware
CPU:
88F3720
CPU frequency [MHz]:
800
CPU cores:
2
Internal storage [MB]:
32
RAM [MB]:
512
Software
Operating mode:
Cellular router
Operating system:
RouterOS v7 - L3
IPv6 support:
Yes
Default login and password:
admin / (preset password, see label/engraving)
Product description

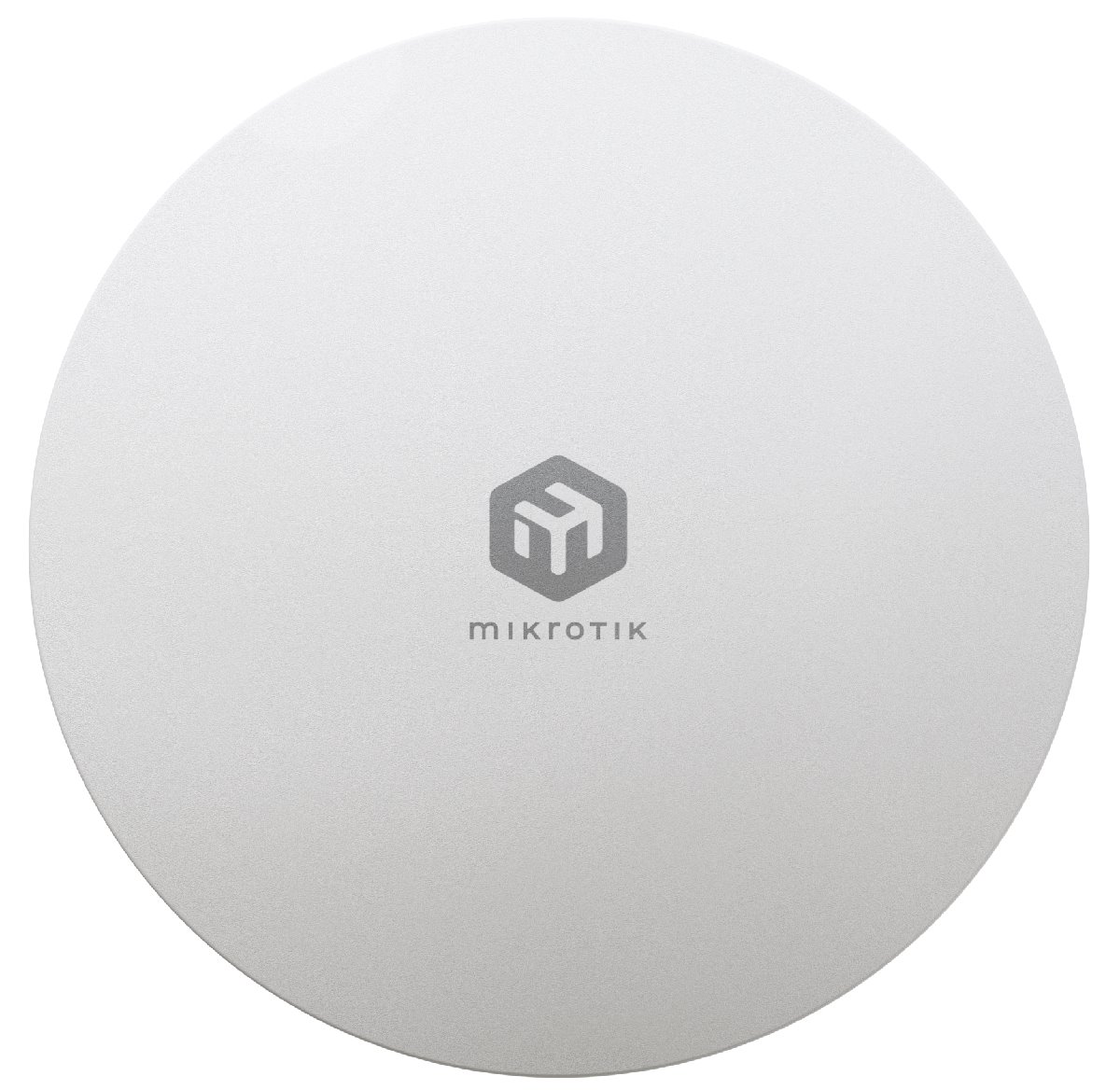

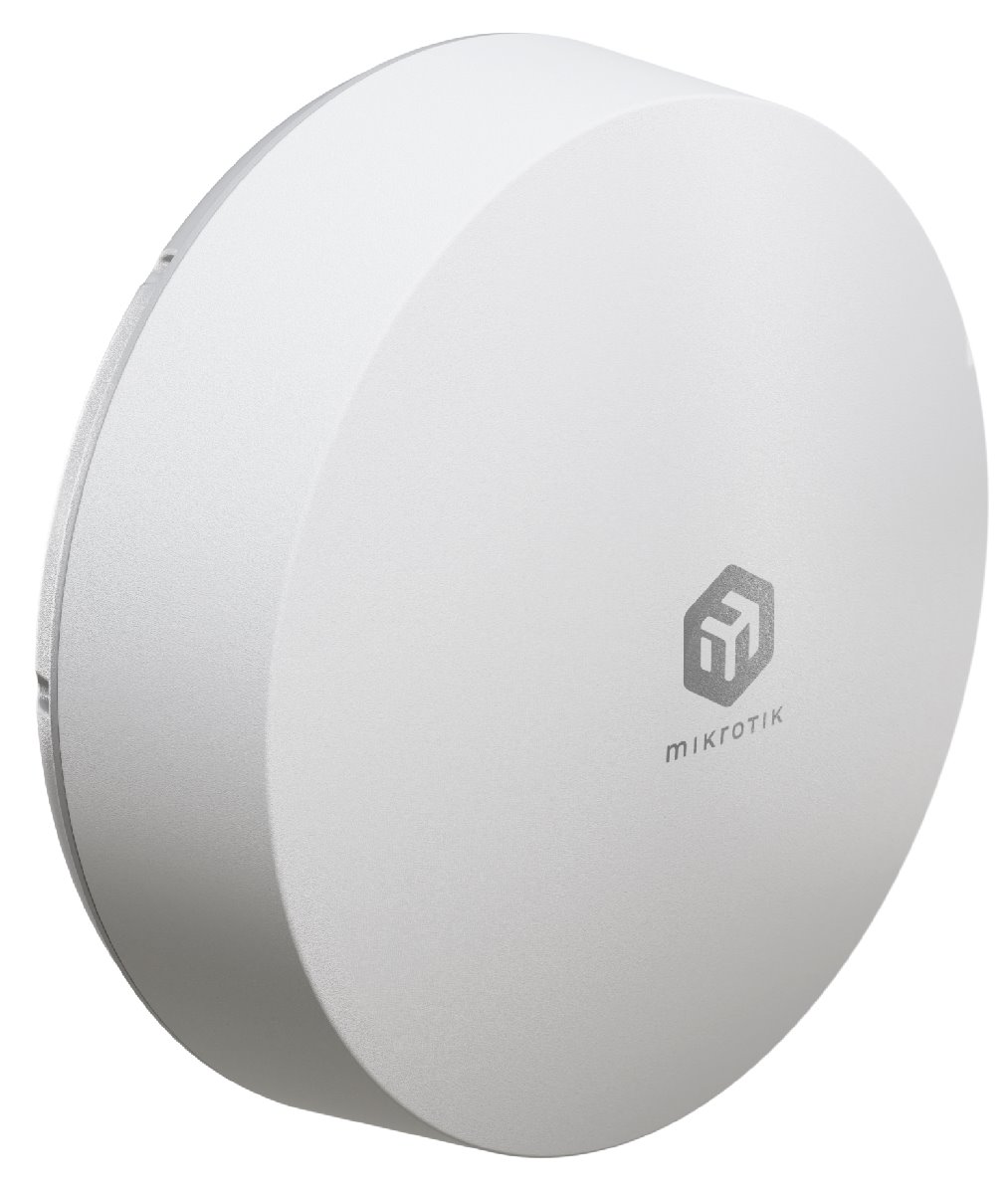

The ATL 5G R16 by MikroTik is a high-performance outdoor device with support for 5G and LTE Cat 20, designed to deliver maximum performance even in demanding conditions. Thanks to its high-gain 16 dBi antenna and 4x4 MIMO technology, the ATL is an ideal solution for connectivity even in the most remote locations. The device features a modern dual-core ARM processor, 512 MB of RAM, and RouterOS v7 for full network management control. It includes a Gigabit Ethernet port with PoE-in support (12–56 V) and 802.3af/at, simplifying installation and minimizing cabling. The maximum power consumption is only 10 W.
Dual SIM with eSIM support
The ATL 5G R16 features a dual SIM system – use either a standard microSIM or the built-in eSIM. The eSIM can be easily activated via MikroTik Connectivity, enabling instant access to mobile data without waiting for a physical SIM card or operator activation.
With its IP66-rated enclosure, the device is protected against harsh weather conditions, and its aerodynamic design prevents the accumulation of snow and water – making it an ideal choice for challenging outdoor environments.
Package contents
Download
Datasheet Firmware (RouterOS / SwOS)GPSR
