MikroTik Cloud Core Router, CCR1009-7G-1C-1S+

We are sorry, this product is no longer in our offer.

MikroTik Cloud Core Router, CCR1009-7G-1C-1S+
MikroTik Cloud Core Router, CCR1009-7G-1C-1S+
×
0/0
MikroTik Cloud Core Router, CCR1009-7G-1C-1S+
MikroTik Cloud Core Router, CCR1009-7G-1C-1S+
MikroTik Cloud Core Router, CCR1009-7G-1C-1S+
MikroTik Cloud Core Router, CCR1009-7G-1C-1S+
Sale
Manufacturer

MikroTik

Code10300271
Part No.CCR1009-7G-1C-1S+
  • Related products3
MikroTik 24V2APOW - 24V, 2.5A internal power supply for CCR1009-7G-1C-1S+ and CRS317-1G-16S+RM
24V2APOW

12.95 EUR excl. VAT
15.77 EUR incl. VAT
In Stock
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.12 EUR excl. VAT
3.78 EUR incl. VAT
In Stock
Parameters
Download

Product description

The new updated revision of CCR1009 is here. MikroTik attempted to combine all the customer feedback and best practice in CCR device manufacturing that MikroTik learned over the last three years, since the first CCR1009 devices were launched. New devices supports 100Mbps SFP, 10% higher theoretical throughput, directly connected interfaces to the CPU and combo port.

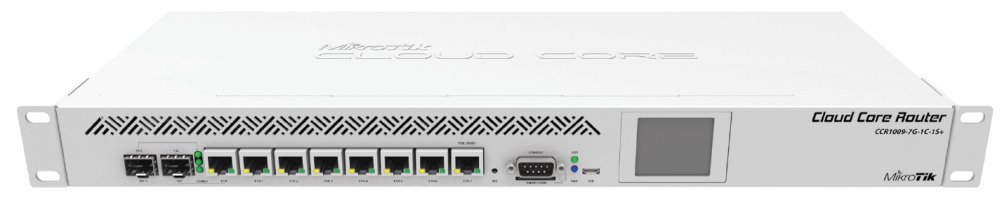

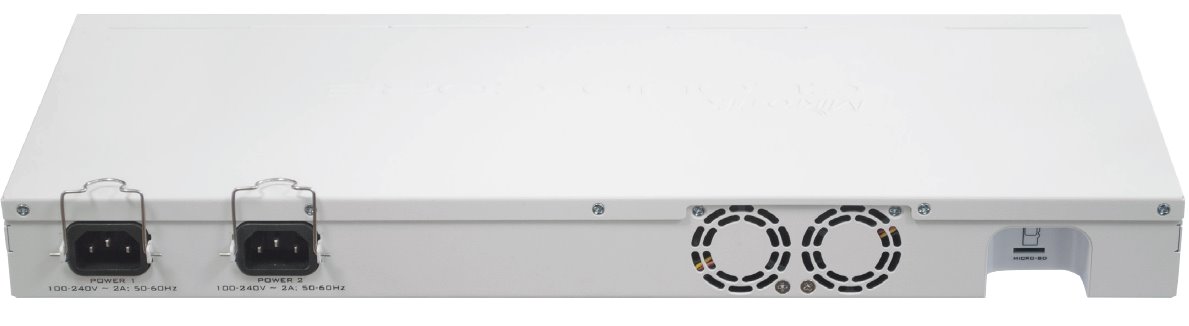

This model including 8x GLAN which 1 port is combo SFP/GLAN, 1x SFP+, LCD display, serial port, microSD and smart slot. Router can be powered by two integrated power source with 230V input, via PoE or combination for a fully redundancy.

Package contains

  • Device
  • Power cord
  • Rackmount ears
  • USB cable

Articles and reviews

SFP compatibility list

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Connectors and Interfaces

Touchscreen: Yes
Multiple WAN: Yes
Slot for Memory Card: microSD
Smart slot: Yes
LAN speed: (8) 10/100/1000Mbps
Gigabit LAN: Yes
Optical interfaces: (1) 100/1000Mbps Combo + (1) 10Gbps
Serial port: RS-232
USB: Yes

Power

Power over Ethernet: 18 .. 56V DC
Power type: Mains power (230V), PoE
PoE type: PoE-In (only)
Redundant power supply: Yes
Max. power consumption [W]: 34
Power via connector/terminal: 230V AC

Physical characteristics

Design: Rackmount
Fans: (2) 40 x 40 mm
Chassis design: Metal
Width [mm]: 444
Height [mm]: 47
Depth [mm]: 175

Hardware

CPU: TILE-Gx9
CPU frequency [MHz]: 1200
CPU cores: 9
Internal storage [MB]: 128
RAM [MB]: 2048

Software

Operating system: RouterOS - L6
IPv6 support: Yes
Default IP address: 192.168.88.1
Default login and password: admin / -

×
