MikroTik Cloud Core Router, CCR1009-8G-1S-1S+
We are sorry, this product is no longer in our offer.
MikroTik Cloud Core Router, CCR1009-8G-1S-1S+
×
0/0
Sale
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
Touchscreen:
Yes
Multiple WAN:
Yes
Slot for Memory Card:
microSD
LAN speed:
(8) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(1) 1000Mbps + (1) 10Gbps
Serial port:
RS-232
USB:
Yes
Power
Power over Ethernet:
12 .. 58V DC
Power type:
Mains power (230V), PoE
PoE type:
PoE-In (only)
Redundant power supply:
Yes
Max. power consumption [W]:
35
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
Yes
Chassis design:
Metal
Operating temperature [°C]:
-20 up to 60
Width [mm]:
444
Height [mm]:
47
Depth [mm]:
175
Hardware
CPU:
TLR4-00980CG-10CE
CPU frequency [MHz]:
1200
CPU cores:
9
Internal storage [MB]:
128
RAM [MB]:
2048
Software
Operating system:
RouterOS - L6
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

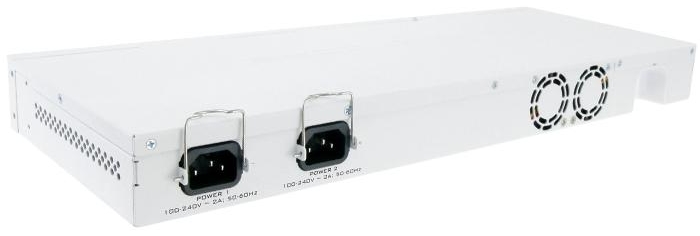

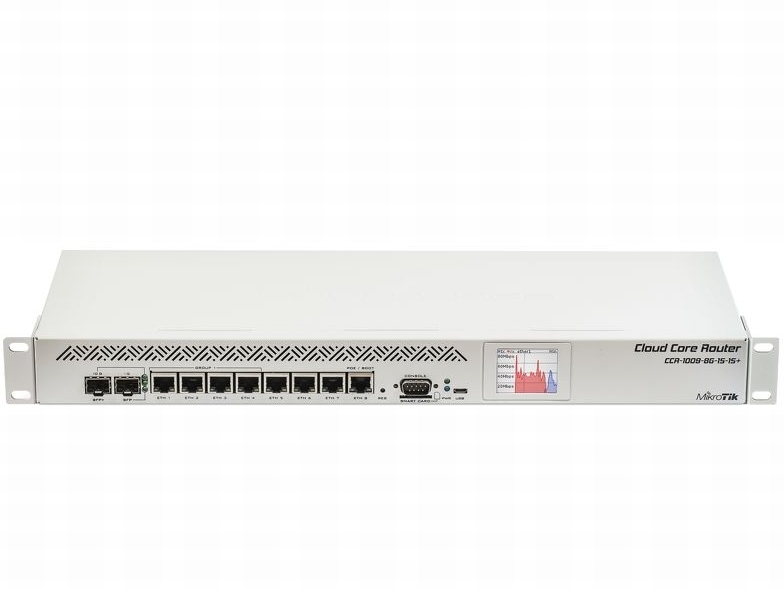

The CCR1009 is a powerful Ethernet router based on the cutting edge TILERA 9 core CPU. CCR1009-8G-1S-1S+ comes with 2GB of RAM, eight Gigabit Ethernet ports (Ether1-4 are in a Switch group), one SFP port and one SFP+ port with 10G support (SFP module not included). CCR1009-8G-1S-1S+ model have dual power supplies built in for redundancy (if one power line fails, the other one will take over automatically). Also, CCR1009-8G-1S-1S+ supports a Smart card, to store your private key for use in all features that support Certificate based authentication. SFP+ port supports SFP (1.25G) modules as well.
