MikroTik Cloud Core Router, CCR1009-8G-1S-1S+PC, pasive cooling
We are sorry, this product is no longer in our offer.

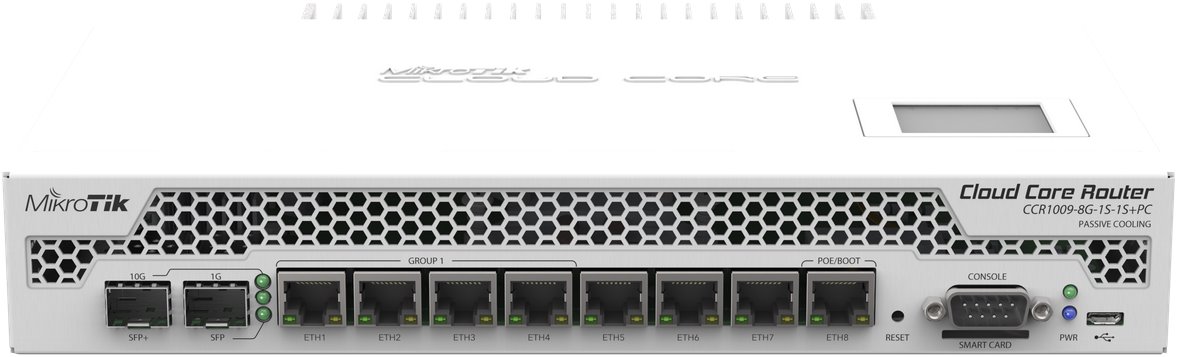

MikroTik Cloud Core Router, CCR1009-8G-1S-1S+PC, pasive cooling
×
0/0
Sale
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300210 | |
| Part No. | CCR1009-8G-1S-1S+PC | |
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.75 EUR excl. VAT
4.54 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
Touchscreen:
Yes
Multiple WAN:
Yes
Slot for Memory Card:
microSD
LAN speed:
(8) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(1) 1000Mbps + (1) 10Gbps
Serial port:
RS-232
USB:
Yes
Power
Power over Ethernet:
18 .. 58V DC
Power type:
DC connector, PoE
PoE type:
PoE-In (only)
Redundant power supply:
Yes
Max. power consumption [W]:
30
Power via connector/terminal:
18 .. 58V DC
Physical characteristics
Design:
Rackmount
Fans:
No
Chassis design:
Metal
Width [mm]:
272
Height [mm]:
47
Depth [mm]:
190
Hardware
CPU:
TLR4-00980CG-10CE-A3a
CPU frequency [MHz]:
1000
CPU cores:
9
Internal storage [MB]:
128
RAM [MB]:
2048
Software
Operating system:
RouterOS - L6
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

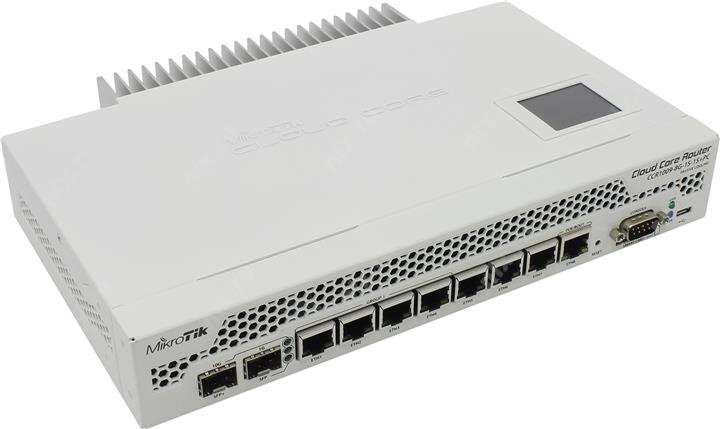

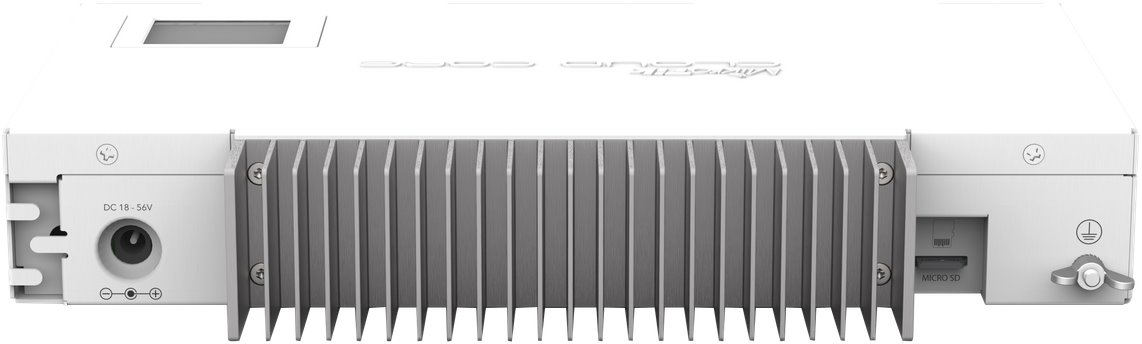

Our popular 9-core Cloud Core Router is now available in a new passive cooling enclosure. This CCR1009 unit is equipped with two heat-pipes and a specially designed heat-sink, so its completely silent.
The unit is powered by an external 24v 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port. The device comes with a desktop enclosure, but special rackmount brackets are also included, so it can be used either on desk or in rack.
Articles and reviews
SFP compatibility listDownload
Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualGPSR
