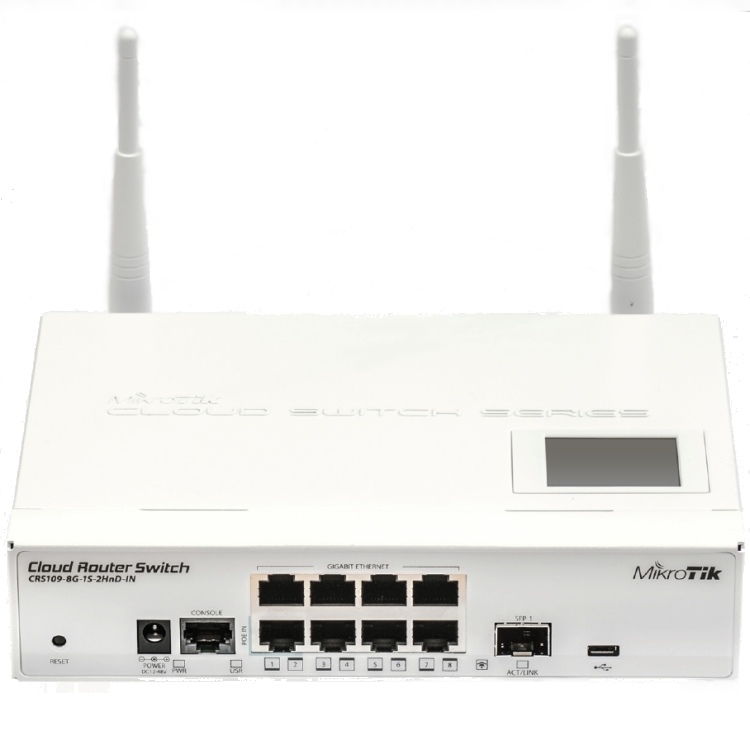

MikroTik Cloud Router Switch CRS109-8G-1S-2HnD-IN
We are sorry, this product is no longer in our offer.
MikroTik Cloud Router Switch CRS109-8G-1S-2HnD-IN
×
0/0
Sale
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300185 | |
| Part No. | CRS109-8G-1S-2HnD-IN | |
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.71 EUR excl. VAT
4.49 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Tx power [dBm]:
30
Wireless frequency:
2.4 GHz
WiFi standards:
802.11b/g, 802.11n
Transmission speed - 2.4GHz [Mb/s]:
300
2.4GHz MIMO:
2 x 2
Type of antenna:
Fixed
Antenna gain [dBi]:
4
Connectors and Interfaces
Touchscreen:
Yes
LAN speed:
(8) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(1) 1000Mbps
Serial port:
RJ45
USB ports 2.0:
1
USB:
Yes
Power
Power over Ethernet:
10 .. 57V DC
Power type:
DC connector, PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
13
Power via connector/terminal:
8 .. 57V DC
Physical characteristics
Design:
Desktop
Operating temperature [°C]:
-35 up to 65
Width [mm]:
285
Height [mm]:
45
Depth [mm]:
145
Hardware
CPU:
AR9344
CPU frequency [MHz]:
600
CPU cores:
1
Internal storage [MB]:
128
RAM [MB]:
128
Software
Operating system:
RouterOS - L5
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description
Cloud Router Switch 109-8G-1S-2HnD-IN is new "small size low cost" member of our CRS series. It comes with eight Gigabit Ethernet ports and high power 1000mW 2.4GHz wireless. Product supports 10-57V and is 802.3af/at compliant!
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
Articles and reviews
SFP compatibility listDownload
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualGPSR
