MikroTik Cloud Router Switch CRS112-8P-4S-IN
MikroTik Cloud Router Switch CRS112-8P-4S-IN
×
0/0
Your price excl. VAT
162.65 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 162.72 EUR |
| Your price incl. VAT (21%) | 196.89 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300394 | |
| Part No. | CRS112-8P-4S-IN | |
| Warranty | 24 months | |
ML-SFP-RJ45-1G
17.92 EUR excl. VAT
21.77 EUR incl. VAT
In Stock
ML-S31D-20
6.56 EUR excl. VAT
8.02 EUR incl. VAT
In Stock
ML-S3155-20
6.28 EUR excl. VAT
7.68 EUR incl. VAT
In Stock
ML-S85D-05
6.56 EUR excl. VAT
8.02 EUR incl. VAT
Expected 16.5.2024
ML-S31D-3
6.28 EUR excl. VAT
7.68 EUR incl. VAT
Expected 16.5.2024
ML-S5531-20
8.62 EUR excl. VAT
10.51 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(4) 1000Mbps
Serial port:
RJ45
Power
Power type:
DC connector
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at, Passive 24V
PoE Out ports:
8
PoE budget [W]:
95
Max. power consumption [W]:
10
Power via connector/terminal:
18 .. 57V DC
Physical characteristics
Design:
Desktop, Rackmount
Fans:
Without fan
Chassis design:
Metal
Width [mm]:
200
Height [mm]:
40
Depth [mm]:
143
Hardware
CPU:
QCA8511
Internal storage [MB]:
16
RAM [MB]:
128
Software
Web management:
Yes
Management:
Web management
Features:
VLAN, QoS, L3
Operating system:
RouterOS - L5
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description
CRS112-8P-4S-IN is an eight-port Gigabit PoE Router/Switch that offers various PoE-Out power options. In addition to passive PoE, it also offers 802.3af/at standards on all eight ports. In addition to the metal ports, you can use 4 optical SFP ports to connect devices to the network at speeds of up to 1Gbps.
Power PoE Out

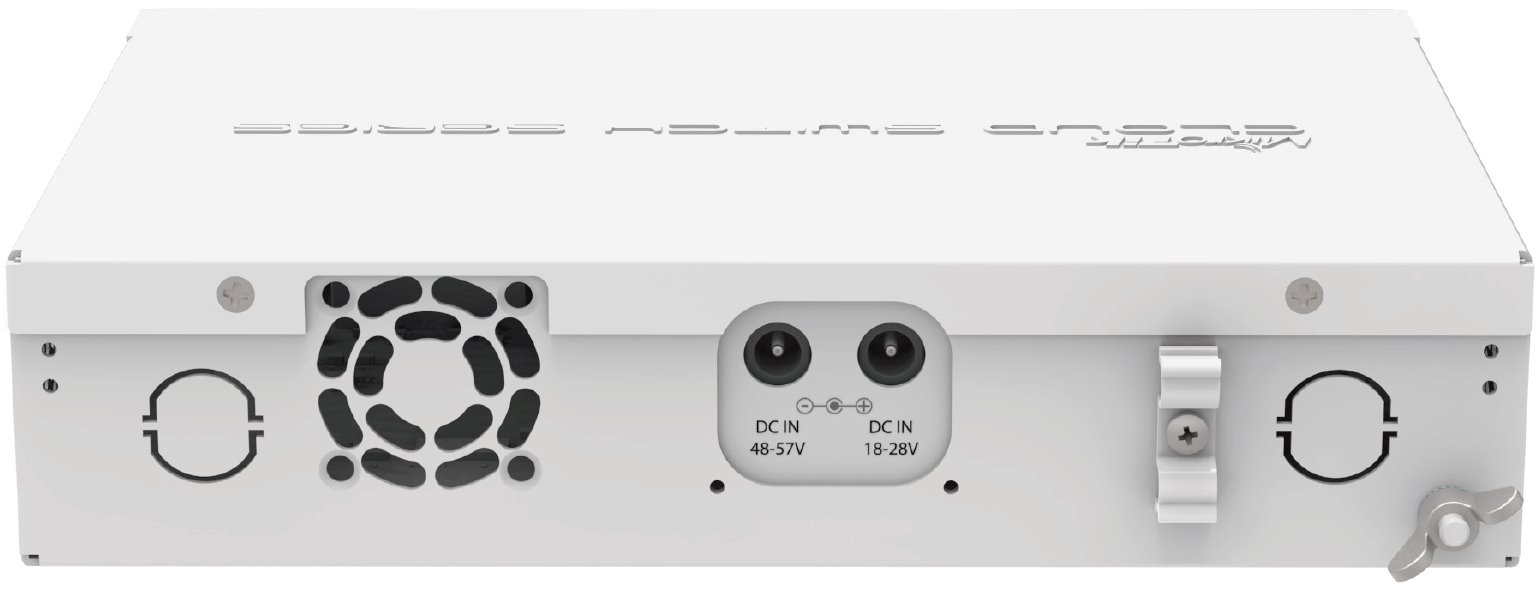

CRS112-8P-4S-IN has 2 power connectors on its back. The first 18 - 28V connector is used to connect the included DC adapter and via CRS it is then possible to power other devices connected to the PoE ports using passive PoE. Optionally, a power supply with a voltage in the range of 48 - 57V can be purchased, then the CRS112 enables devices supporting 802.3af/at standards to be powered via PoE ports.
For 24V output power, it is sufficient to connect the included power adapter. If you need a 48V power supply, you need to purchase a power source, e.g. GM-4820. If you need to connect a mix of devices that require both types of power, you need to have both power supplies connected at the same time!
Package contents
Articles and reviews
SFP compatibility listDownload
CE Datasheet Firmware (RouterOS / SwOS)Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
