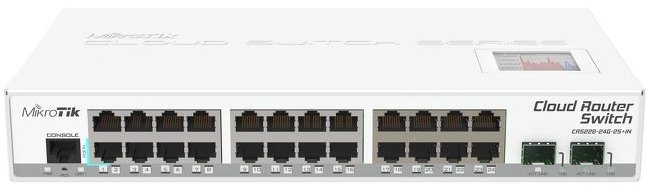

MikroTik Cloud Router Switch CRS226-24G-2S+IN
We are sorry, this product is no longer in our offer.
MikroTik Cloud Router Switch CRS226-24G-2S+IN
×
0/0
Sale
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.73 EUR excl. VAT
4.51 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
Touchscreen:
Yes
LAN speed:
(24) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(2) 1G/10Gbps
Serial port:
RJ45
Power
Power over Ethernet:
8 .. 30V DC
Power type:
DC connector, PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
21
Power via connector/terminal:
8 .. 28V DC
Physical characteristics
Design:
Desktop
Operating temperature [°C]:
-35 up to 65
Width [mm]:
285
Height [mm]:
44
Depth [mm]:
145
Hardware
CPU:
QCA8519
CPU frequency [MHz]:
400
CPU cores:
1
Internal storage [MB]:
128
RAM [MB]:
64
Software
Operating system:
RouterOS - L5
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description
Cloud Router Switch is our new member of our Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes. The CRS226 uses a new class of switch chips, which allows us to have two SFP+ ports for 10G connectivity.
Articles and reviews
SFP compatibility listDownload
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualGPSR
