MikroTik Cloud Router Switch CRS226-24G-2S+RM
We are sorry, this product is no longer in our offer.
MikroTik Cloud Router Switch CRS226-24G-2S+RM
×
0/0
Sale
S-85DLC05D
11.43 EUR excl. VAT
13.92 EUR incl. VAT
In Stock
S-31DLC20D
15.24 EUR excl. VAT
18.53 EUR incl. VAT
In Stock
S-3553LC20D
46.67 EUR excl. VAT
56.64 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.73 EUR excl. VAT
4.51 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
Touchscreen:
Yes
LAN speed:
(24) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(1) 10Gbps + (1) 1/10Gbps
Serial port:
RJ45
Power
Power over Ethernet:
8 .. 30V DC
Power type:
DC connector, PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
21
Power via connector/terminal:
8 .. 30V DC
Physical characteristics
Design:
Rackmount
Operating temperature [°C]:
-35 up to 65
Width [mm]:
444
Height [mm]:
44
Depth [mm]:
145
Hardware
CPU:
QCA8519
CPU frequency [MHz]:
400
CPU cores:
1
Internal storage [MB]:
128
RAM [MB]:
64
Software
Operating system:
RouterOS - L5
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

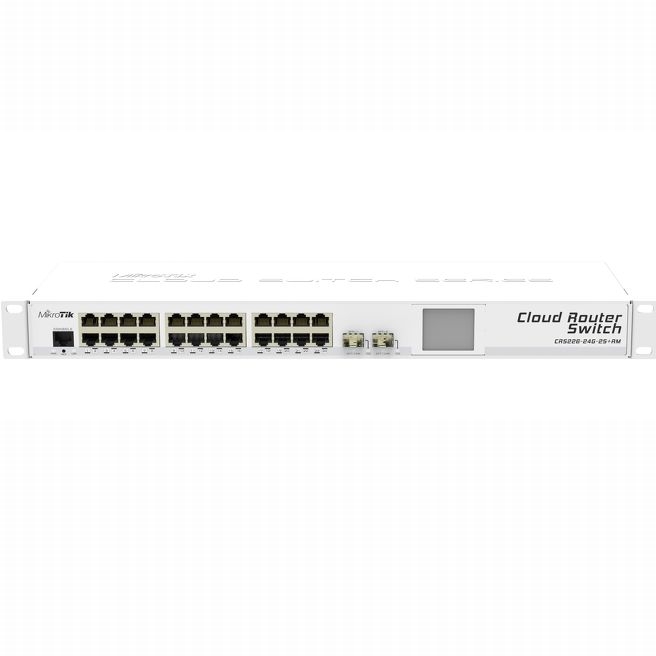

The Cloud Router Switch CRS226-24G-2S+ is now available also in a 1U rackmount case, product code CRS226-24G-2S+RM. It is a fully functional Layer 3 switch powered by RouterOS. All the specific switch configuration options are available in a special switch menu. But if you want, ports can be removed from the switch configuration and used for routing purposes. It has 24 Gigabit ports and two SFP+ cages for 10G connectivity (first SFP port supports 1.25G/10G modules, second port only 10G modules).
Articles and reviews
SFP compatibility listDownload
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualGPSR
