MikroTik LtAP-2HnD&R11e-LTE7, LtAP LTE7 kit

Product description

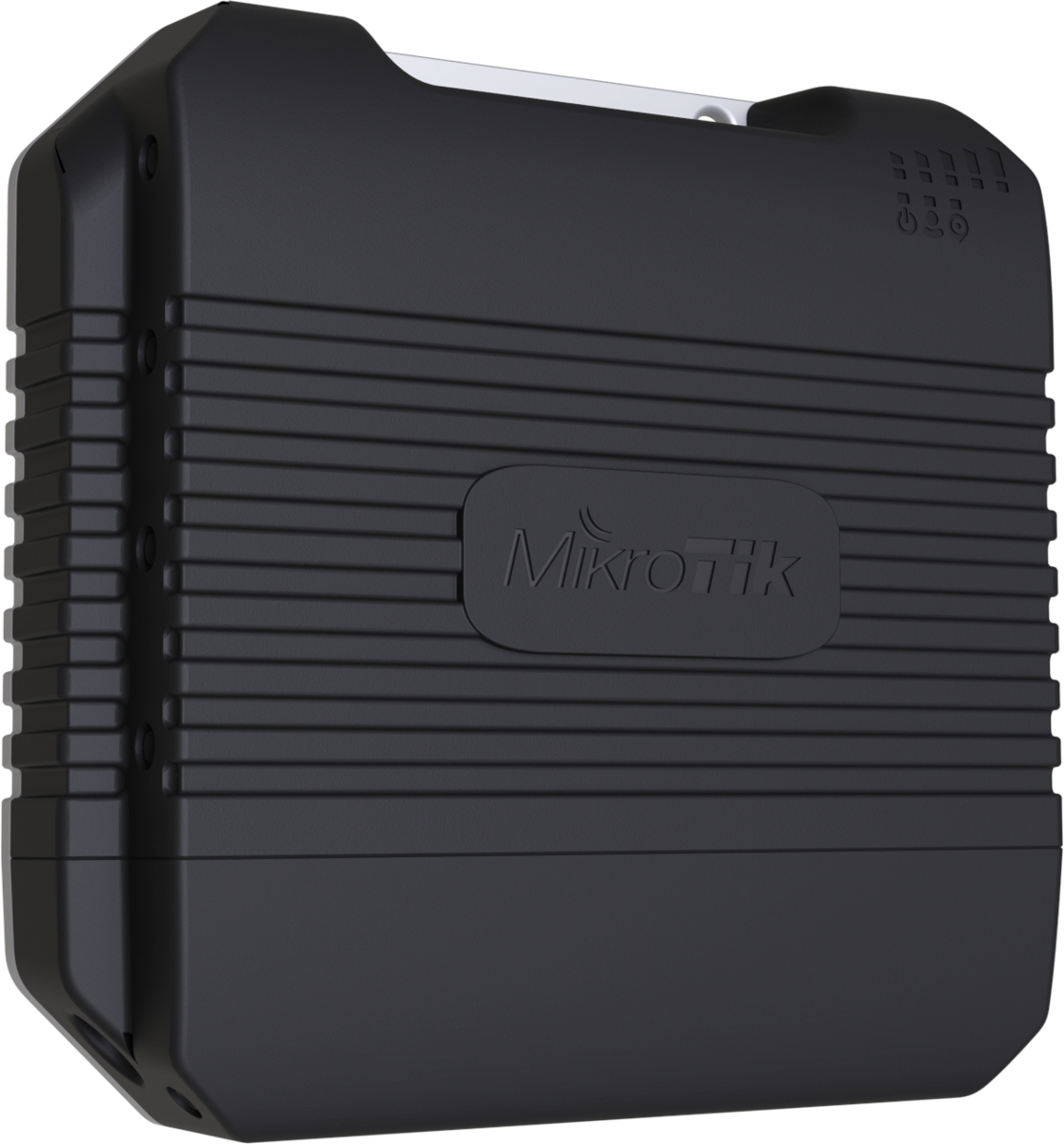

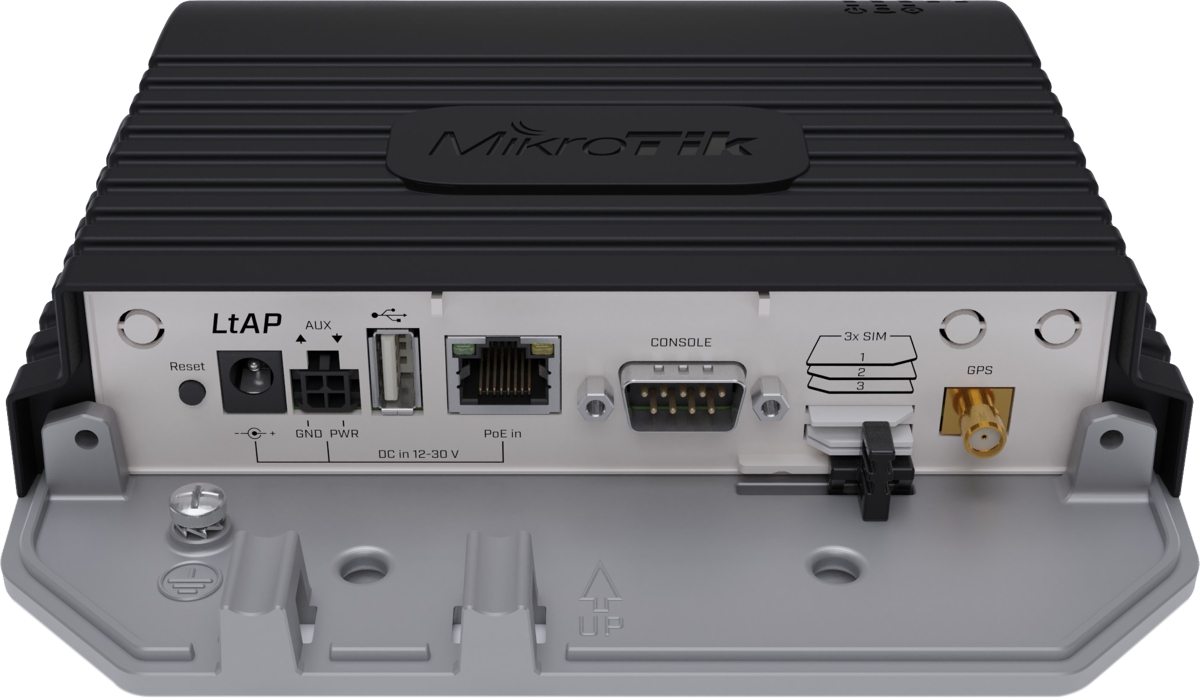

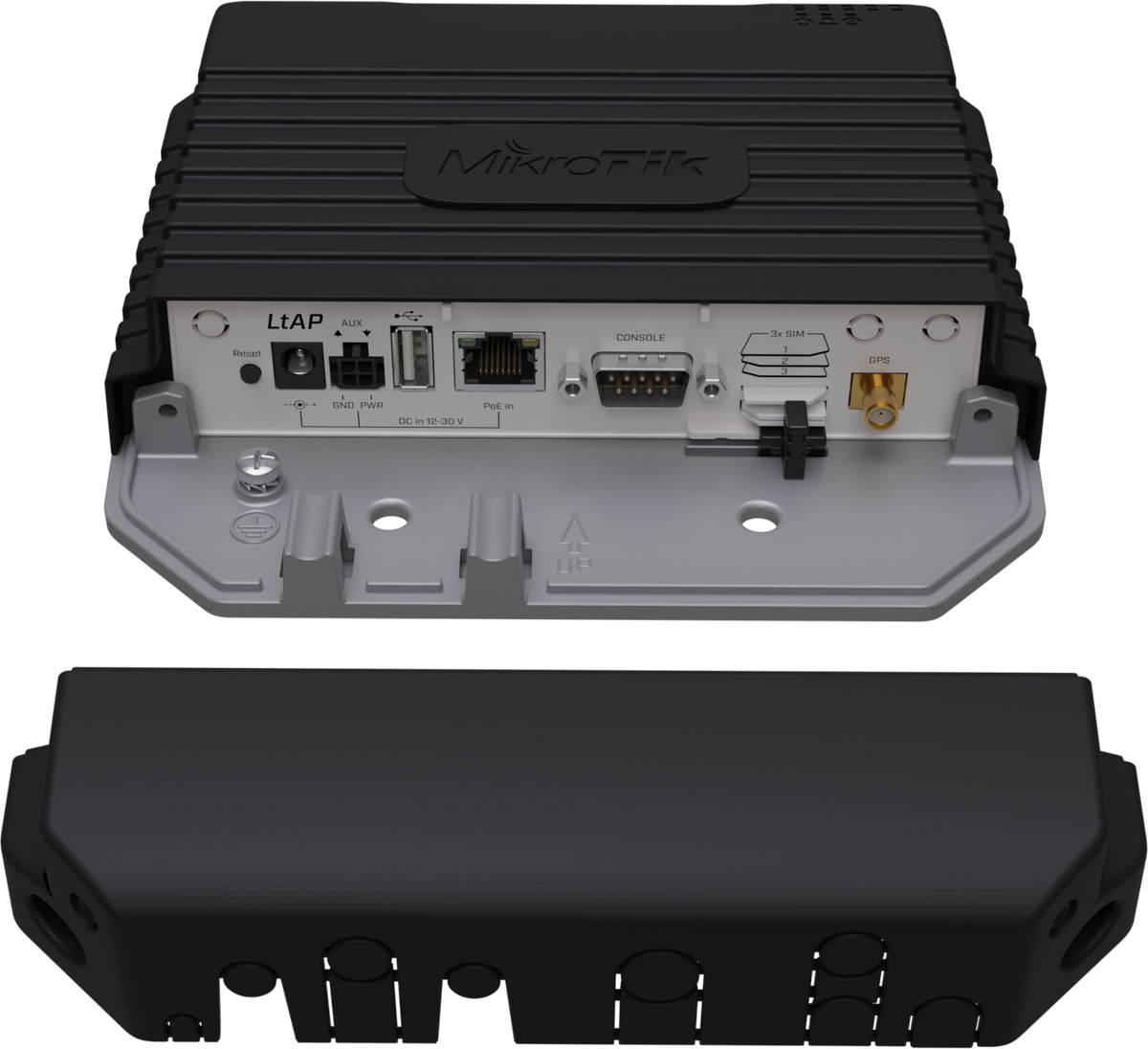

The MikroTik LtAP LTE7 kit is a rugged 4G LTE Wi-Fi 4 AP, supplied with the R11e-LTE7 modem and a built-in GPS module, perfect for vehicular deployments. The device features (1) 1Gbit PoE-In port, (3) mini SIM slots, (1) USB port, (1) SMA female connector for a GPS antenna and (1) RS232 console port.

The modem supports 4G LTE (Cat. 7) and 3G networks, with speeds of up to 300Mbps downlink and 100Mbps uplink. It utilizes 2x2 MIMO on the downlink and carrier aggregation, which allows the simultaneous use of multiple LTE bands. This feature improves response times and connection stability in high-traffic areas and can enhance transmission efficiency in locations with weaker signal conditions.

Key features

• (1) 1Gbit passive PoE-In port, (1) USB 2.0 port, (1) SMA female connector for a GPS antenna, (1) RS232 console port and (2) internal LTE antennas
• (3) mini SIM slots - with automatic roaming
• Free miniPCI-e slot for expansion - add a second LTE modem, a 5 GHz interface or a LoRa module
• RouterOS v7 L4 provides full control - no subscriptions and no locked features
• Flexible power options 12-30V - passive PoE, 4-pin automotive DC connector or DC jack
• IP54 - weather-resistant enclosure

Package contents

• Device
• Power adapter 24V/1.2A

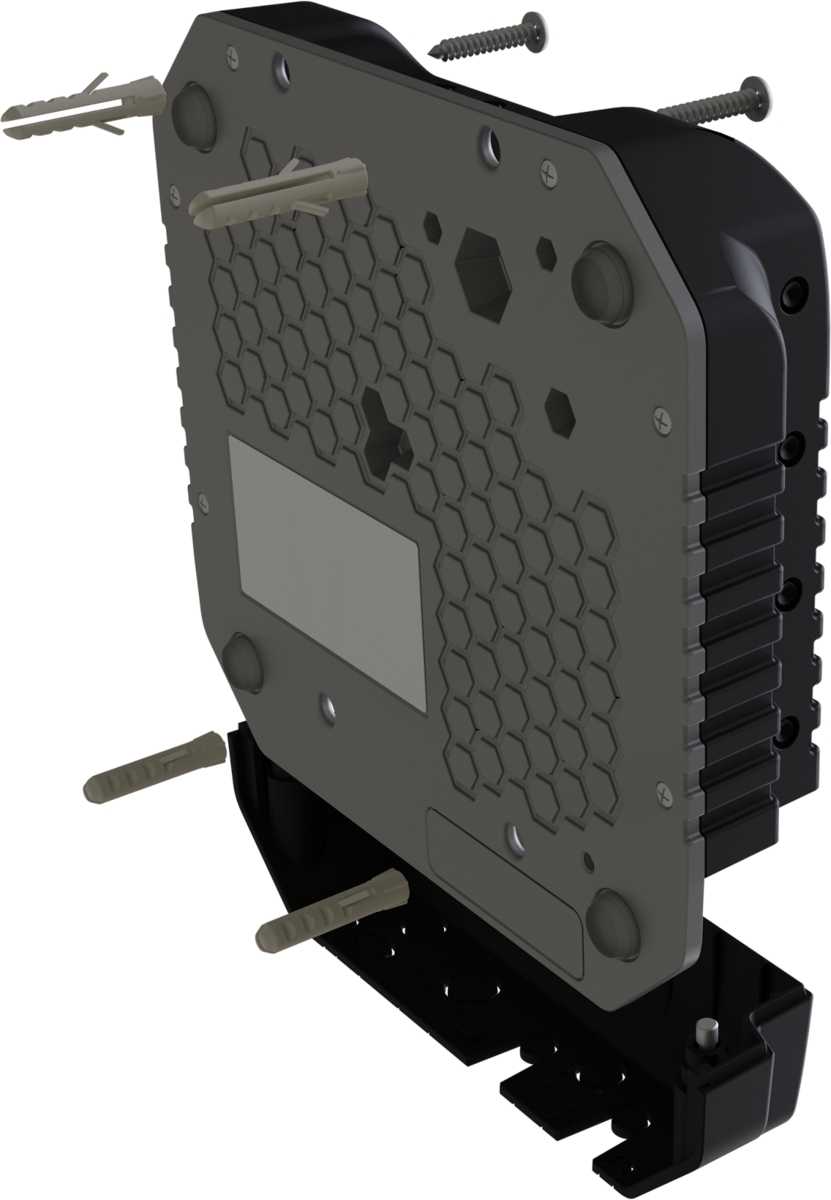

• (4) Screws and wall anchors
• 4-pin automotive DC cable
