MikroTik MTAD-5G-30D3, mANT30, 30dBi Parabolic Dish antenna Dual 5GHz, 2x RPSMA, standard type mount
MikroTik MTAD-5G-30D3, mANT30, 30dBi Parabolic Dish antenna Dual 5GHz, 2x RPSMA, standard type mount
×
0/0
Sale
Your price excl. VAT
125.35 EUR
Recycling fee | 0.40 EUR |
---|---|
Your price with RF | 125.75 EUR |
Your price incl. VAT (21%) | 152.16 EUR |
blank |
Availability
at our branches
at our branches
Per orig. box:
1 piece
Manufacturer |
MikroTik |
|
---|---|---|
Code | 10300193 | |
Part No. | MTAD-5G-30D3 | |
Warranty | 24 months |
You have a choice of 4 variantscompare all
1-pack, Standard
MTAD-5G-30D3
125.35 EUR
MTRADC
33.80 EUR excl. VAT
40.90 EUR incl. VAT
Not in stock
MTRADC4
114.47 EUR excl. VAT
138.51 EUR incl. VAT
In Stock
RB922UAGS-5HPacD-NM
113.39 EUR excl. VAT
137.29 EUR incl. VAT
In Stock
RB912UAG-5HPnD-OUT
64.37 EUR excl. VAT
77.97 EUR incl. VAT
In Stock
RB912UAG-2HPnD-OUT
67.60 EUR excl. VAT
81.88 EUR incl. VAT
In Stock
Sleeve30
114.47 EUR excl. VAT
138.51 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
MIMO, SISO:
2 x 2, 2 x 2 (slant - 45° turned)
Polarization:
VH, VH (slant)
VSWR:
< 1,4
F/B ratio [dB]:
30
Cross-Pol Isolation [dB]:
40
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
3
Azimuth beam width (-6dB) [°]:
3
Antenna type:
Directional
Antenna gain [dBi]:
30
Connectors and Interfaces
RF connectors:
(2) RSMA female
Physical characteristics
Antenna design:
Parabolic
Designed for mast diameter [mm]:
30 up to 70
Wind load [km/h]:
201
Purpose:
Outdoor
Material:
Aluminum
Weight [kg]:
4,8
Width [mm]:
700
Height [mm]:
700
Depth [mm]:
450
Product description

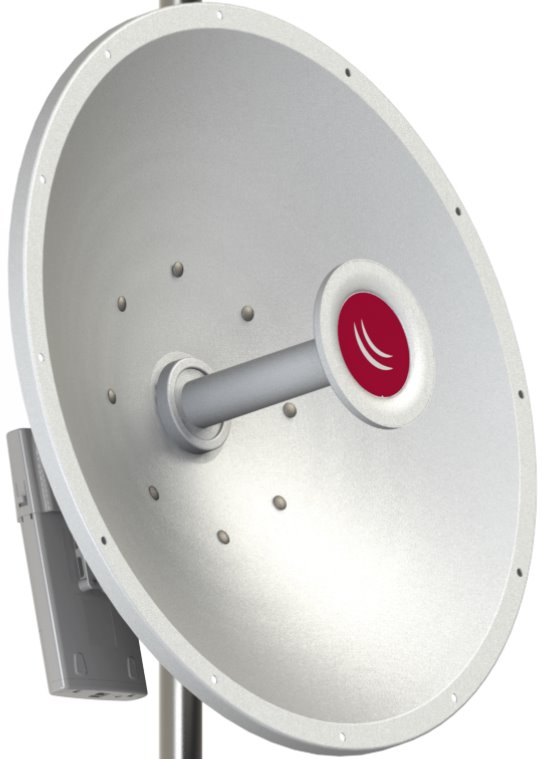

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.
