MikroTik MTAS-5G-15D120 sector antenna, mANT 15s, 15dBi, 120°
We are sorry, this product is no longer in our offer.
MikroTik MTAS-5G-15D120 sector antenna, mANT 15s, 15dBi, 120°
×
0/0
Sale
FL-RM-RM-005
7.49 EUR excl. VAT
9.06 EUR incl. VAT
In Stock
RB922UAGS-5HPacD-NM
98.83 EUR excl. VAT
119.67 EUR incl. VAT
In Stock
RB912UAG-5HPnD-OUT
56.10 EUR excl. VAT
67.97 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 1,4
F/B ratio [dB]:
30
Cross-Pol Isolation [dB]:
40
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
10
Azimuth beam width (-6dB) [°]:
120
Antenna type:
Sector
Antenna gain [dBi]:
15
Connectors and Interfaces
RF connectors:
(2) RSMA female
Physical characteristics
Purpose:
Outdoor
Weight [kg]:
0,7
Width [mm]:
140
Height [mm]:
348
Depth [mm]:
82
Product description

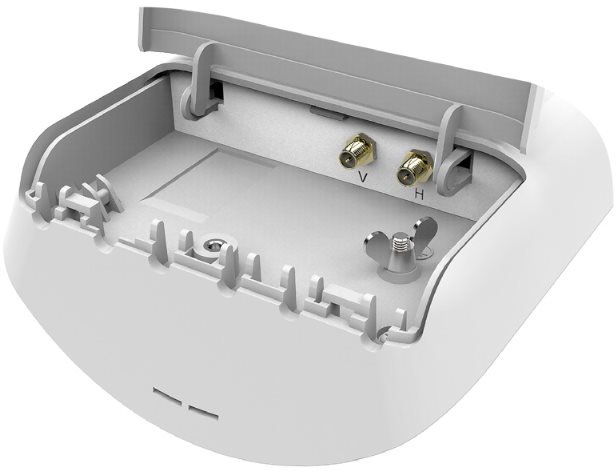

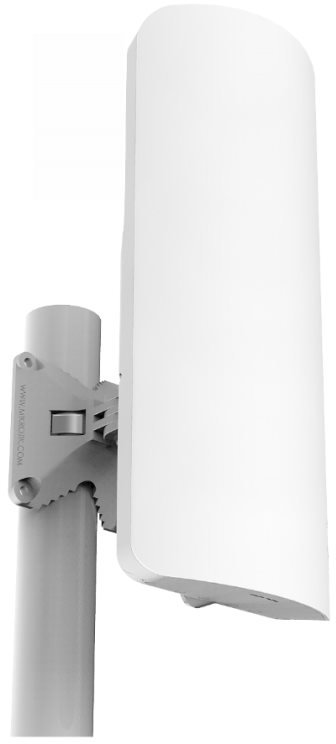

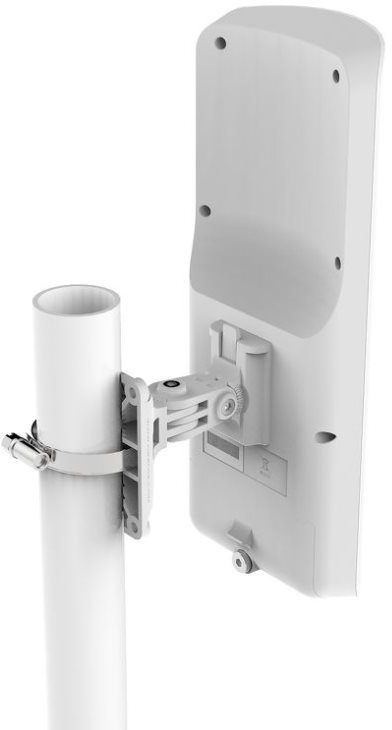

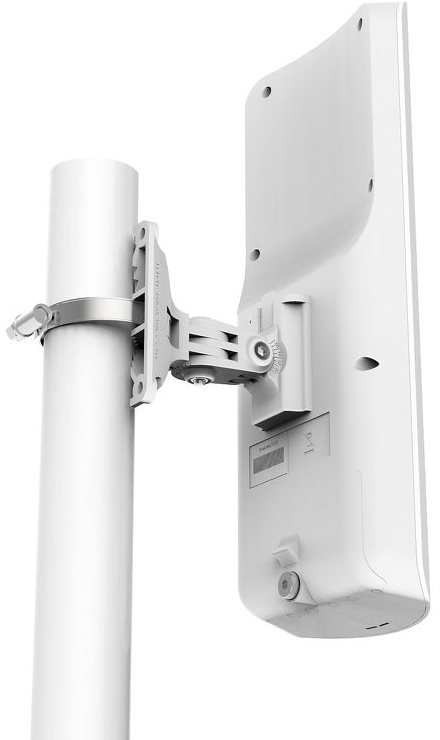

The new sector mANT15s antenna is the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device. The mANT is a dual-polarization 5GHz antenna with two RSMA female connectors, it comes with 15dBi gain and 120°/10° beamwidth. The mANT15s is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO mount.
The mANT antenna is protected from interference with a special Bronzolate coating that covers the inside of the back. The antenna has excellent Port to Port isolation of 40dB and a Front-to-Back ratio of 30dB.
