MikroTik RB924iR-2nD-BT5&BG770A&R11e-LR9G, KNOT LR9G kit
Your price excl. VAT
120.40 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 120.47 EUR |
| Your price incl. VAT (21%) | 145.77 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10920037 | |
| Part No. | RB924iR-2nD-BT5&BG770A&R11e-LR9G | |
| Warranty | 24 months | |
ACGPSA
4.75 EUR excl. VAT
6.00 EUR incl. VAT
stiqtyfree:40
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
PR1US440
3.35 EUR excl. VAT
4.31 EUR incl. VAT
stiqtyfree:127
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
PR1KS210
5.99 EUR excl. VAT
7.50 EUR incl. VAT
stiqtyfree:74
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
915_Omni_antenna
33.37 EUR excl. VAT
40.63 EUR incl. VAT
stiqtyfree:10
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
TG-BT5-IN
6.69 EUR excl. VAT
8.18 EUR incl. VAT
stiqtyfree:4
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
TG-BT5-OUT
11.44 EUR excl. VAT
13.93 EUR incl. VAT
stiqtyfree:18
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
MAXPI30
16.77 EUR excl. VAT
20.38 EUR incl. VAT
stiqtyfree:144
_17:
avail:2
infocode: stock
queu:
shipmin: 29.1.2026
In Stock
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
shipmin: 30.1.2026
Expected 30.1.2026
PCU5E-5-MSC
3.80 EUR excl. VAT
4.60 EUR incl. VAT
stiqtyfree:198
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-96
Wireless frequency:
2.4 GHz, LTE, Bluetooth, GNSS, 915 MHz
WiFi standards:
802.11n, 802.11a, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
22
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in, Detachable
Internal antennas:
2
Detachable antennas:
3
Antenna gain [dBi]:
< 2
4G/LTE bands support:
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (4) 1700 MHz, (8) 900 MHz, (20) 800 MHz, (5) 850 MHz, (12) 700 MHz, (17) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (28) 700 MHz, (66) 1700 MHz, (13) 700 MHz, (18) 850 MHz, (19) 850 MHz, (27) 800 MHz

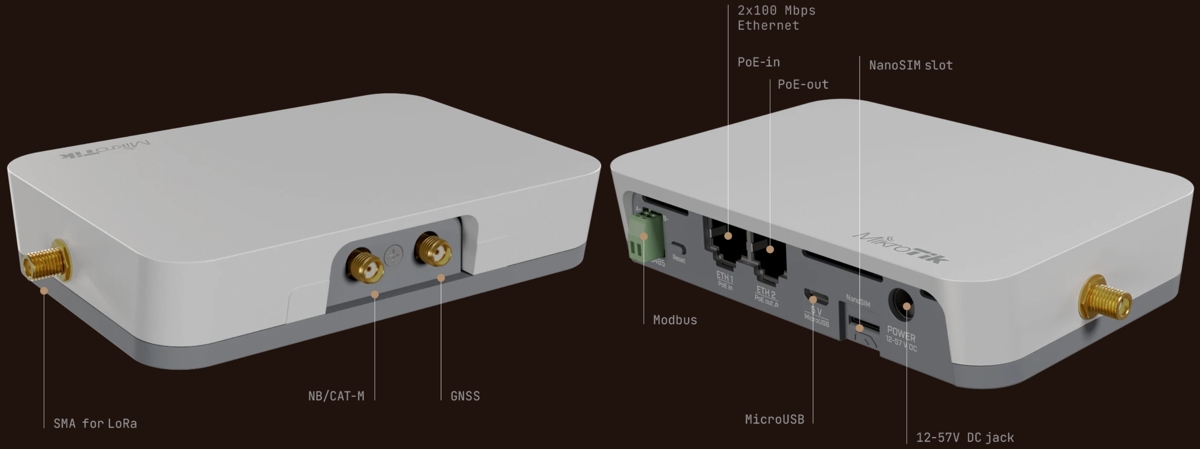

Connectors and Interfaces
RF connectors:

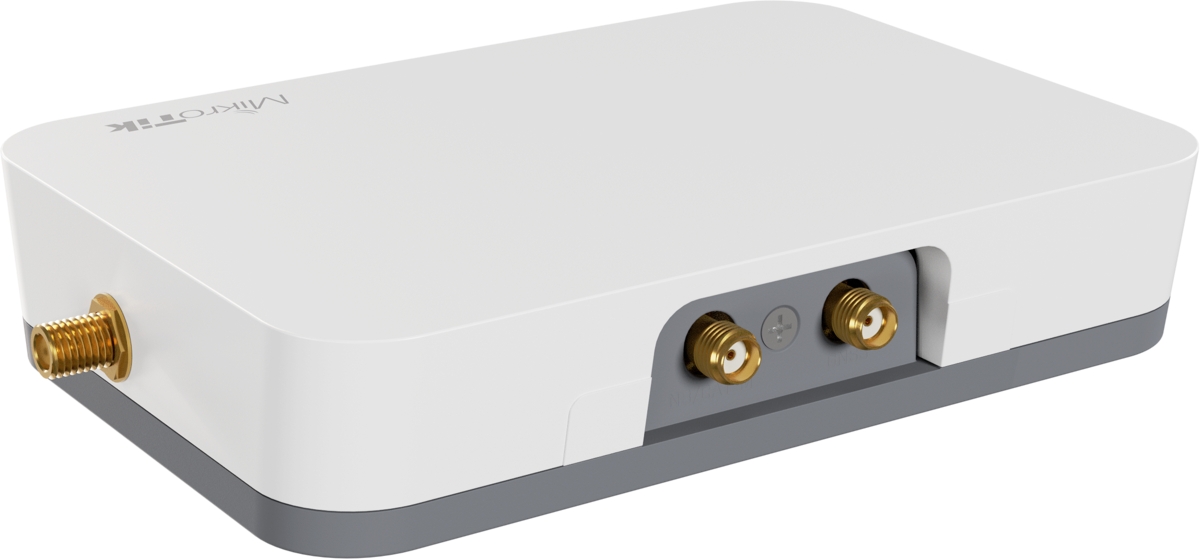

(3) SMA female
LAN speed:
(2) 10/100Mbps
Serial port:
RS-485
MiniPCI-e slots:
1
SIM slot:
Yes
SIM slots quantity:
1
USB:
Yes
GPS modul:
Yes
Power
Power over Ethernet:
802.3af, 802.3at, 18 .. 57V DC
Power type:
PoE, DC connector, USB (5V)
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
Max. power consumption [W]:
23
Power via connector/terminal:
12 .. 57V DC
Physical characteristics
Design:

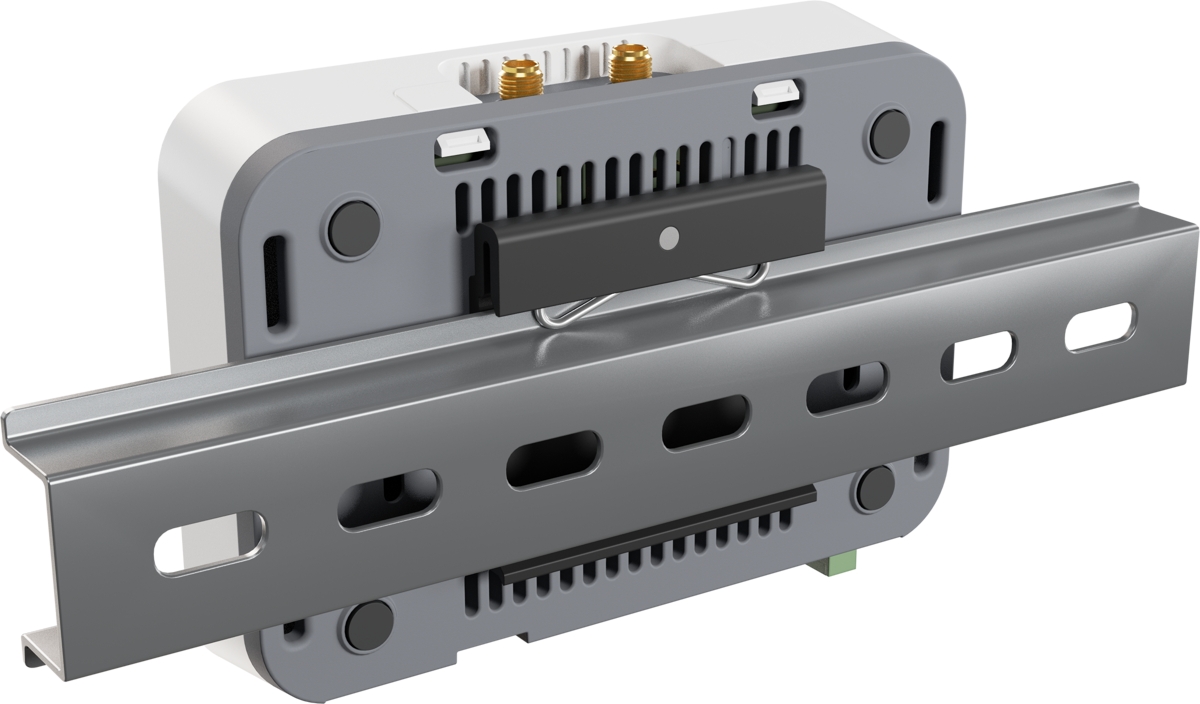

On the wall, Desktop, DIN rail
Fans:
No
Chassis design:
Plastic
Operating temperature [°C]:
-40 up to 70
Width [mm]:
122
Height [mm]:
26
Depth [mm]:
87
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
128
RAM [MB]:
64
Software
Operating system:
RouterOS v7 - L4
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

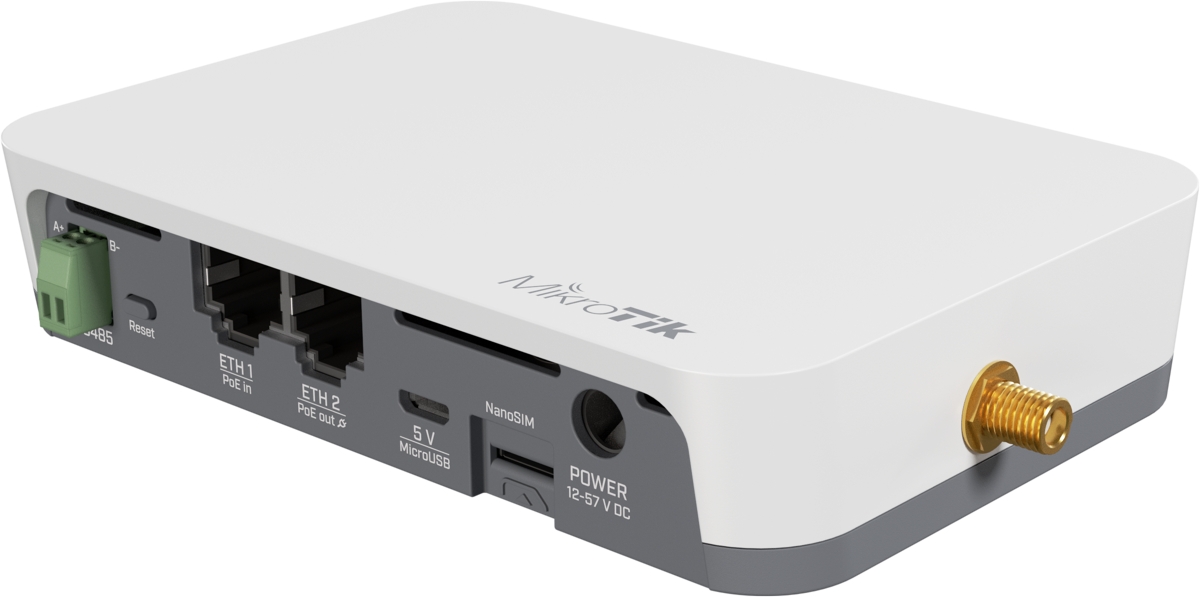

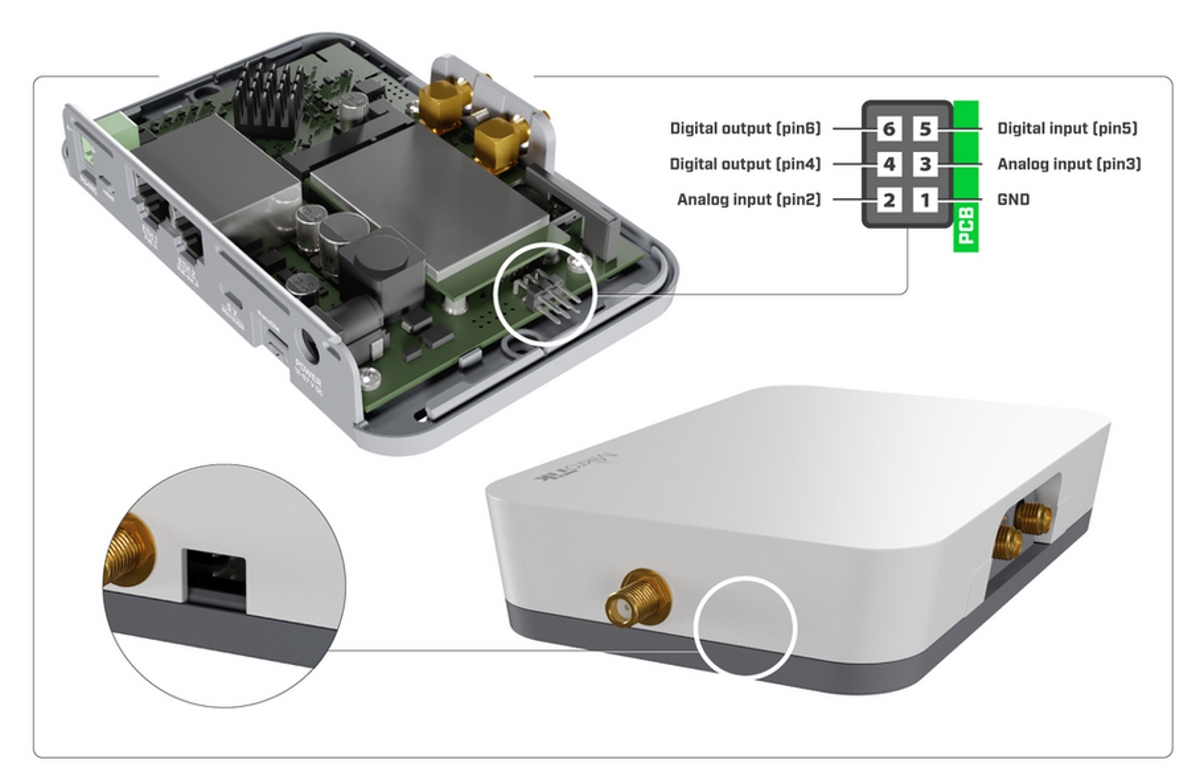

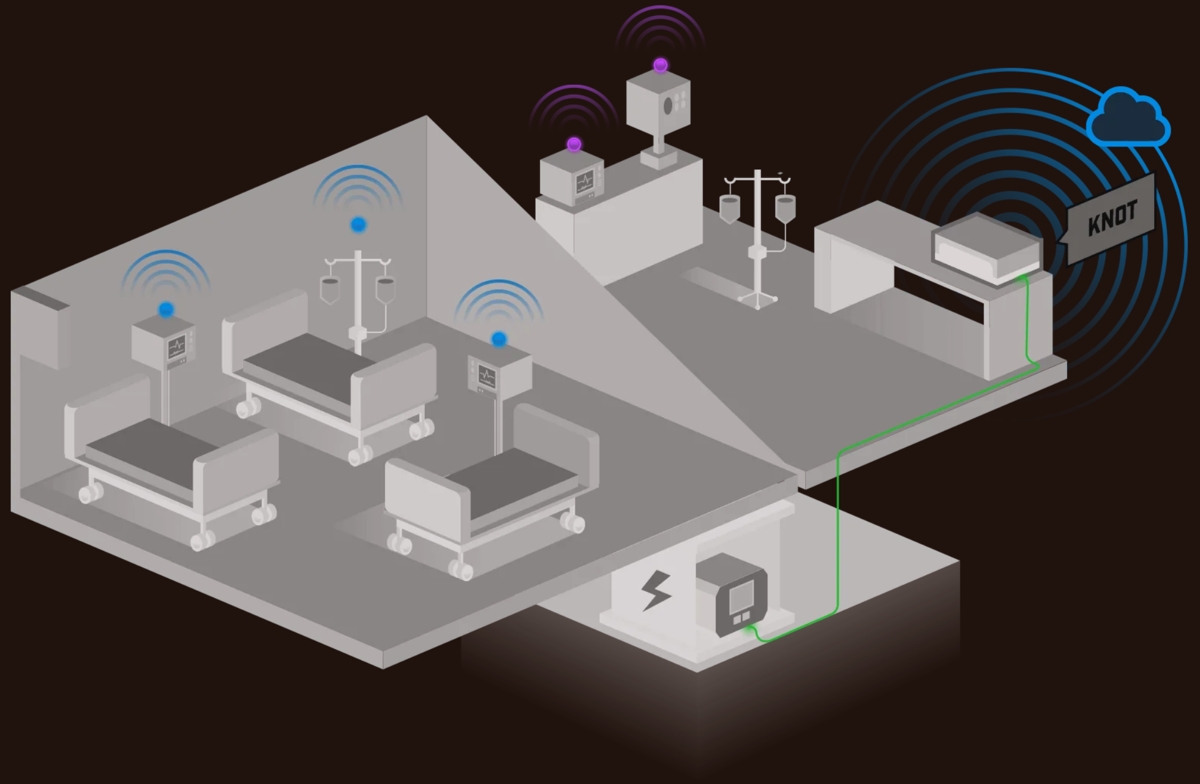

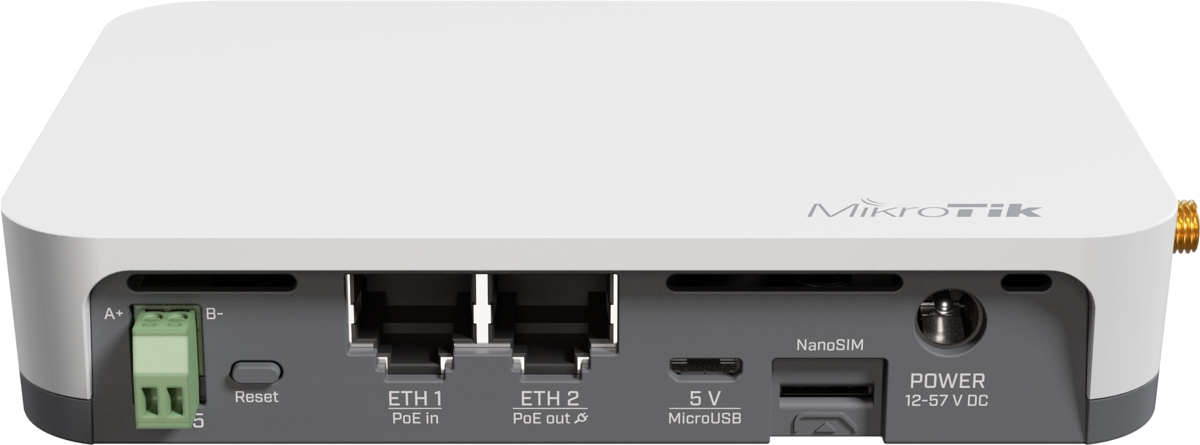

The MikroTik KNOT LR9G kit is a flexible industrial IoT gateway for asset tracking, remote monitoring, and efficient automation (Modbus and GPIO) with support for LoRa 915MHz, LTE Cat. M1 (LTE-M), LTE Cat. NB2, Bluetooth, Wi-Fi and GPS. It is equipped with (2) 10/100Mbps ports (1x PoE-In, 1x PoE-Out).
Key features

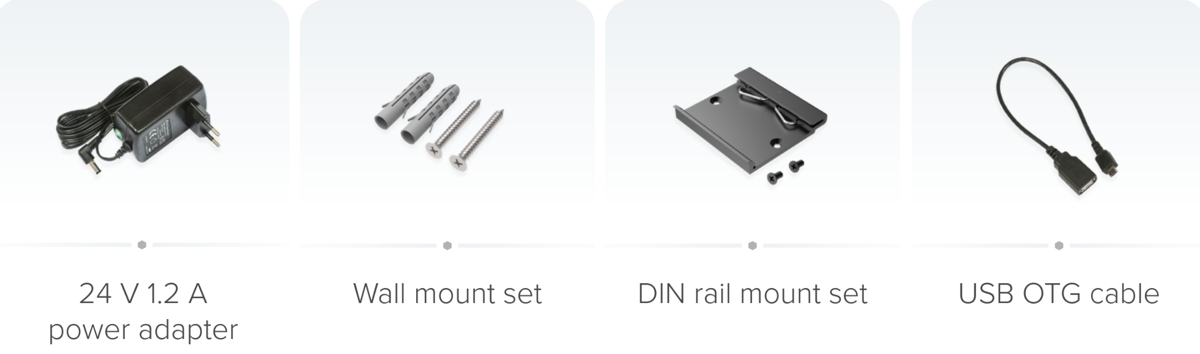

Package contents
Download
Datasheet Firmware (RouterOS / SwOS) User ManualGPSR
