MikroTik RBD22UGS-5HPacD2HnD-15S, mANTBox 52 15s
We are sorry, this product is no longer in our offer.
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300648 | |
| Part No. | RBD22UGS-5HPacD2HnD-15S | |
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.71 EUR excl. VAT
4.49 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
30
Tx power 5GHz [dBm]:
30
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
12, 15
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(1) 1000Mbps
USB:
Yes
Power
Power over Ethernet:
802.3af, 802.3at, 12 .. 57V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
21
Power via connector/terminal:
12 .. 57V DC
Physical characteristics
Design:
Outdoor
Operating temperature [°C]:
-40 up to 70
Width [mm]:
140
Height [mm]:
348
Depth [mm]:
82
Hardware
CPU:
IPQ-4019
CPU frequency [MHz]:
716
CPU cores:
4
Internal storage [MB]:
16
RAM [MB]:
256
Software
Operating system:
RouterOS - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description

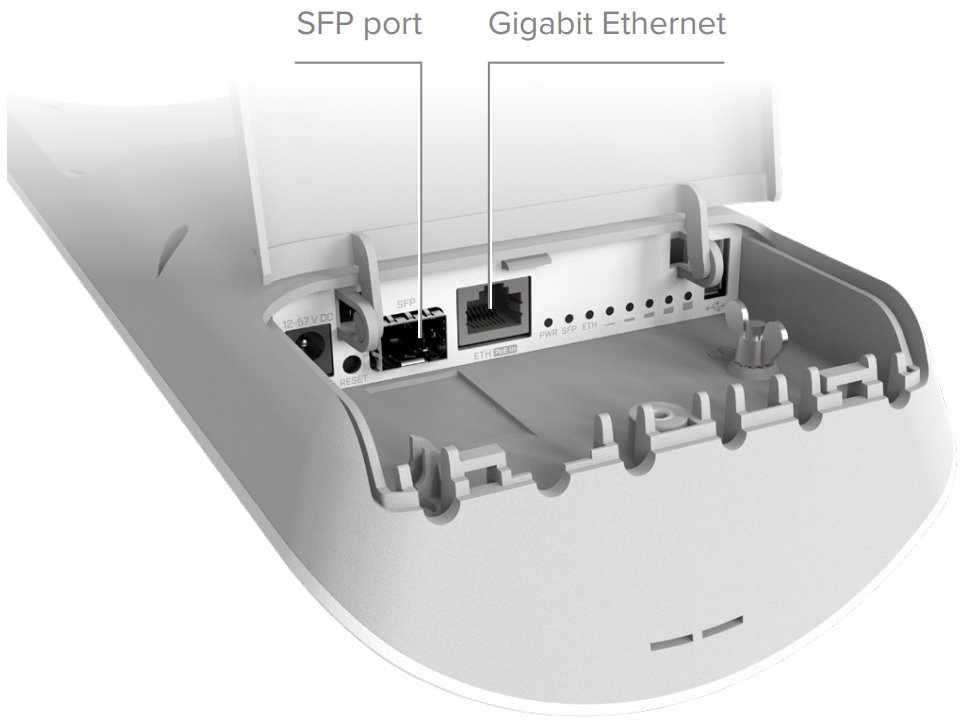

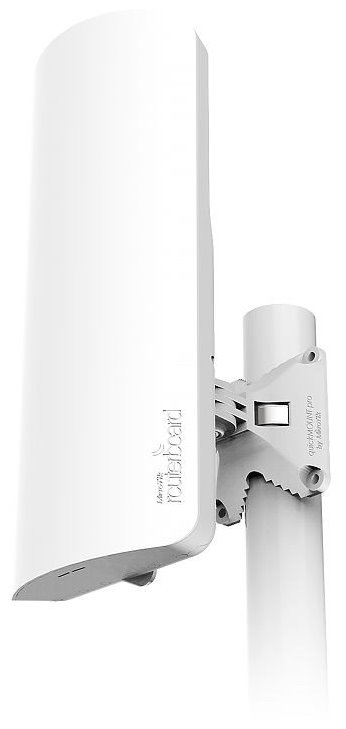

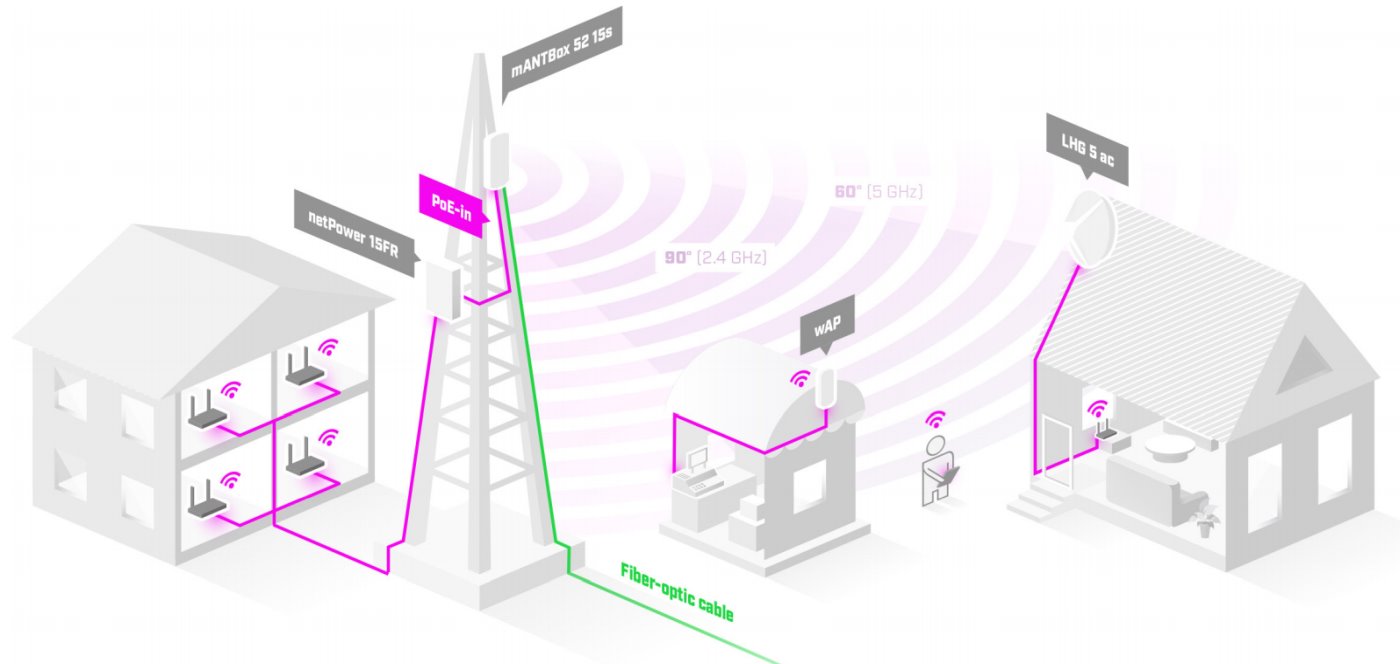

MikroTik mANTBox 52 15s is a dual-band sector antenna with RouterBOARD, which is ideal for covering campsites, campuses, parks and other outdoor areas. The unit is equipped with a dual-chain wireless part with support for 802.11a/b/g/n/ac standards and modulation speeds 300 + 866Mbps, Gigabit LAN port, USB port, one SFP port and a power jack. The device is equipped with 256MB RAM, 16MB internal storage and a very powerful 4-core processor IPQ-4019 with a clock speed of 716MHz. The device can be easily powered by anything. The consumption of the device itself is max. 15W and it can be powered by a power adapter with a voltage of 12 to 57V DC, passive PoE with the same voltage or 802.3af/at.

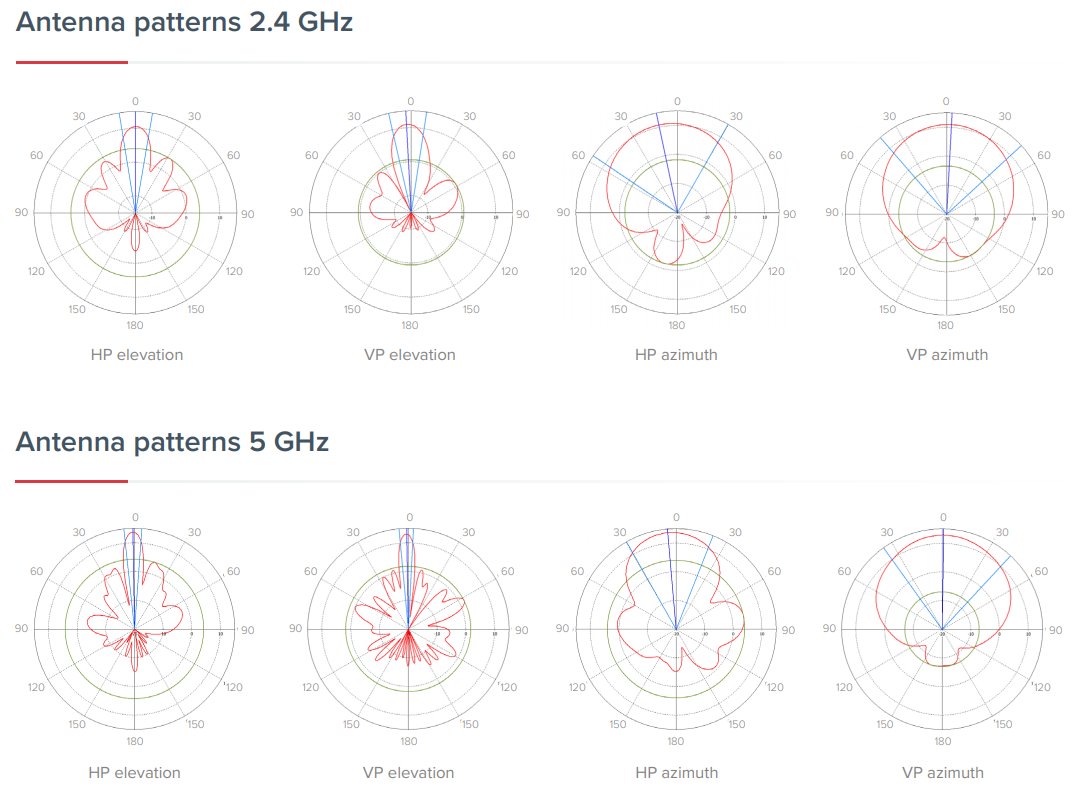

Antenna gain and beam angle
Antenna gain and the beam angle depend on the frequency. For the 5GHz part, the antenna gain is 15dBi and the beam angle is 60°. For the 2.4GHz wireless part, the antenna gain is 12dBi and the beam angle is 90°.

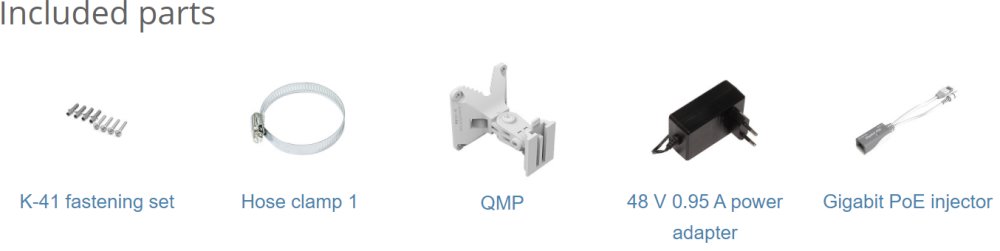

Package contains
