Parameters
Download
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
30
Tx power 5GHz [dBm]:
30
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Detachable
Connectors and Interfaces
RF connectors:
(2) RSMA female
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(1) 1000Mbps
MiniPCI-e slots:
1
SIM slot:
Yes
SIM slots quantity:
1
USB:
Yes
Power
Power over Ethernet:
802.3af, 802.3at, 24 .. 57V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
12
Power via connector/terminal:
12 .. 57V DC
Physical characteristics
Design:
Outdoor
Operating temperature [°C]:
-40 up to 70
Width [mm]:
143
Height [mm]:
247
Depth [mm]:
28
Hardware
CPU:
IPQ-4019
CPU frequency [MHz]:
716
CPU cores:
4
Internal storage [MB]:
16
RAM [MB]:
256
Software
Operating system:
RouterOS - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -

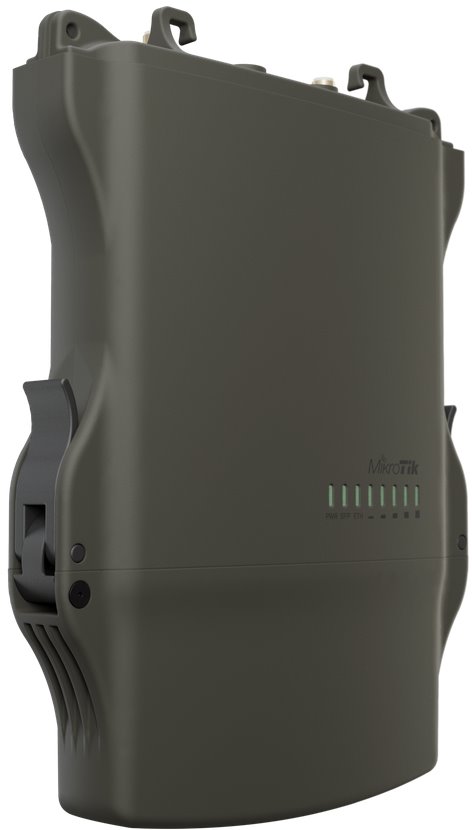

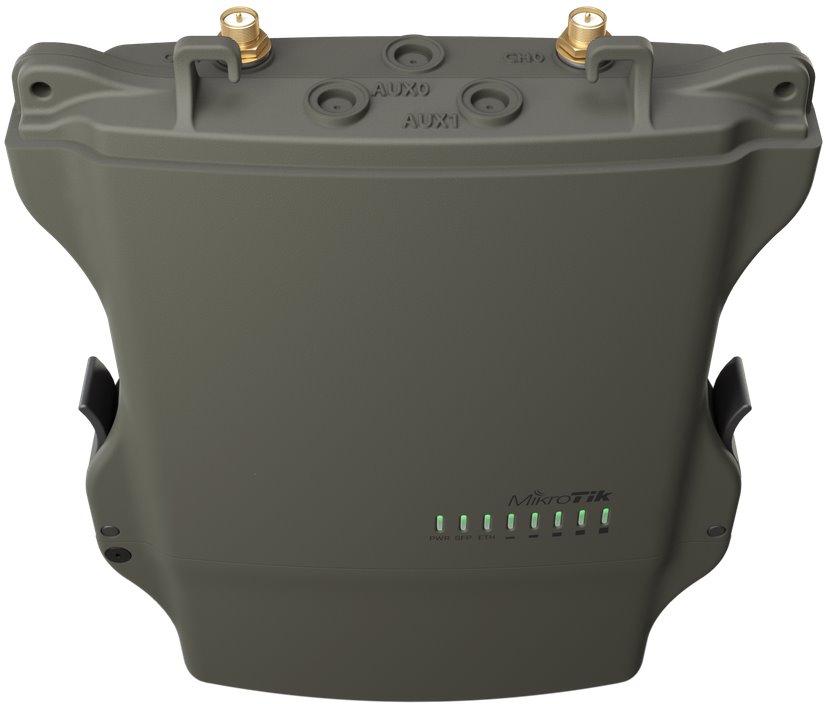

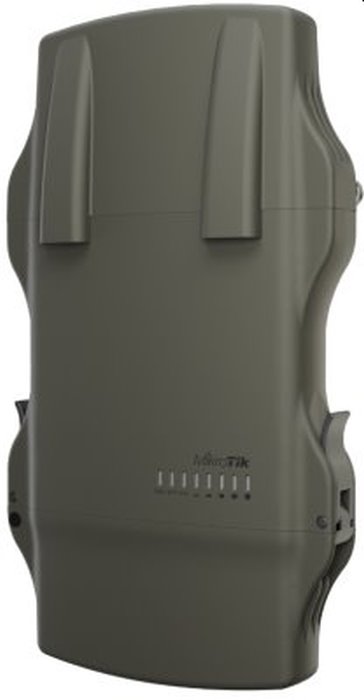

Product description
More power and advanced features, with the same design philosophy as its predecessors – the new NetMetal ac2 AP is sturdy, reliable, easy to use and extremely capable. This is the best way to add IPsec hardware acceleration to your backhaul link! We have added an out-of-the-box 2.4/5 GHz dual-band support – no need for additional tinkering!
Versatile use
NetMetal ac2 can handle massive loads, as it features an improved 4-core CPU and 256 MB RAM. There is a miniPCIe slot for an LTE or other wireless modules and an SFP port for fiber. The NetMetal ac2 can be a very adaptable addition for all kinds of setups.
IP rating IP54
The enclosure has an IP rating of IP54 with protection against splashing from any angle, but it can still be opened and closed with one hand. Very handy in rough environments!
