MikroTik RBMQS - Mobile Quick Setup tool
We are sorry, this product is no longer in our offer.

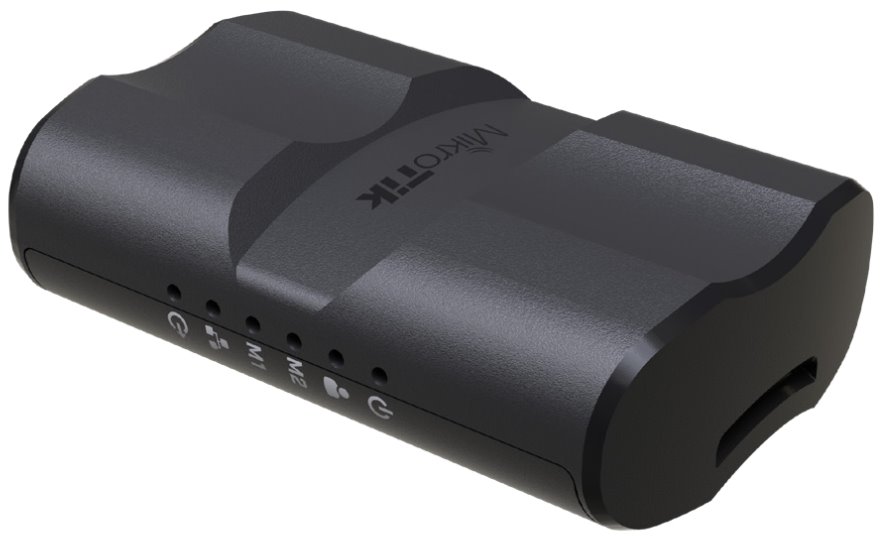

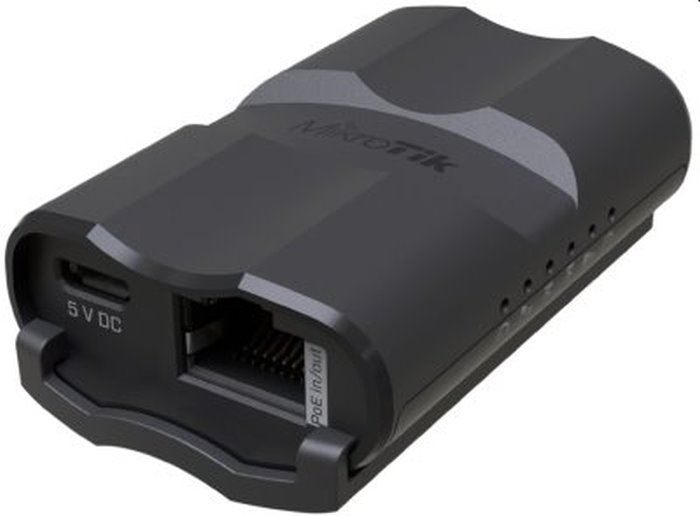

MikroTik RBMQS - Mobile Quick Setup tool
×
0/0
Sale
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.73 EUR excl. VAT
4.51 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz
WiFi standards:
802.11n, 802.11b/g
Type of antenna:
Built-in
Antenna gain [dBi]:
< 2
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
USB:
Yes
Power
Power over Ethernet:
5 .. 30V DC
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
PoE budget [W]:
4,8
Max. power consumption [W]:
1
Power via connector/terminal:
5V DC
Physical characteristics
Design:
Desktop
Operating temperature [°C]:
-20 up to 70
Width [mm]:
40
Height [mm]:
21
Depth [mm]:
65
Hardware
CPU:
ESP32
CPU frequency [MHz]:
160
CPU cores:
2
Internal storage [MB]:
2
Product description
If you work with many PoE powered devices and manage their configuration and diagnostics, this small device fits in your pocket will make your life so much easier! The MQS is a tool that lets you manage MikroTik and other devices (including Ethernet-only!) from your smartphone over a Wi-Fi connection!
MQS can be powered from a power bank or a USB charger. It has PoE out to power your devices – you don’t even need electricity on-site to perform maintenance, diagnostics or Netinstall!
No more climbing and balancing towers with unwieldy laptops – just carry an MQS in your pocket for safe and simple work anywhere! Unplug the PoE cable from your CPE device, attach the MQS and it will allow you to connect wirelessly and apply basic settings, working as a WiFi to Etherner bridge with PoE output.
Download
CE Datasheet Quick GuideGPSR
