MikroTik RBOmniTik UPA-5HnD, 5Ghz, OmniTIK 5 PoE
We are sorry, this product is no longer in our offer.
MikroTik RBOmniTik UPA-5HnD, 5Ghz, OmniTIK 5 PoE
×
0/0
ODR-OmniTik
20.06 EUR excl. VAT
24.27 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Tx power [dBm]:
26
Wireless frequency:
5 GHz
WiFi standards:
802.11a, 802.11n
Transmission speed - 5GHz [Mb/s]:
300
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
7,5
Connectors and Interfaces
LAN speed:
(5) 10/100Mbps
USB:
Yes
Power
Power over Ethernet:
9 .. 30V DC
Power type:
PoE
PoE type:
PoE-Out + PoE-In
PoE Out ports:
4
Physical characteristics
Design:
Outdoor
Operating temperature [°C]:
-30 up to 70
Width [mm]:
125
Height [mm]:
368
Depth [mm]:
55
Hardware
CPU:
AR7241
CPU frequency [MHz]:
400
CPU cores:
1
Internal storage [MB]:
64
RAM [MB]:
32
Software
Operating system:
RouterOS - L4
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description
OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device.
Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

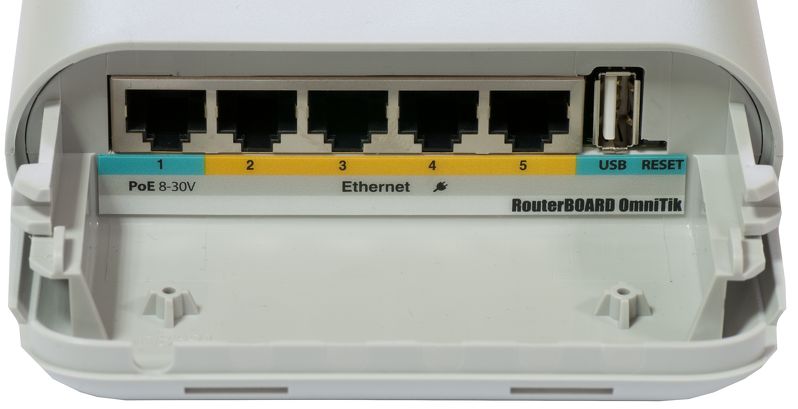

LED signal indicators on it’s back are fully customisable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.
The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices (like SXT-5HPnD) with the same voltage as applied to the unit. Less power adapters to worry about!
Box contains: OmniTik UPA-5HnD, mounting loops, PoE injector, 24v 2.5A power adapter.
