MikroTik RouterBOARD C52iG-5HaxD2HaxD-TC, hAP ax2
Your price excl. VAT
76.42 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 76.49 EUR |
| Your price incl. VAT (21%) | 92.55 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300714 | |
| Part No. | C52iG-5HaxD2HaxD-TC | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11ax, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
1201
Transmission speed - 2.4GHz [Mb/s]:
574
Tx power 2.4GHz [dBm]:
24
Tx power 5GHz [dBm]:
23
Security:
WPA, WPA2, WPA3
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
4, 4,5
Connectors and Interfaces
LAN speed:
(5) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
18 .. 28V DC
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
PoE budget [W]:
16,8
Max. power consumption [W]:
12
Power via connector/terminal:
12 .. 28V DC
Physical characteristics
Design:
Desktop
Purpose:
Indoor
Operating temperature [°C]:
-40 up to 50
Width [mm]:
120
Height [mm]:
37
Depth [mm]:
101
Hardware
CPU:
IPQ-6010
CPU frequency [MHz]:
864
CPU cores:
4
Internal storage [MB]:
128
RAM [MB]:
1024
Software
Operating mode:
AP Router
Operating system:
RouterOS - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -

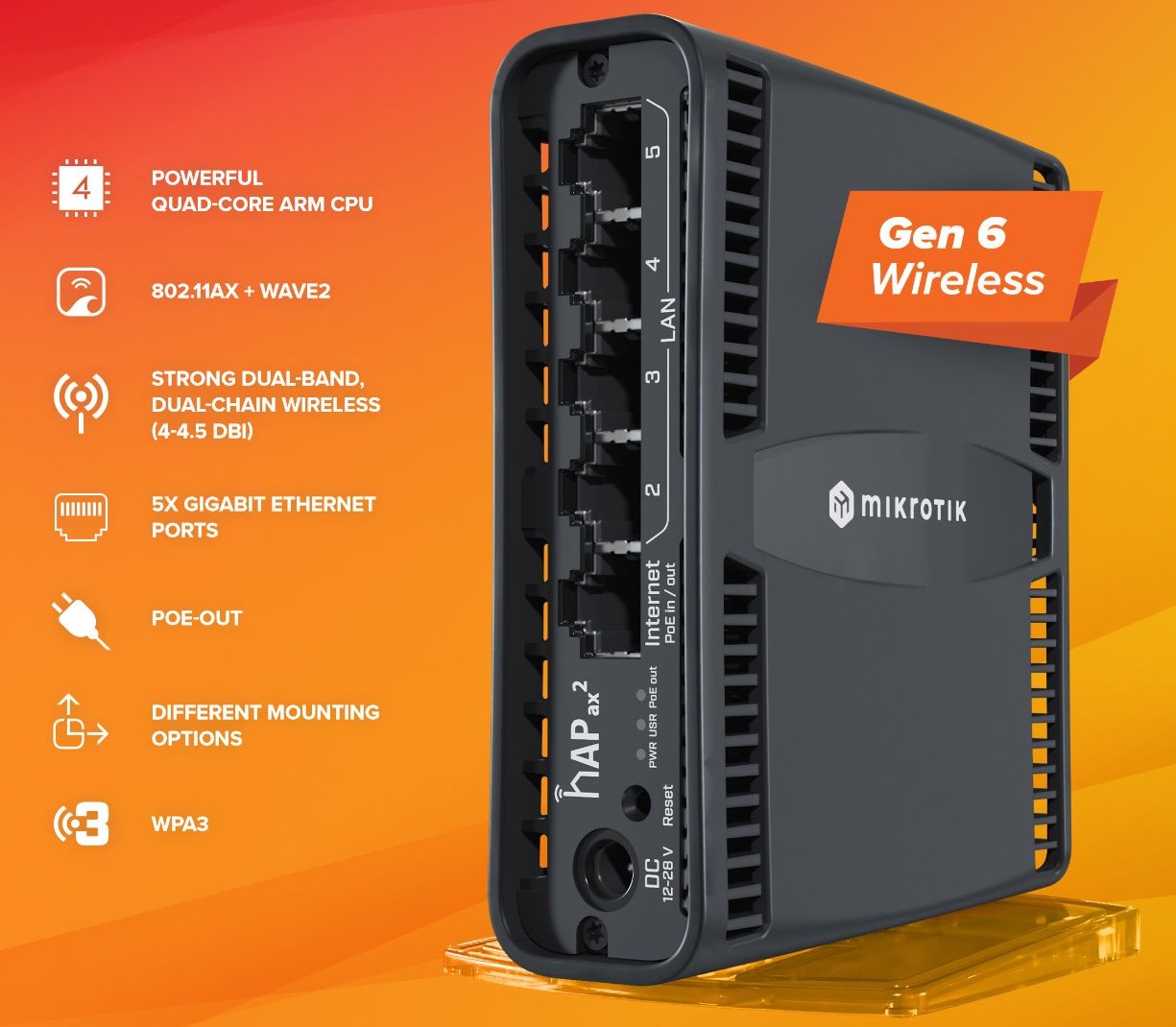

Product description
The 6th generation hAP router from MikroTik is here. This small router for homes and small businesses hAP ax2 or C52iG-5HaxD2HaxD-TC has an L4 license, desktop design and includes 5 Gigabit ports of which the 1st port supports PoE in and PoE out. In addition, the router has two radio parts supporting 802.11a/b/g/n/ac/ax standards allowing simultaneous operation in both bands. In the 2.4GHz band, 2×2 MIMO with a transfer rate of up to 574 Mbps and in the 5GHz band 2×2 MIMO with a transfer rate of 1200 Mbps are supported. The gain of the wireless antennas is 4.5 dBi (2.4 GHz) and 4 dBi (5 GHz).
