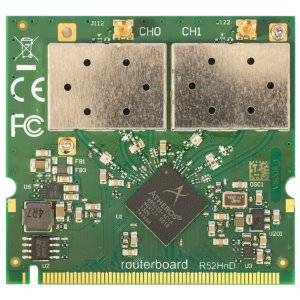

MikroTik RouterBOARD R52HnD, 802.11a/b/g/n High Power Dual Band MiniPCI card with MMCX connectors
We are sorry, this product is no longer in our offer.
MikroTik RouterBOARD R52HnD, 802.11a/b/g/n High Power Dual Band MiniPCI card with MMCX connectors
×
0/0
OARDSBX-DUAL25
1.58 EUR excl. VAT
2.15 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Sensitivity [dBm]:
-100
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
300
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
26
Tx power 5GHz [dBm]:
26
Security:
64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Connectors and Interfaces
Bus type:
miniPCI
RF connectors:
(2) MMCX
Power
Max. power consumption [W]:
7
Physical characteristics
Operating temperature [°C]:
-40 up to 70
Width [mm]:
60
Height [mm]:
7
Depth [mm]:
55
Hardware
Chipset:
Atheros AR9220
Product description
The R52HnD is an update to popular miniPCI wireless card R52n-M. It works in either 2.4 or 5GHz and now has even higher power 400mW (26dBm).
