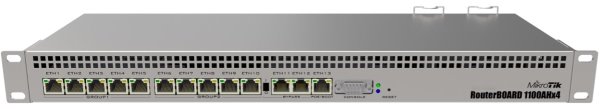

MikroTik RouterBOARD RB1100x4, RB1100AHx4
MikroTik RouterBOARD RB1100x4, RB1100AHx4
×
0/0
Your price excl. VAT
207.52 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 207.59 EUR |
| Your price incl. VAT (21%) | 251.18 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
10 pcs.
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300296 | |
| Part No. | RB1100x4 | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
Normal Edition
RB1100x4
207.52 EUR
RBGPOE
3.86 EUR excl. VAT
4.76 EUR incl. VAT
stiqtyfree:1268
_17:
avail:2
infocode: stock
queu:
In Stock
PC-186A-VDE
4.60 EUR excl. VAT
5.57 EUR incl. VAT
stiqtyfree:62
_17:
avail:2
infocode: stock
queu:
In Stock
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Expected 31.12.2025
PCU5E-5-MSC
3.78 EUR excl. VAT
4.57 EUR incl. VAT
stiqtyfree:429
_17:
avail:2
infocode: stock
queu:
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
Multiple WAN:
Yes
Slot for Memory Card:
microSD
LAN speed:
(13) 10/100/1000Mbps
Gigabit LAN:
Yes
Serial port:
RS-232
Power
Power over Ethernet:
802.3at, 20 .. 57V DC
Power type:
Mains power (230V), PoE, DC terminal
PoE type:
PoE-In (only)
Redundant power supply:
Yes
Max. power consumption [W]:
25
Power via connector/terminal:
230V AC, 12 .. 57V DC
Physical characteristics
Design:
Rackmount
Fans:
No
Chassis design:
Metal
Width [mm]:
444
Height [mm]:
47
Depth [mm]:
148
Hardware
CPU:
AL21400
CPU frequency [MHz]:
1400
CPU cores:
4
Internal storage [MB]:
128
RAM [MB]:
1024
Software
Operating system:
RouterOS - L6
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description
The new RB1100AHx4 series of devices uses a new quad core Cortex A15 chip from Annapurna labs, an Amazon company, The chip is clocked at 1.4 GHz, for a maximum throughput of up to 7.5 Gbps.
The RB1100AHx4 supports IPsec hardware acceleration, features two IEC failover power connectors, supports 802.3af/at PoE input and also have a DC telecom power connector for -48 V DC powering.
Package contains
Download
Datasheet Firmware (RouterOS / SwOS)GPSR
