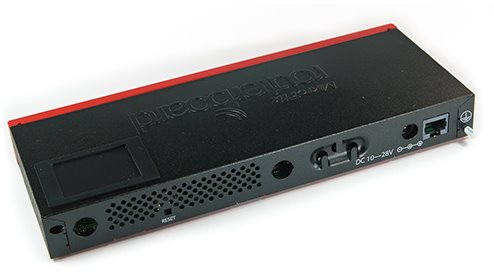

MikroTik RouterBOARD RB2011UiAS-IN
We are sorry, this product is no longer in our offer.

PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock

PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Connectors and Interfaces
Touchscreen:
Yes
Multiple WAN:
Yes
LAN speed:
(5) 10/100/1000Mbps + (5) 10/100Mbps
Gigabit LAN:
Yes
Optical interfaces:
(1) 1000Mbps
Serial port:
RJ45
USB:
Yes
Power
Power over Ethernet:
8 .. 28V DC
Power type:
DC connector, PoE
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
Max. power consumption [W]:
15
Power via connector/terminal:
8 .. 28V DC
Physical characteristics
Design:
Desktop
Fans:
No
Chassis design:
Metal
Operating temperature [°C]:
-35 up to 65
Width [mm]:
228
Height [mm]:
24
Depth [mm]:
90
Hardware
CPU:
AR9344
CPU frequency [MHz]:
600
CPU cores:
1
Internal storage [MB]:
128
RAM [MB]:
128
Software
Operating system:
RouterOS - L5
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

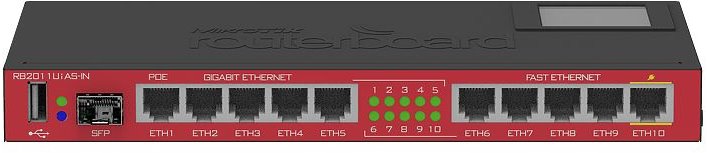

The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options. The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS. RouterBOARD 2011UiAS-IN, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, USB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!) There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
RouterBOARD 2011UiAS-IN comes with desktop enclosure, LCD panel and power supply. Wall mount kit (product code RBWMK) for network closet is available for purchase as an optional accessory.
Articles and reviews
SFP compatibility listDownload
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualGPSR
