MikroTik RouterBOARD RB435G Level 5, 3x Gb LAN, 5x miniPCI, 2x USB, 256 MB, Atheros 680 MHz
We are sorry, this product is no longer in our offer.
MikroTik RouterBOARD RB435G Level 5, 3x Gb LAN, 5x miniPCI, 2x USB, 256 MB, Atheros 680 MHz
×
0/0
Sale
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.12 EUR excl. VAT
3.78 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
Slot for Memory Card:
microSD
LAN speed:
(3) 10/100/1000Mbps
Gigabit LAN:
Yes
Serial port:
RS-232
MiniPCI slots:
5
USB:
Yes
Power
Power over Ethernet:
8 .. 28V DC
Power type:
DC connector, PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
4,5
Power via connector/terminal:
8 .. 30V DC
Physical characteristics
Design:
RouterBOARD
Operating temperature [°C]:
-40 up to 70
Width [mm]:
105
Depth [mm]:
154
Hardware
CPU:
AR7161
CPU frequency [MHz]:
680
CPU cores:
1
Internal storage [MB]:
64
RAM [MB]:
256
Software
Operating system:
RouterOS - L5
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

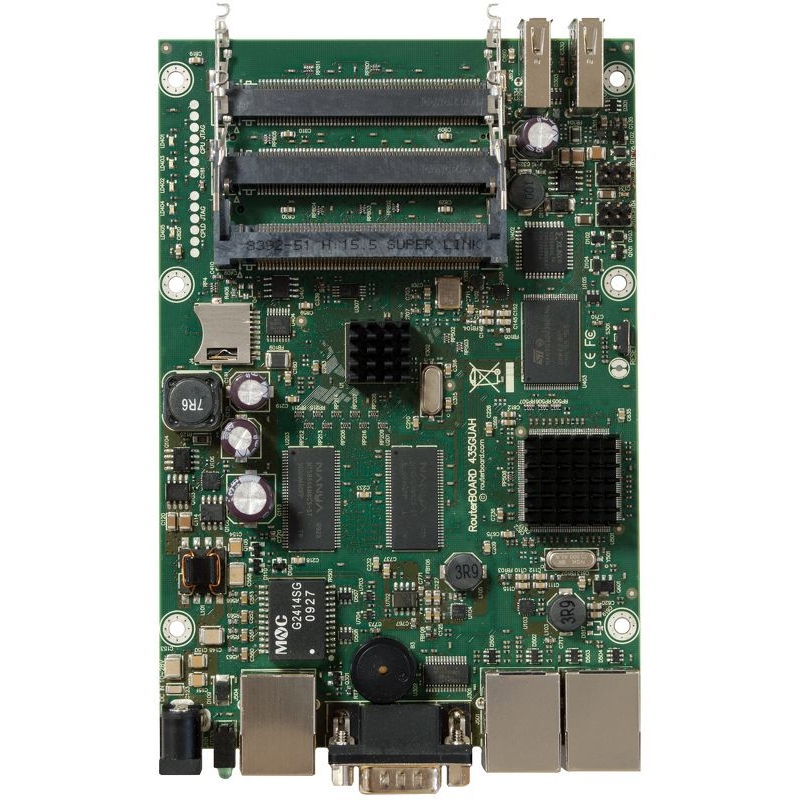

Five miniPCI slots and three Gigabit Ethernet ports give you enough connectivity options to use the RB435G as the central part of your network. Now with Gigabit ports, to properly utilize all the speed 802.11n with Nv2 wireless.
Five miniPCI slots to be used for four sectors and a backbone, or any other configuration you need- RB435G has largest number of miniPCI slots from all our products. If you need to utilize many miniPCI cards - RB435G is your choice!
The two USB 2.0 ports can be used for extending storage, adding a 3G wireless modem for backup connectivity,for a mobile installation or all together.
Download
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
