MikroTik RouterBOARD RB493AH RouterOS Level 5
We are sorry, this product is no longer in our offer.
MikroTik RouterBOARD RB493AH RouterOS Level 5
×
0/0
Sale
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(10) 10/100Mbps
Serial port:
RS-232
MiniPCI slots:
3
Power
Power over Ethernet:
10 .. 28V DC
Power type:
DC connector, PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
3
Power via connector/terminal:
10 .. 28V DC
Physical characteristics
Design:
RouterBOARD
Operating temperature [°C]:
-40 up to 70
Width [mm]:
105
Depth [mm]:
160
Hardware
CPU:
AR7161
CPU frequency [MHz]:
680
CPU cores:
1
Internal storage [MB]:
64
RAM [MB]:
128
Software
Operating system:
RouterOS - L5
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

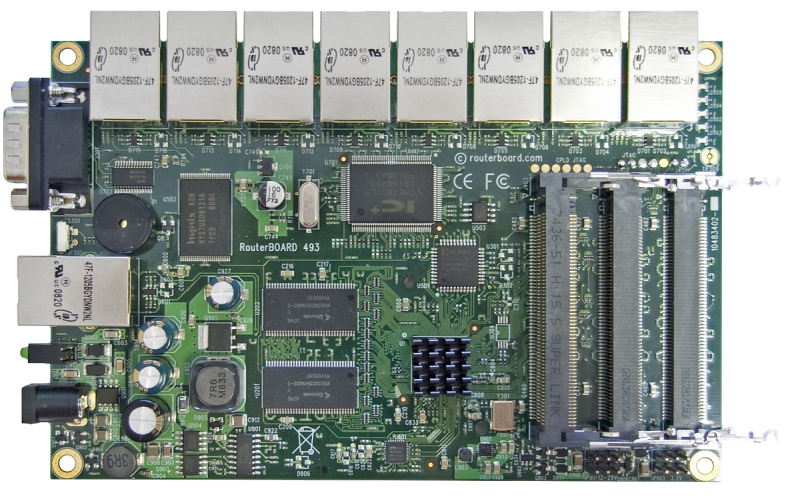

The RB493AH has nine ethernet ports and three miniPCI slots, it also has a switch chip, so the ethernet ports 2-9 can be grouped together to make it act as a switch.
RB493AH includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.
The RB493AH model includes the higher speed Atheros 680MHz CPU, more memory, and a Level5 license for more simultaneous tunnel interfaces and hotspot users.
Download
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualGPSR
