MikroTik RouterBOARD RB493G Level 5, 9x Gb LAN, 3x miniPCI, 256 MB, Atheros 680 MHz
We are sorry, this product is no longer in our offer.
MikroTik RouterBOARD RB493G Level 5, 9x Gb LAN, 3x miniPCI, 256 MB, Atheros 680 MHz
×
0/0
Sale
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
Slot for Memory Card:
microSD
LAN speed:
(9) 10/100/1000Mbps
Gigabit LAN:
Yes
Serial port:
RS-232
MiniPCI slots:
3
USB:
Yes
Power
Power over Ethernet:
10 .. 28V DC
Power type:
DC connector, PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
3
Power via connector/terminal:
10 .. 28V DC
Physical characteristics
Design:
RouterBOARD
Operating temperature [°C]:
-40 up to 70
Width [mm]:
105
Depth [mm]:
160
Hardware
CPU:
AR7161
CPU frequency [MHz]:
680
CPU cores:
1
Internal storage [MB]:
64
RAM [MB]:
256
Software
Operating system:
RouterOS - L5
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

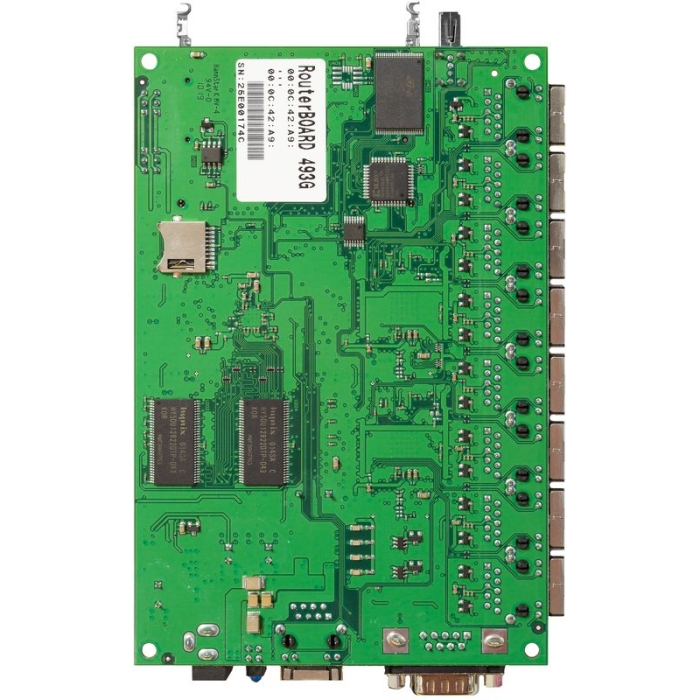

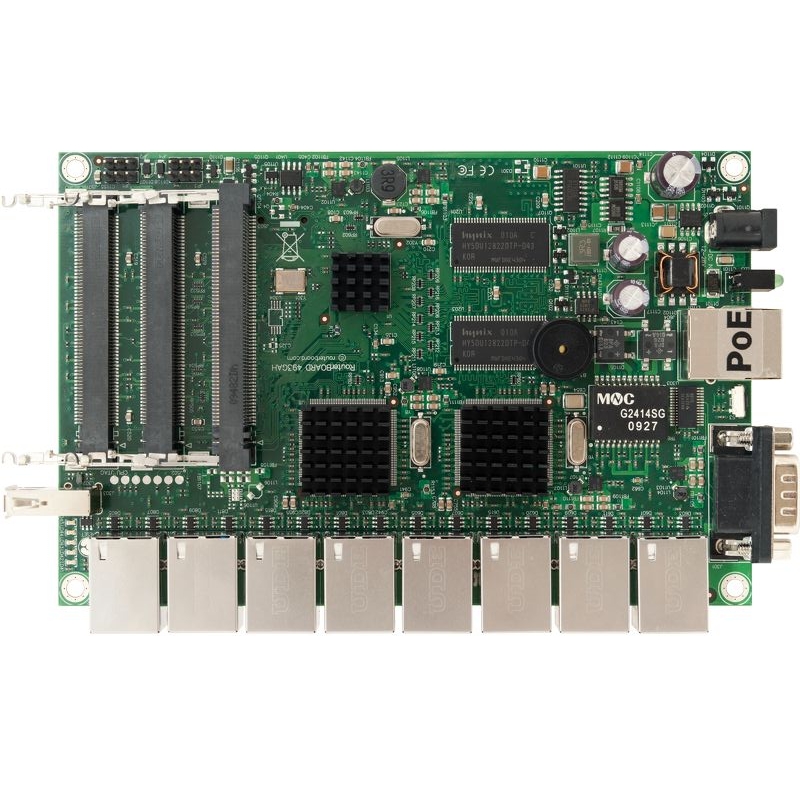

The RB493G has nine Gigabit ethernet ports, three miniPCI slots, and two switch chips, so the ethernet ports can be connected together in two switch groups for wire speed throughput.
The RB493G also has a USB 2.0 port and a microSD card slot for adding more storage or a 3G USB modem for backup connectivity.
The heart of this device is a high performance Atheros AR7161 CPU and it features 256MB of built in RAM. RB493G includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.
