MikroTik RouterBOARD RB953GS-5HnT-RP, 5Ghz802.11a/n, L5, 3xGLAN, 2x miniPCI-e, 2xSFP, 2xSIM, 3xSMA, 128 MB, Atheros 720 MHz
We are sorry, this product is no longer in our offer.
MikroTik RouterBOARD RB953GS-5HnT-RP, 5Ghz802.11a/n, L5, 3xGLAN, 2x miniPCI-e, 2xSFP, 2xSIM, 3xSMA, 128 MB, Atheros 720 MHz
×
0/0
Sale
-15%
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.71 EUR excl. VAT
4.49 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Tx power [dBm]:
32
Wireless frequency:
5 GHz
WiFi standards:
802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
433
5GHz MIMO:
1 x 1 SISO
Type of antenna:
Detachable
Connectors and Interfaces
RF connectors:
(3) SMA female
LAN speed:
(3) 10/100/1000Mbps
Gigabit LAN:
Yes
MiniPCI-e slots:
2
SIM slot:
Yes
SIM slots quantity:
2
USB:
Yes
Power
Power over Ethernet:
8 .. 30V DC
Power type:
DC connector, PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
25
Power via connector/terminal:
8 .. 30V DC
Physical characteristics
Design:
RouterBOARD
Width [mm]:
105
Height [mm]:
24
Depth [mm]:
183
Hardware
CPU:
QCA9558
CPU frequency [MHz]:
720
CPU cores:
1
Internal storage [MB]:
128
RAM [MB]:
128
Software
Operating system:
RouterOS - L5
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

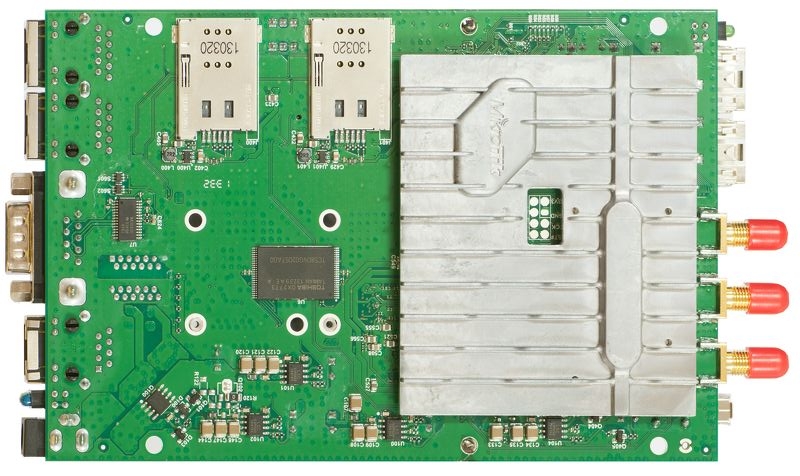

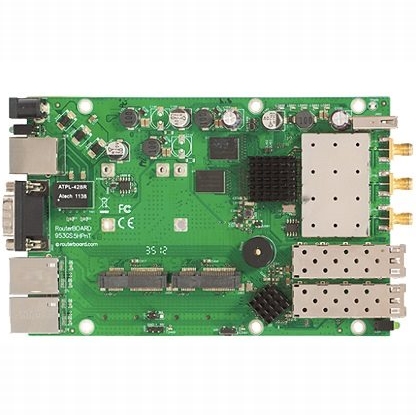

RouterBOARD 953GS-5HnT-RP is our first product with 5GHz 3x3 MIMO Triple Chain support. It has a powerful (up to 1600mW!) Atheros QCA9558 CPU 802.11a/n wireless support with three RPSMA connectors.
RB953GS-5HnT is equipped with a new Scorpion 720Mhz CPU, 128MB RAM and three Gigabit Ethernet ports, to take advantage of high-speed 3x3 MIMO wireless. Moreover, it comes with two SFP cages to accommodate FTTH and fiber ring requirements.
Handy additions are two miniPCI-express slots and two SIM slots, for multiple 3G/4G connections or wireless expansion.
Unit comes with preinstalled RouterOS Level5 license.
Download
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualGPSR
