MikroTik RouterBOARD RBLHG-2nD-XL, LHG XL 2
We are sorry, this product is no longer in our offer.
MikroTik RouterBOARD RBLHG-2nD-XL, LHG XL 2
×
0/0
Sale
QMP-LHG
4.45 EUR excl. VAT
5.38 EUR incl. VAT
In Stock
LHGmount
8.91 EUR excl. VAT
10.78 EUR incl. VAT
In Stock
solidMOUNT
19.82 EUR excl. VAT
23.98 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Tx power [dBm]:
25
Wireless frequency:
2.4 GHz
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
Elevation beam width (-6dB) [°]:
18
Azimuth beam width (-6dB) [°]:
18
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
21
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
10 .. 30V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
5
Physical characteristics
Design:
Outdoor
Operating temperature [°C]:
-40 up to 70
Width [mm]:
550
Height [mm]:
550
Depth [mm]:
245
Hardware
CPU:
QCA9533
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating system:
RouterOS - L3
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

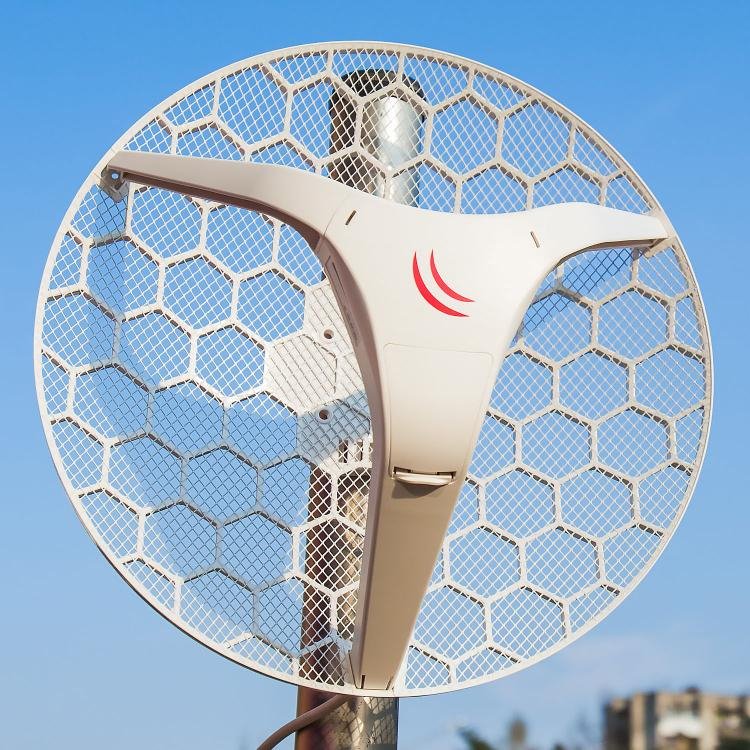

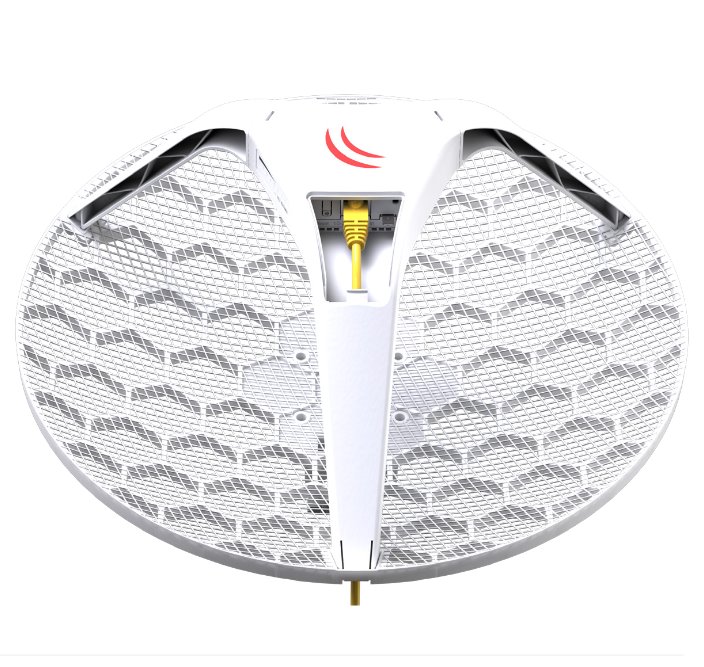

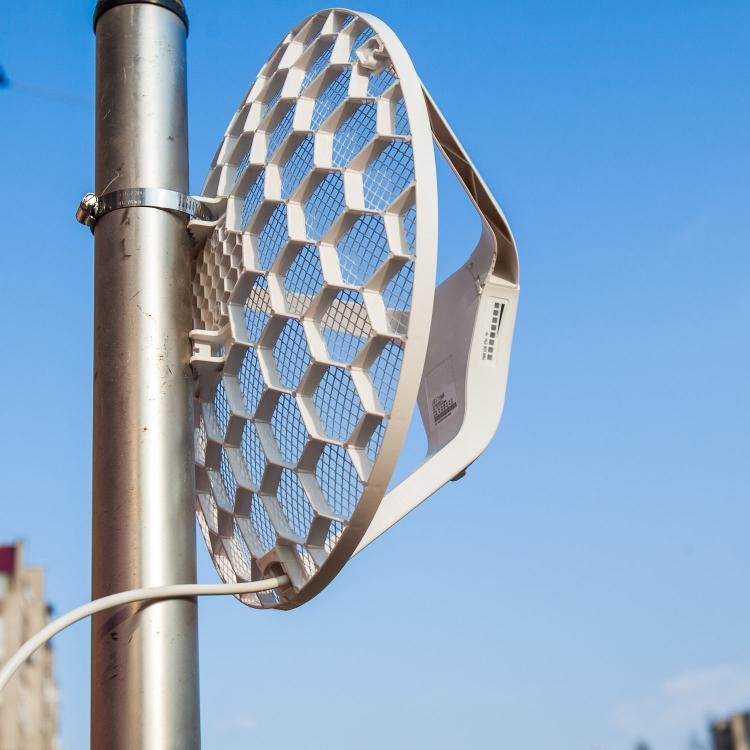

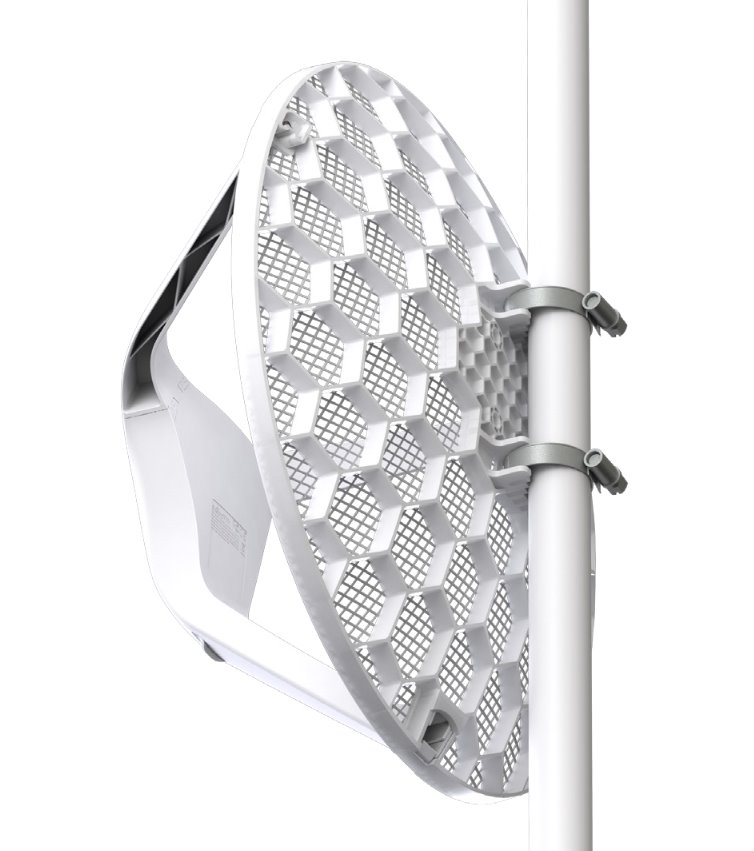

The Light Head Grid (LHG XL 2) is a compact and light wireless device with an integrated 21 dBi grid antenna at a revolutionary price for 2.4GHz frequency band. It is perfect for point to point links or for use as a CPE at longer distances. Compared to the standard version, antenna gain is 3 dBi higher than standard version.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
The device comes disassembled for compact shipping, but is very easy to assemble. Grid includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.

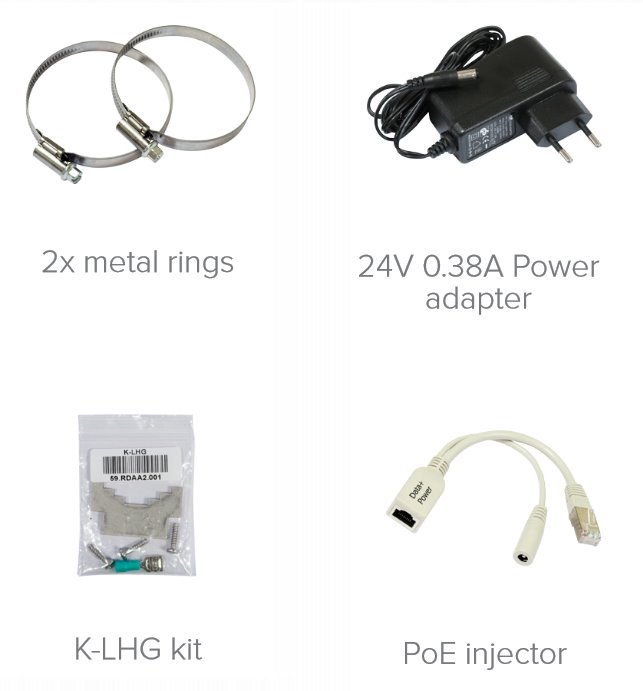

Package contains
Download
Datasheet Firmware (RouterOS / SwOS)GPSR
