MikroTik RouterBOARD RBLHGG-5acD-XL, LHG XL 5 ac, L3
We are sorry, this product is no longer in our offer.
MikroTik RouterBOARD RBLHGG-5acD-XL, LHG XL 5 ac, L3
×
0/0
Sale
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300355 | |
| Part No. | RBLHGG-5acD-XL | |
You have a choice of 2 variantscompare all
1 pack
RBLHGG-5acD-XL
92.26 EUR
LHGmount
9.76 EUR excl. VAT
11.81 EUR incl. VAT
In Stock
solidMOUNT
21.68 EUR excl. VAT
26.23 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.58 EUR excl. VAT
0.70 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.16 EUR excl. VAT
3.82 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Tx power [dBm]:
25
Wireless frequency:
5 GHz
WiFi standards:
802.11ac, 802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
866
Tx power 5GHz [dBm]:
25
Elevation beam width (-6dB) [°]:
7
Azimuth beam width (-6dB) [°]:
7
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
27
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
SIM slots quantity:
2
Power
Power over Ethernet:
10 .. 30V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
7
Physical characteristics
Protection class:
IP54
Design:
Outdoor
Operating temperature [°C]:
-40 up to 70
Width [mm]:
550
Height [mm]:
550
Depth [mm]:
245
Hardware
CPU:
IPQ-4018
CPU frequency [MHz]:
716
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
256
Software
Operating system:
RouterOS - L3
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

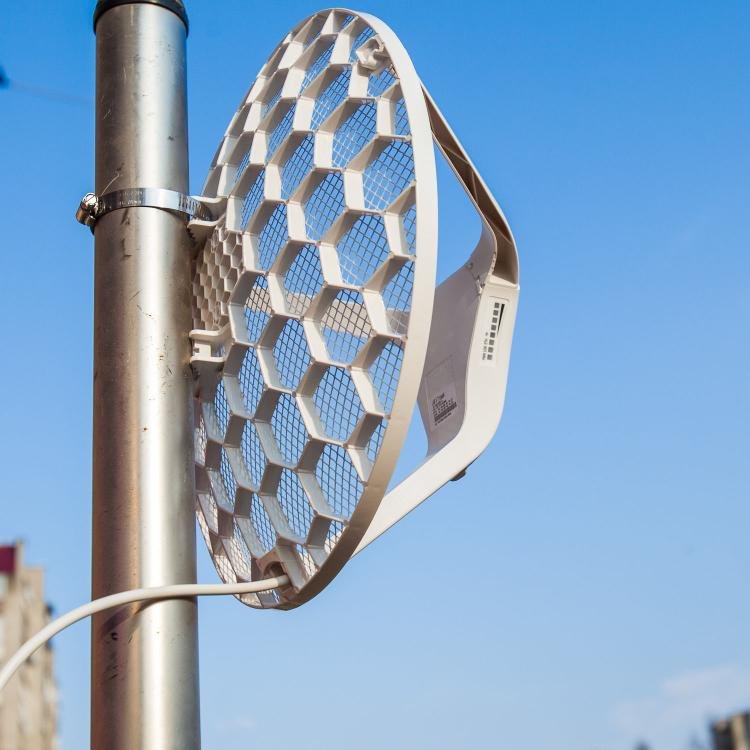

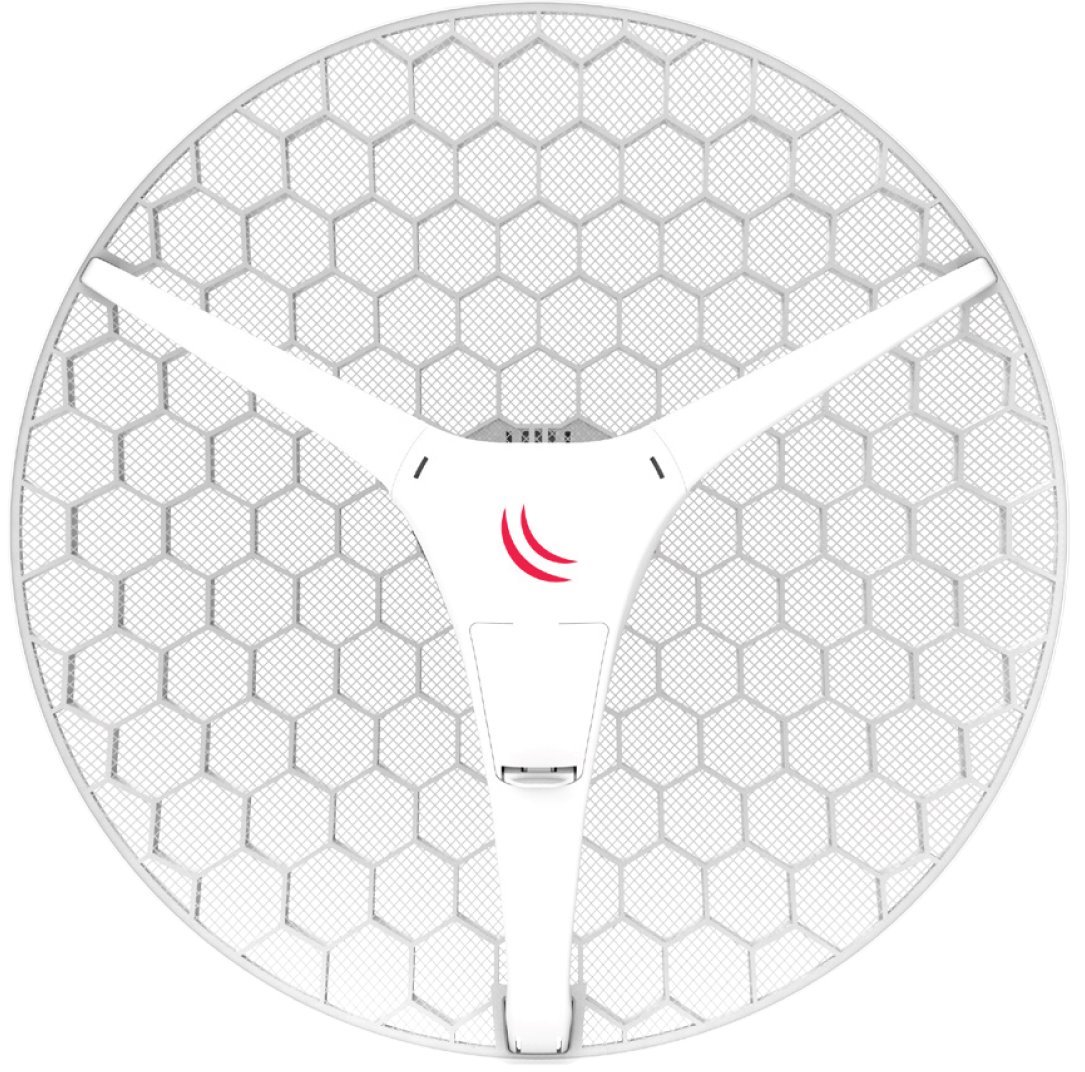

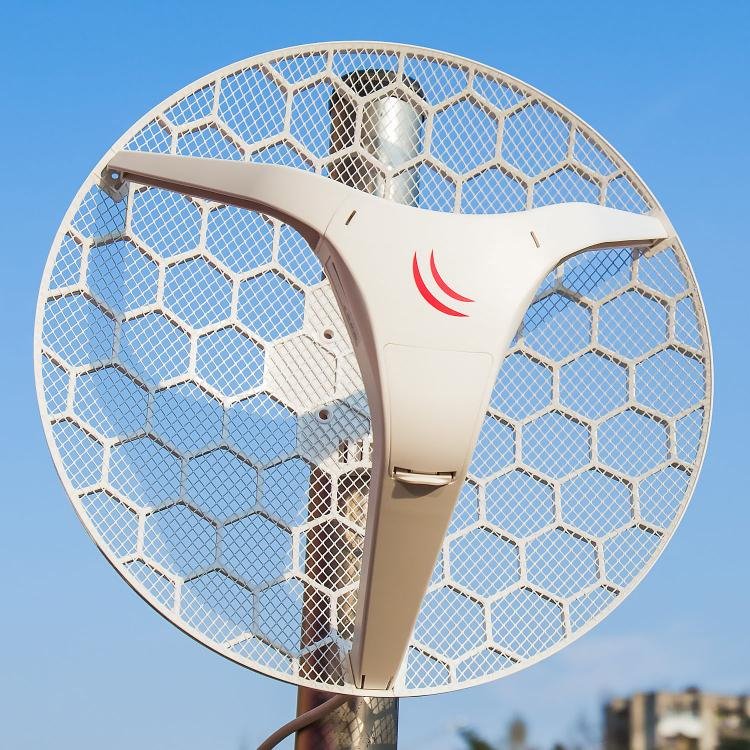

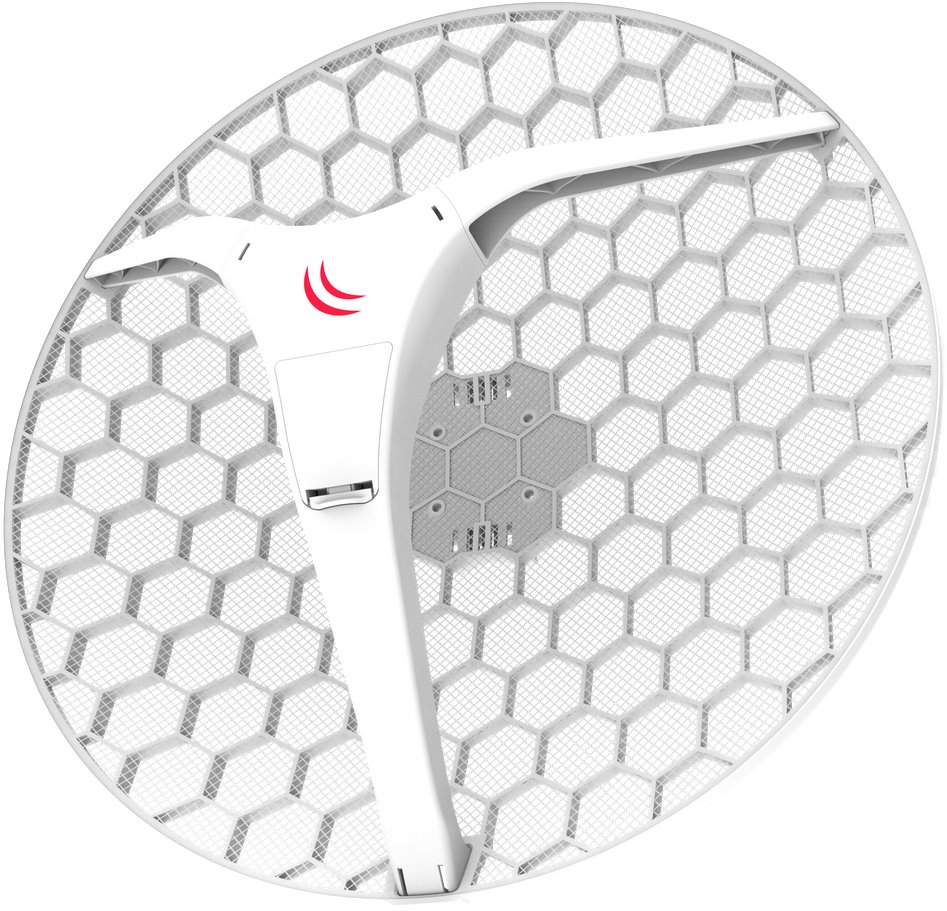

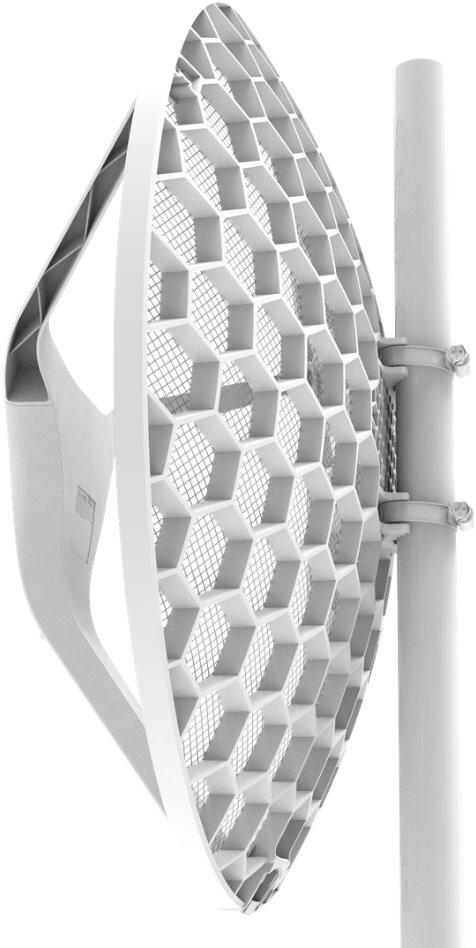

The Light Head Grid (LHG XL 5 ac) is a compact and light wireless device with an integrated 27 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances. Compared with the standard version, antenna gain is 2,5dBi higher than standard version. The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
The device comes disassembled for compact shipping, but is very easy to assemble it. Antenna includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.

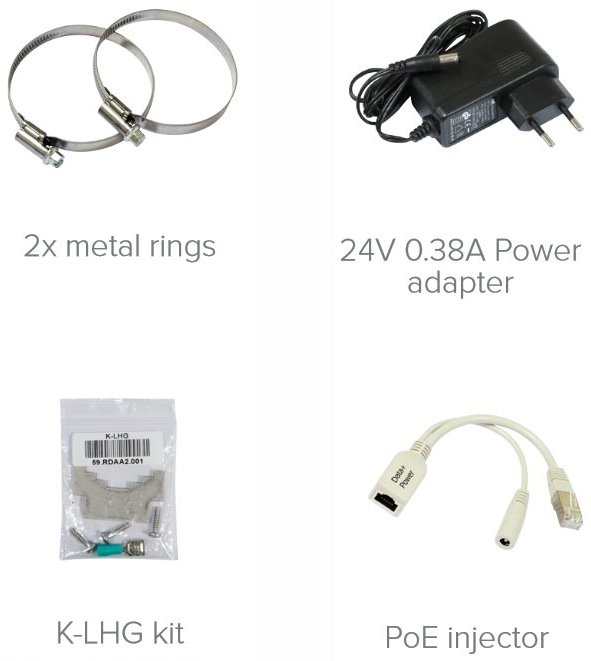

Package contains
Download
CE Datasheet Firmware (RouterOS / SwOS)Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
