MikroTik RouterBOARD RBLHGR&R11e-LTE, LHG LTE kit
We are sorry, this product is no longer in our offer.
MikroTik RouterBOARD RBLHGR&R11e-LTE, LHG LTE kit
×
0/0
Sale
LHGmount
9.83 EUR excl. VAT
11.89 EUR incl. VAT
In Stock
solidMOUNT
21.83 EUR excl. VAT
26.41 EUR incl. VAT
In Stock
QMP-LHG
4.91 EUR excl. VAT
5.94 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.13 EUR excl. VAT
3.79 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Wireless frequency:
LTE
Elevation beam width (-6dB) [°]:
25
Azimuth beam width (-6dB) [°]:
25
Type of antenna:
Built-in
Internal antennas:
2

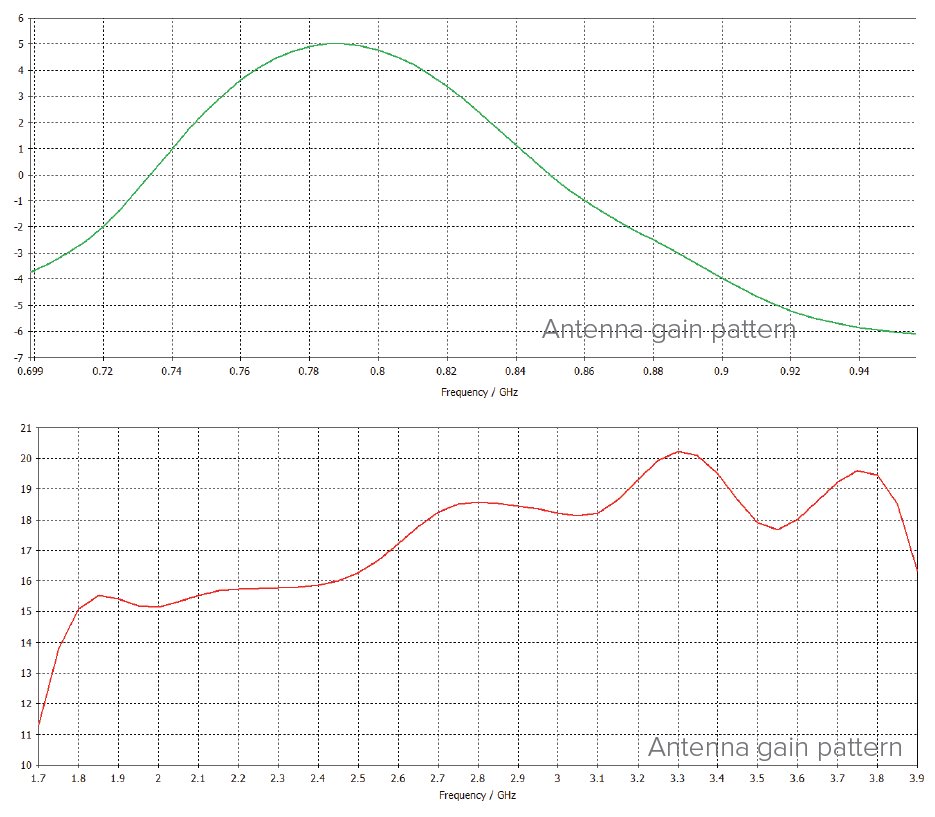

Antenna gain [dBi]:
21
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
SIM slot:
Yes
SIM slots quantity:
1
Power
Power over Ethernet:
802.3af, 802.3at, 12 .. 57V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
6
Physical characteristics
Design:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 60
Width [mm]:
391
Height [mm]:
391
Depth [mm]:
227
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating mode:
3G/4G Router
Operating system:
RouterOS - L3
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

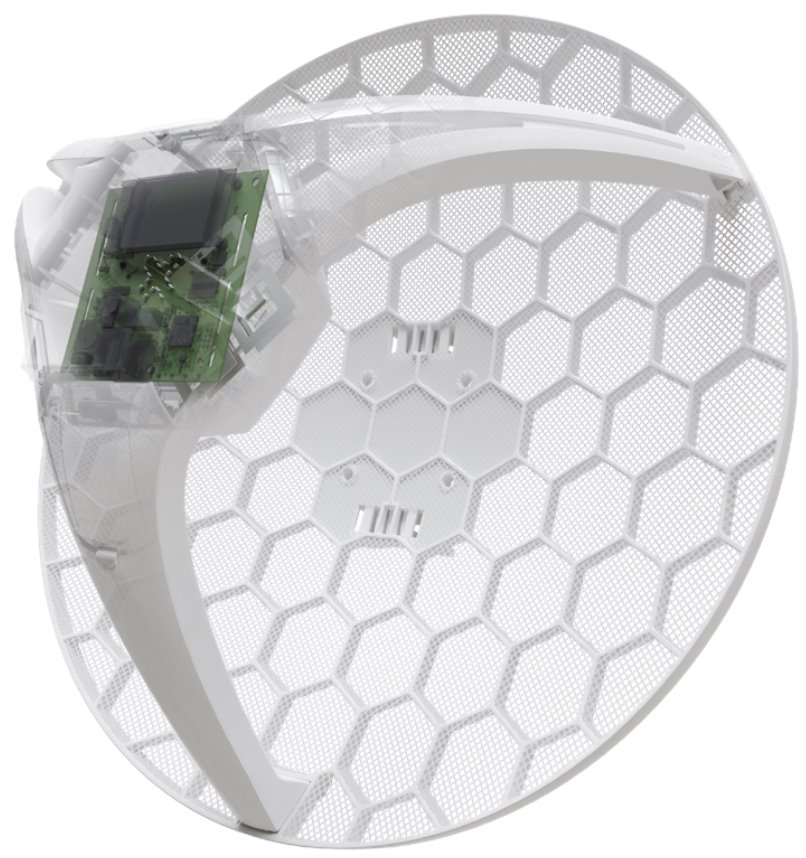

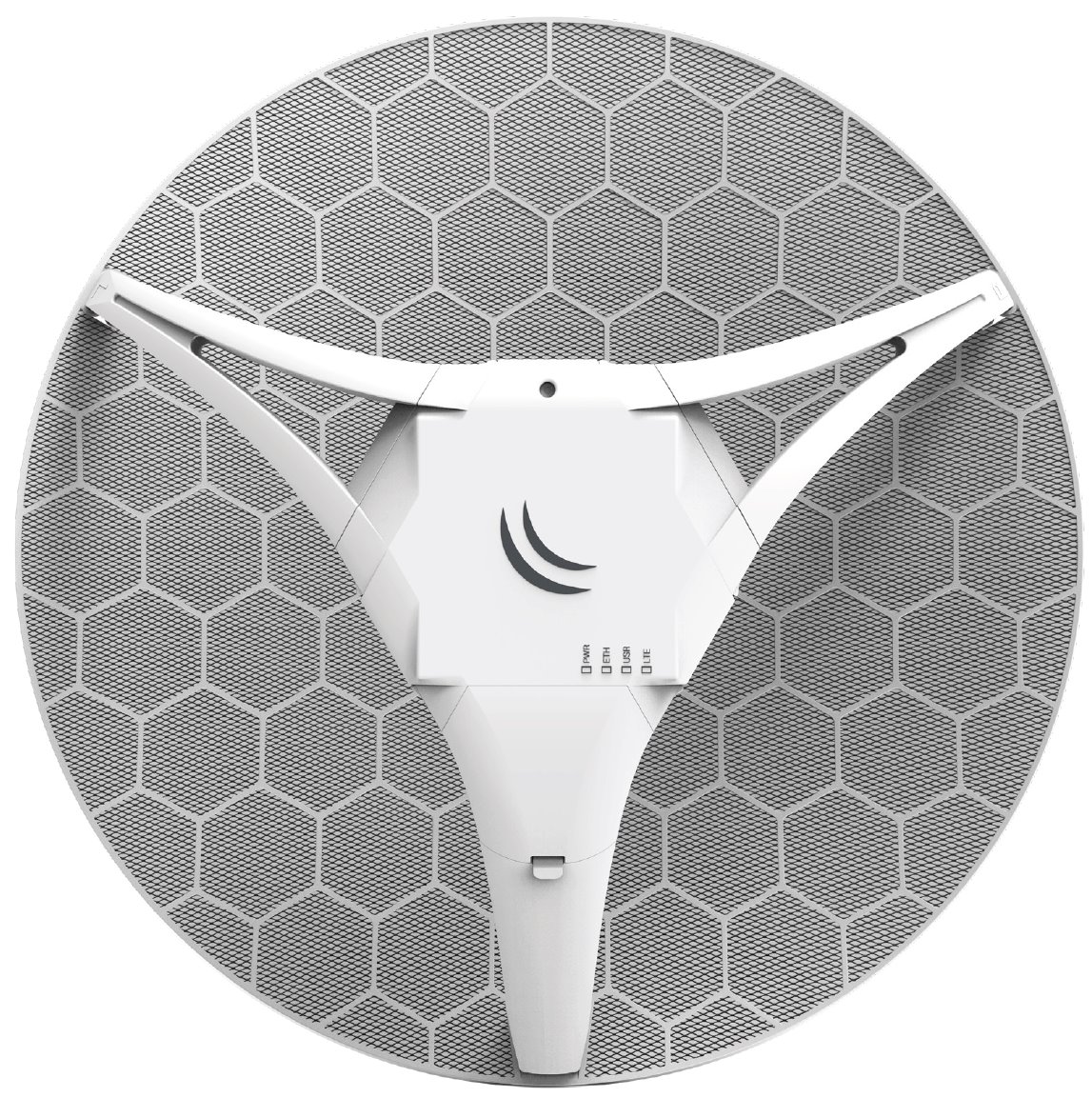

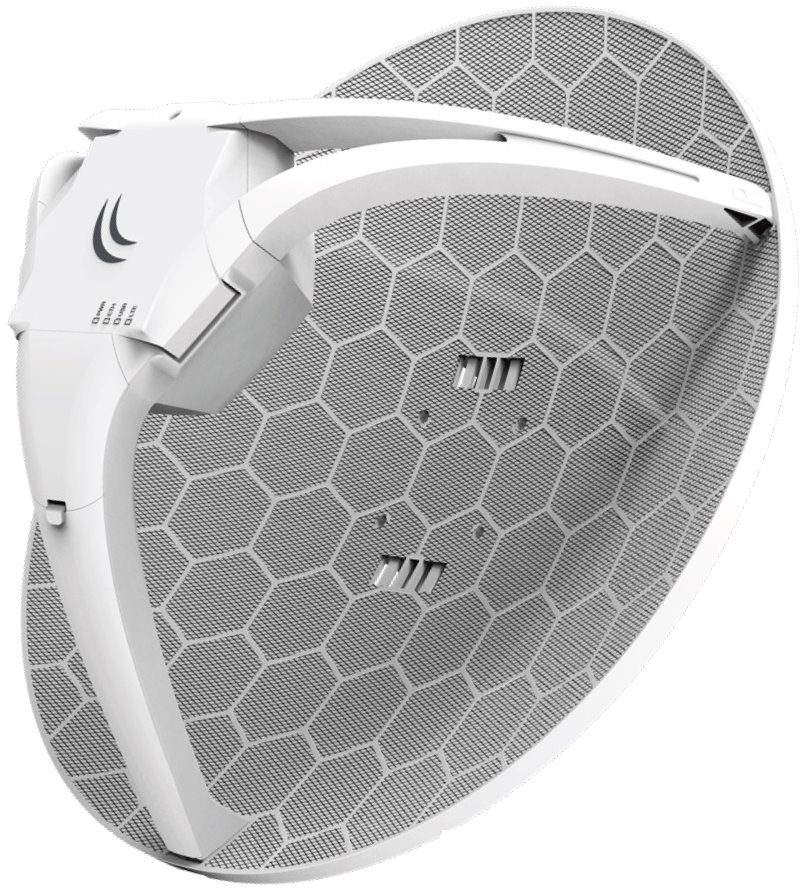

The LHG LTE kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.
Supported bands

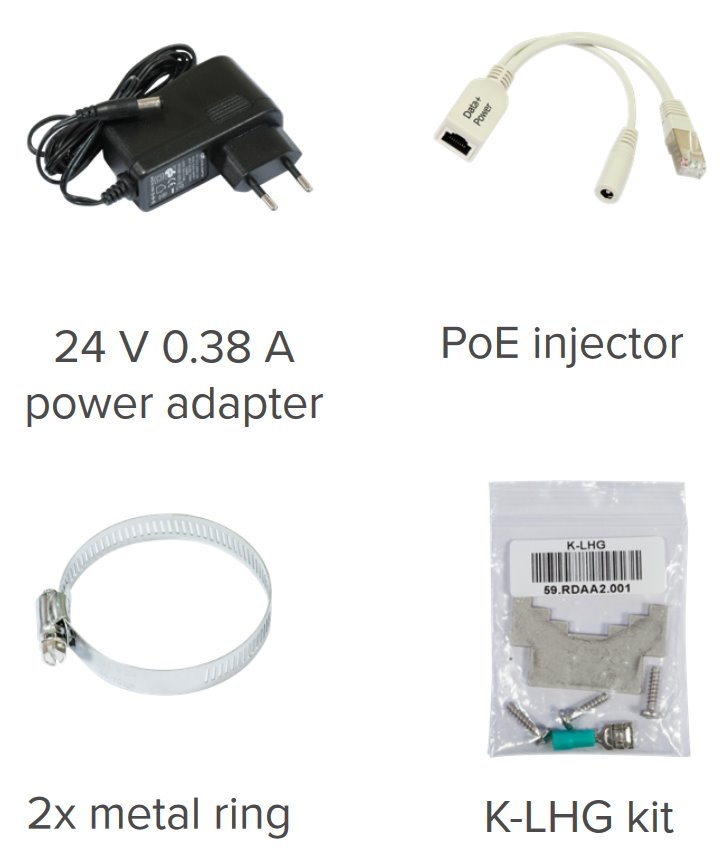

Package contains
Download
CE Datasheet Firmware (RouterOS / SwOS)Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
