MikroTik RouterBOARD RBSXTG-5HPnD-SAr2, SXT SA5, L4
We are sorry, this product is no longer in our offer.
UBI-BR
5.90 EUR excl. VAT
7.14 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Tx power [dBm]:
30
Wireless frequency:
5 GHz
WiFi standards:
802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
300
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
14
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
USB:
Yes
Power
Power over Ethernet:
8 .. 32V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
7
Physical characteristics
Design:
Outdoor
Operating temperature [°C]:
-30 up to 80
Width [mm]:
140
Height [mm]:
140
Depth [mm]:
56
Hardware
CPU:
AR9344
CPU frequency [MHz]:
600
CPU cores:
1
Internal storage [MB]:
128
RAM [MB]:
64
Software
Operating system:
RouterOS - L4
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description
SXTG-5HPnD-SAr2 is a low cost, high speed 5GHz outdoor wireless sector access point. It has a 90 degree antenna to provide a wider coverage than our previous SXT units.

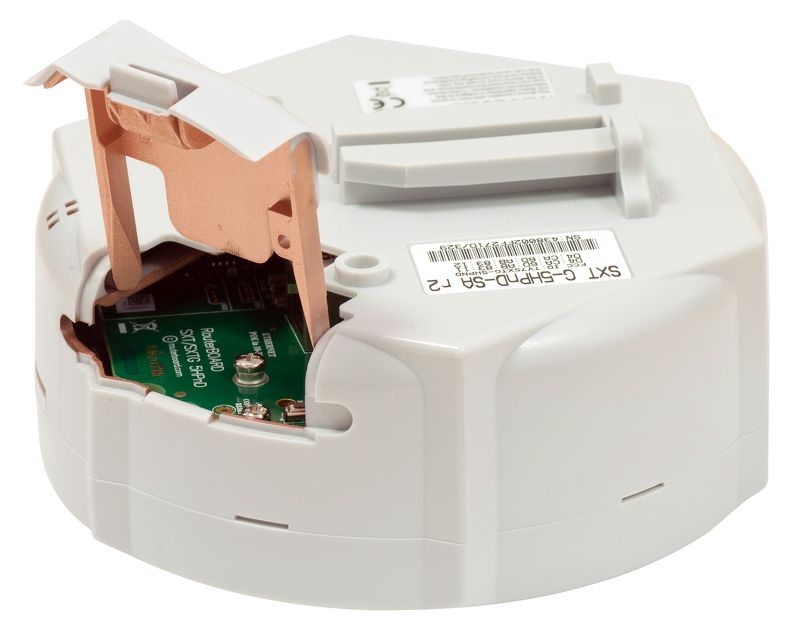

Complete with a ready to mount enclosure and built-in 14dBi antenna, the package contains everything you need to set it up in a matter of minutes. The inside of the case is covered in special shielding to improve operation in high interference areas and antenna front to back ratio.

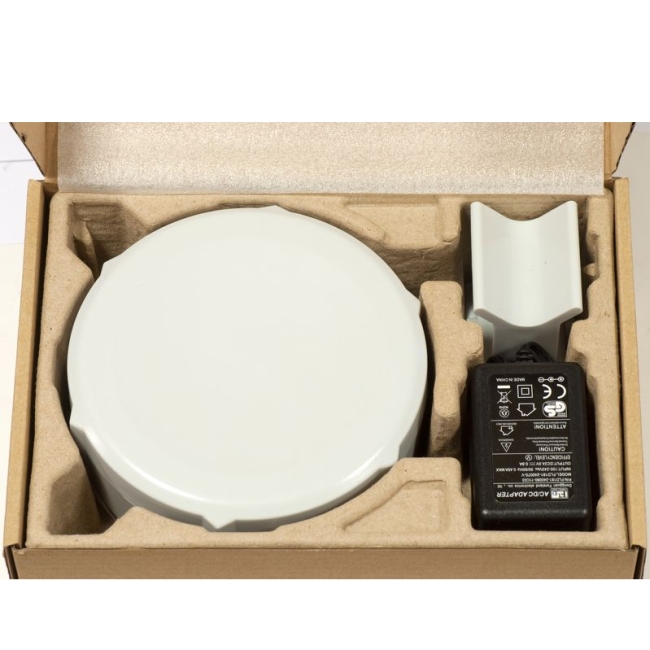

Box contains: SXT wireless device with integrated antenna, pole mounting bracket, mounting ring, PoE injector, power adapter, quick setup guide.
Download
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualGPSR
