MikroTik RouterBOARD RBSXTR&R11e-4G, SXT 4G kit
We are sorry, this product is no longer in our offer.
MikroTik RouterBOARD RBSXTR&R11e-4G, SXT 4G kit
×
0/0
Sale
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300526 | |
| Part No. | RBSXTR&R11e-4G | |
You have a choice of 2 variantscompare all
4G
RBSXTR&R11e-4G
98.82 EUR
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
LTE
Elevation beam width (-6dB) [°]:
60
Azimuth beam width (-6dB) [°]:
60
Type of antenna:
Built-in
Internal antennas:
1
Antenna gain [dBi]:
10,5
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(3) 1800 MHz, (7) 2600 MHz, (20) 800 MHz, (41n) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (31) 450 MHz
Connectors and Interfaces
LAN speed:
(2) 10/100Mbps
SIM slot:
Yes
SIM slots quantity:
2
Power
Power over Ethernet:
802.3af, 802.3at, 18 .. 57V DC
Power type:
PoE
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
Max. power consumption [W]:
6
Physical characteristics
Design:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 60
Width [mm]:
140
Height [mm]:
140
Depth [mm]:
103
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating mode:
Cellular router
Operating system:
RouterOS - L3
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

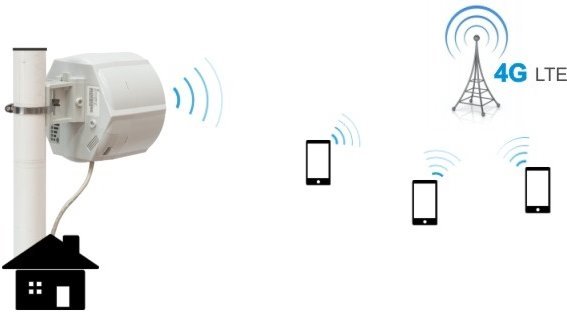

The SXT 4G kit (product code RBSXTR&R11e-4G) is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. Unit is shipped with a 24 V power supply, but can support full range 18 - 57 V and is 802.3af/at compliant.
The device has a built in high quality 4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.
RBSXTR&R11e-4G includes LTE modem that supports International LTE bands 3, 7, 20, 31, 41n, 42 and 43.
Comparison with LTE version
In comparison with model RBSXTR&R11e-LTE, the SXT 4G kit support only 4G/LTE networks, there is no backward compatibility with 3G/2G networks.
Package contains
Download
Datasheet Firmware (RouterOS / SwOS) Quick GuideGPSR
