MikroTik RouterBOARD RBSXTR, SXT R, ROS L3 (WITHOUT LTE MODEM)
We are sorry, this product is no longer in our offer.
MikroTik RouterBOARD RBSXTR, SXT R, ROS L3 (WITHOUT LTE MODEM)
×
0/0
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
LTE
Elevation beam width (-6dB) [°]:
60
Azimuth beam width (-6dB) [°]:
60
Type of antenna:
Built-in

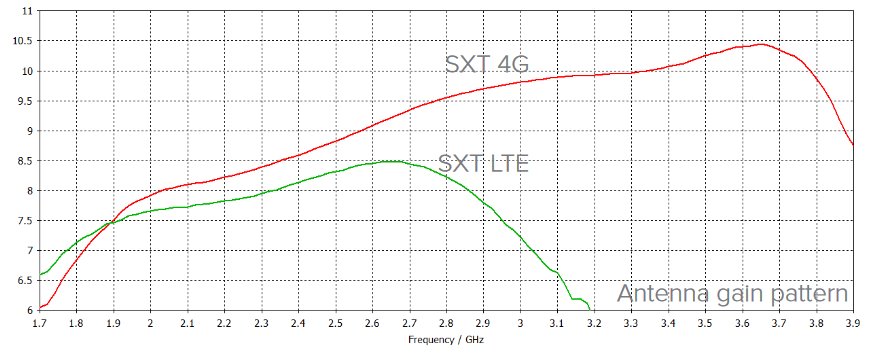

Antenna gain [dBi]:
9
Connectors and Interfaces
LAN speed:
(2) 10/100Mbps
MiniPCI-e slots:
1
SIM slot:
Yes
SIM slots quantity:
2
Power
Power over Ethernet:
18 .. 57V DC
Power type:
PoE
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
Max. power consumption [W]:
6
Physical characteristics
Design:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 60
Width [mm]:
140
Height [mm]:
140
Depth [mm]:
105
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating mode:
Cellular router
Operating system:
RouterOS - L3
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

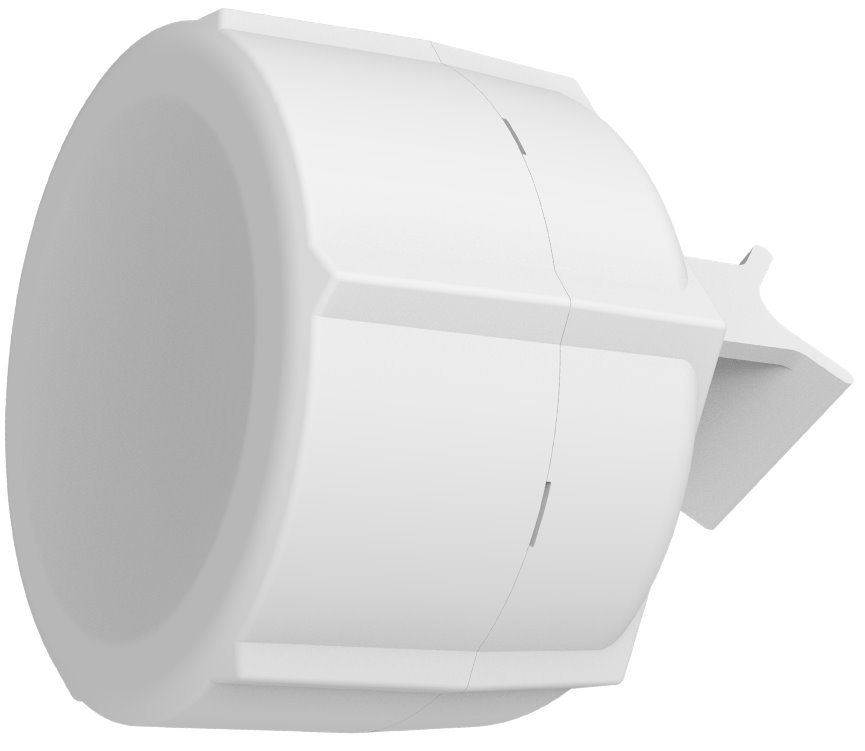

SXT R is variant of popular unit RB SXT without 802.11 standards support. There is free miniPCIe slot for LTE/4G modem.
In contrast to SXT LTE kit and SXT 4G kit this model is not equipped with LTE/4G modem. So you have the option to use your favorit (and compatible) miniPCIe modem which supports needed frequencies.
SXT R is a device for remote locations that are within cellular network coverage. However, due to high gain antenna, it can provide connectivity for your building even where cell phones can’t.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. Unit is shipped with a 24 V power supply, but can support full range 18 - 57 V and is 802.3af/at compliant.
The device has a built in two Micro SIM slots for backup link.

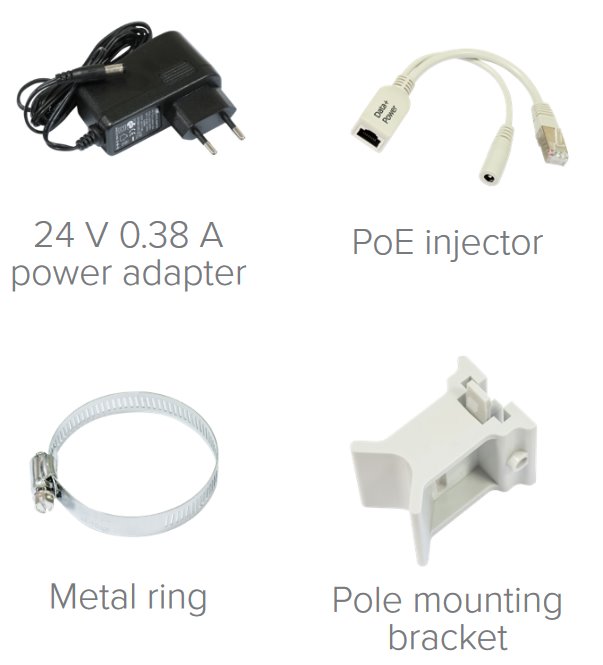

Package contains
Download
CE Datasheet Firmware (RouterOS / SwOS)GPSR
