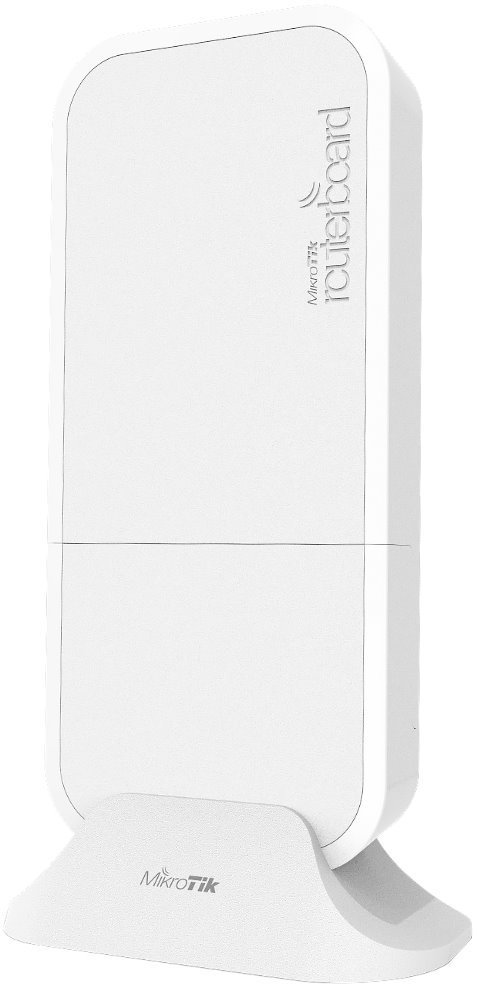

MikroTik RouterBOARD RBwAPGR-5HacD2HnD, wAP R ac, ROS L4
We are sorry, this product is no longer in our offer.
MikroTik RouterBOARD RBwAPGR-5HacD2HnD, wAP R ac, ROS L4
×
0/0
Sale
ODR-wAP
18.72 EUR excl. VAT
22.65 EUR incl. VAT
Not in stock
ML-WAP-H
9.14 EUR excl. VAT
11.06 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11ac, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
22
Tx power 5GHz [dBm]:
24
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
4
Antenna gain [dBi]:
2,5, 4
Connectors and Interfaces
LAN speed:
(2) 10/100/1000Mbps
Gigabit LAN:
Yes
MiniPCI-e slots:
1
SIM slot:
Yes
SIM slots quantity:
1
Power
Power over Ethernet:
802.3af, 802.3at, 18 .. 57V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
11
Power via connector/terminal:
10 .. 57V DC
Physical characteristics
Design:
On the wall, Desktop, Outdoor, Ceiling
Buttons:
Reset
Operating temperature [°C]:
-30 up to 60
Width [mm]:
85
Height [mm]:
185
Depth [mm]:
30
Hardware
CPU:
IPQ-4018
CPU frequency [MHz]:
716
CPU cores:
4
Internal storage [MB]:
16
RAM [MB]:
128
Software
Operating system:
RouterOS - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description
A small package with a huge ambition – the wAP ac R is an extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on our popular weatherproof wAP form factor. Enjoy wireless experience anywhere – indoors or outdoors! wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30°C to +60°C and can be easily mounted on walls, ceilings or poles.
High performance
Don’t be fooled by the compact size – this device is powered by a four core 716 MHz CPU and 128 MB RAM, capable of handling heavy loads. Dual-chain 2.4 GHz and dual-chain 5GHz wireless for dual concurrent AP coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.

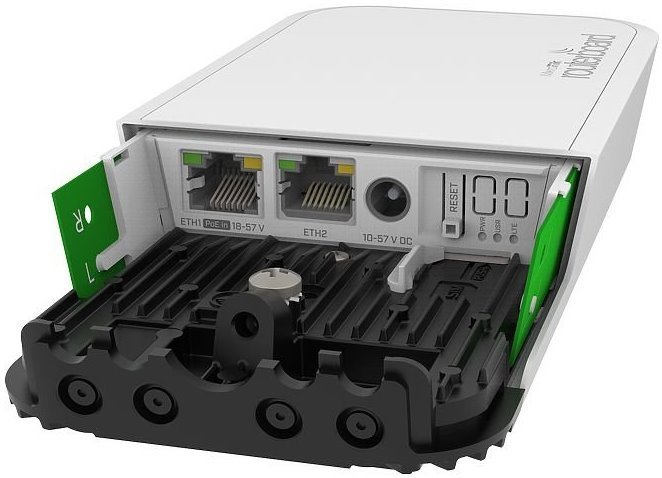

It has two Gigabit Ethernet ports and miniPCIe slot for LTE modem of your choice (not included).
High performance, great value, astonishing durability, functional and non-intrusive design – wAP ac LTE will meet most demands without making sacrifices.

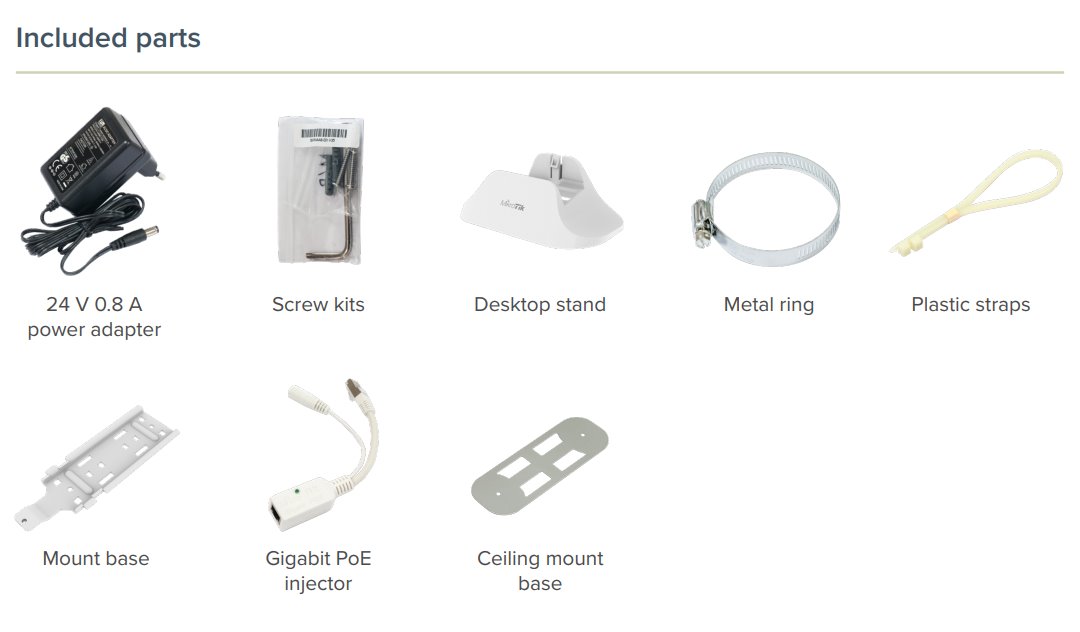

Package contains
Download
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS SW manualTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
