MikroTik RouterBOARD RBwAPR-2nD&R11e-4G, wAP 4G Kit, ROS L4
We are sorry, this product is no longer in our offer.
Manufacturer |
MikroTik |
|
---|---|---|
Code | 10300528 | |
Part No. | RBwAPR-2nD&R11e-4G |
ODR-wAP
18.72 EUR excl. VAT
22.65 EUR incl. VAT
Not in stock
ML-WAP-H
9.14 EUR excl. VAT
11.06 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Sensitivity [dBm]:
-96
Wireless frequency:
2.4 GHz, LTE
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
22
Security:
WPA2-PSK AES/TKIP
Azimuth beam width (-6dB) [°]:
360
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
1
Detachable antennas:
2
Antenna gain [dBi]:
4,5
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(3) 1800 MHz, (7) 2600 MHz, (20) 800 MHz, (41n) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (31) 450 MHz
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
MiniPCI-e slots:
1
SIM slot:
Yes
SIM slots quantity:
1
Power
Power over Ethernet:
9 .. 30V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
8
Power via connector/terminal:
9 .. 30V DC
Physical characteristics
Design:
Desktop, Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 60
Width [mm]:
85
Height [mm]:
185
Depth [mm]:
30
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating system:
RouterOS - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

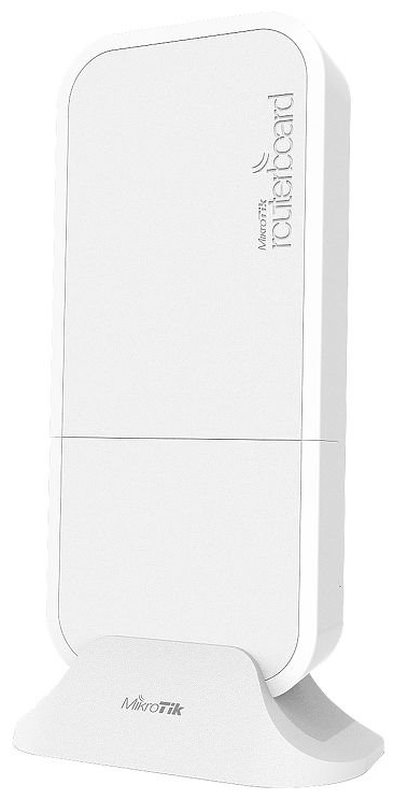

The wAP LTE is a small weatherproof wireless access point with a built in cellular modem that supports ONLY 4G connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP 4G also has one 10/100 Ethernet LAN port for your wired devices.

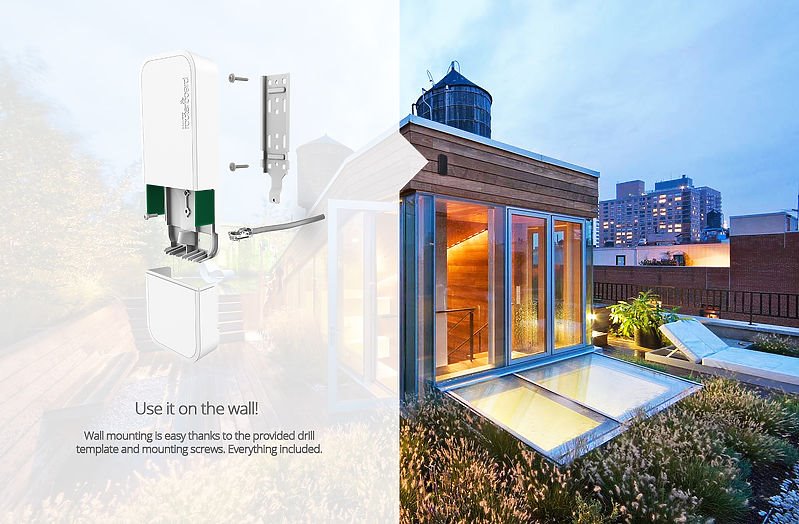

The waterproof device can be mounted outside your house, in the vehicle, on your porch or anywhere else where you need wireless access from your phone or computer. It also includes a desktop stand so you can put it inside the building near a window.

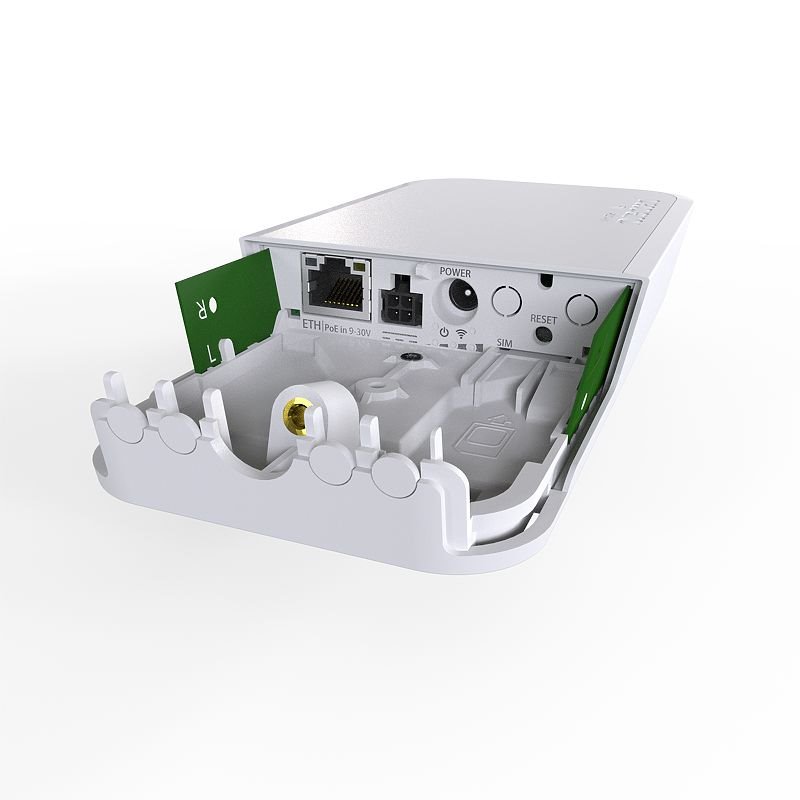

LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train.
RBwAPR-2nD&R11e-4G includes LTE modem that supports International LTE bands 3, 7, 20, 31, 41n, 42 and 43.
Package contains
Download
Datasheet Firmware (RouterOS / SwOS) Quick GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
