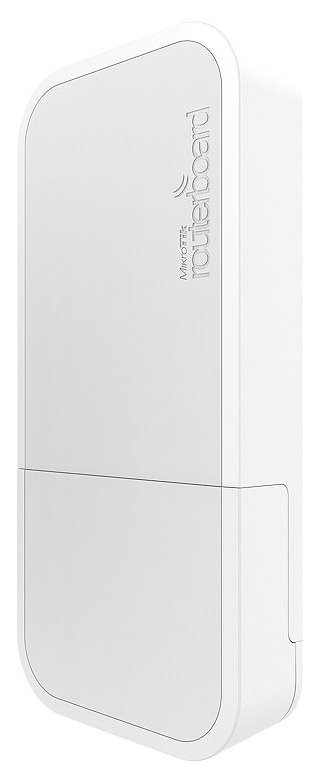

MikroTik RouterBOARD RBwAPR-2nD&R11e-LR2, wAP LoRa2 kit
MikroTik RouterBOARD RBwAPR-2nD&R11e-LR2, wAP LoRa2 kit
×
0/0
Your price excl. VAT
113.21 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 113.28 EUR |
| Your price incl. VAT (21%) | 137.07 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300689 | |
| Part No. | RBwAPR-2nD&R11e-LR2 | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
LoRa2 (2.4 GHz)
RBwAPR-2nD&R11e-LR2
113.21 EUR
ETH-SP-G2
10.41 EUR excl. VAT
12.68 EUR incl. VAT
In Stock
ML-WAP-H
9.14 EUR excl. VAT
11.06 EUR incl. VAT
In Stock
CT-290-48-B
6.20 EUR excl. VAT
7.50 EUR incl. VAT
In Stock
OFTP5E24-MSC
124.62 EUR excl. VAT
150.79 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Wireless frequency:
LoRa 2.4 GHz, 2.4 GHz
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
22
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
1
Antenna gain [dBi]:
2
Connectors and Interfaces
RF connectors:
(1) SMA female
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
9 .. 30V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
8
Power via connector/terminal:
9 .. 30V DC
Physical characteristics
Design:
Ceiling, Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 60
Width [mm]:
85
Height [mm]:
185
Depth [mm]:
30
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating system:
RouterOS - L4
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

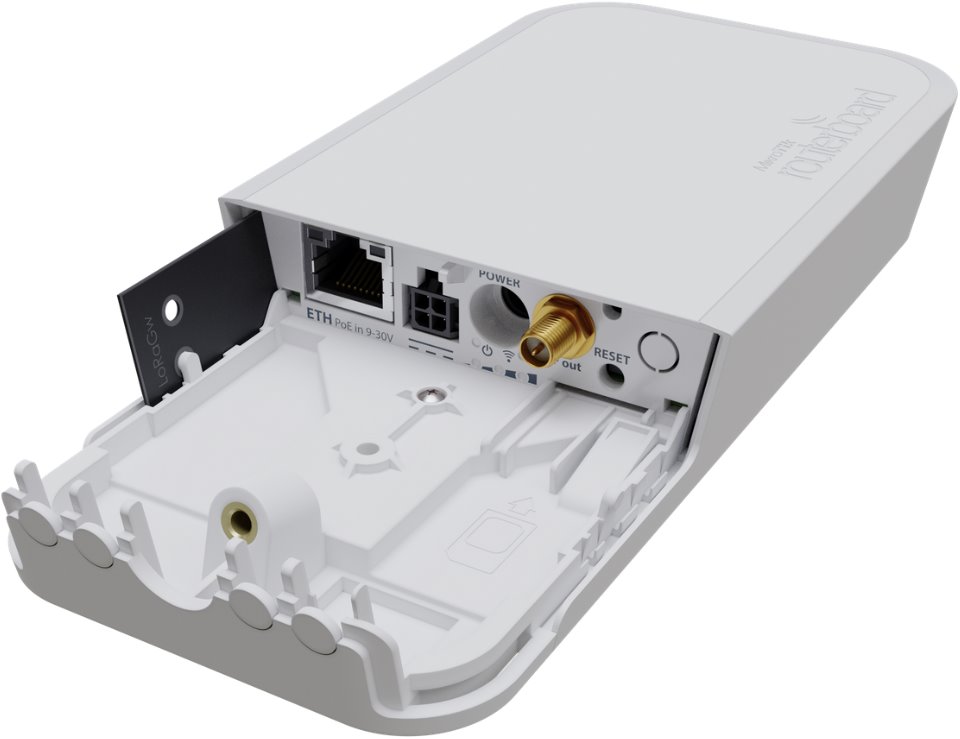

wAP LoRa2 is a complete out-of-the-box solution for use as a gateway to a LoRaWAN network. The device includes a pre-installed R11e-LR2 module for forwarding UDP packets to any public or private LoRa server, 1 RJ45 Ethernet port as well as a 2.4GHz wireless card to build an access point. All this in the well-known wAP design for outdoor mounting on a wall or mast.
The device has a built-in antenna with a gain of 4.7 dBi for connection to the LoRa network. You can also connect an external antenna via SMA connector to achieve greater distance.
This gateway also works with the 2.4 GHz frequency for LoRa®, which means significantly higher bandwidth, higher data transfer rates and shorter transmission times. And thanks to the Chirp modulation technology it does not interfere with the 2.4 GHz WLAN signal! An ideal solution for industrial assemblies with a high density of sensors.
What is LoRa good for?
LoRa is a solution for wireless data transmission, where the main goal is the lowest possible power consumption at low acquisition costs and a small data flow is sufficient.
MikroTik LoRa products are ready (not only) for the global network The Things Network - a well-known open source infrastructure that provides coverage of LoRa networks and thousands of useful applications. With The Things Network, you can get started with the Internet of Things in just one day. You can also easily upgrade to the enterprise solution of The Things Industries.
Package contents
Download
CE Datasheet Firmware (RouterOS / SwOS)Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
