MikroTik RouterBOARD RBwsAP-5Hac2nD, wsAP ac lite
We are sorry, this product is no longer in our offer.
MikroTik RouterBOARD RBwsAP-5Hac2nD, wsAP ac lite
×
0/0
Sale
MAXPI15
319 Kč excl. VAT
388 Kč incl. VAT
In Stock
PCU5E-5-MSC
92 Kč excl. VAT
111 Kč incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
433
Transmission speed - 2.4GHz [Mb/s]:
150
Tx power 2.4GHz [dBm]:
22
Tx power 5GHz [dBm]:
23
2.4GHz MIMO:
1 x 1 SISO
5GHz MIMO:
1 x 1 SISO
Type of antenna:
Built-in
Antenna gain [dBi]:
3, < 2
Connectors and Interfaces
LAN speed:
(3) 10/100Mbps
Power
Power over Ethernet:
802.3af, 802.3at, 18 .. 57V DC
Power type:
PoE
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
Max. power consumption [W]:
10
Physical characteristics
Design:
On the wall
Operating temperature [°C]:
-40 up to 60
Width [mm]:
112
Height [mm]:
126
Depth [mm]:
30
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
Internal storage [MB]:
16
RAM [MB]:
16
Software
Operating system:
RouterOS - L4
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description
The wsAP ac lite is a perfect access point (AP) for hospitality networks (hotels, shopping malls, hospitals, airports etc.). It has an unobtrusive case that fits in standard wall power sockets. This way, the unit doesn’t attract attention and blends into any environment.

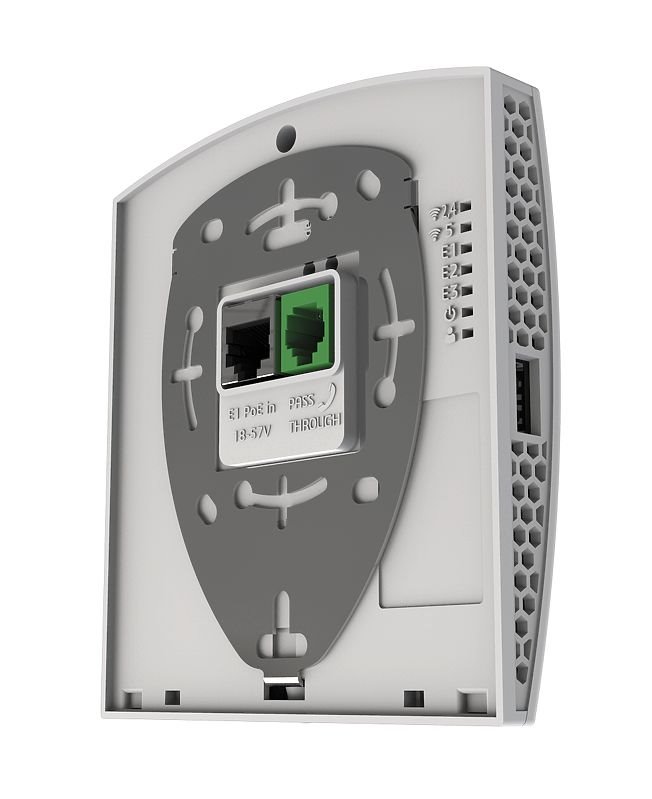

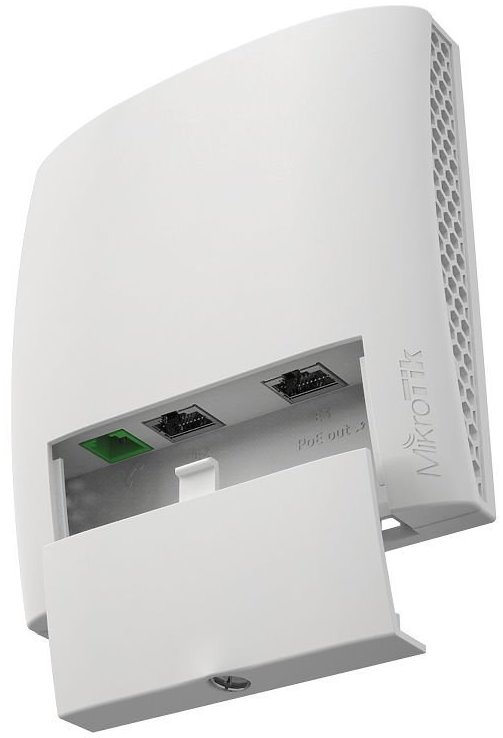

The wsAP has three Ethernet ports: one on the back side for easy PoE-in, and two LAN ports behind the front door. The device provides Dual concurrent 2.4 GHz and 5 GHz WiFi coverage, it supports 802.11ac, as well as legacy standards. A USB 2.0 port is provided, to charge mobile devices or for storage.

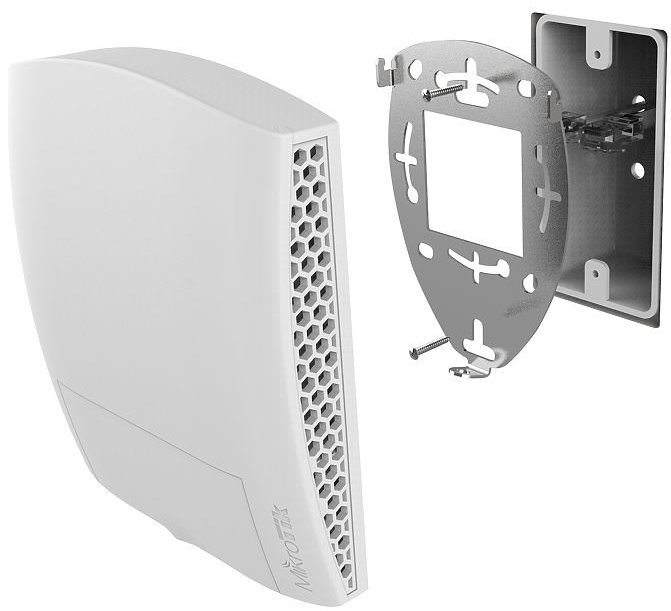

The device also has a pass through telephone jack (RJ11) to connect a desktop phone in a hotel room, for easier cable management. As a separate accessory you can order a special screw set (product code K50), that ensures the bottom door can only be opened by the owner. Mounting bracket fits US and EU most popular telecomunication sockets.
Package contains
Download
CE Datasheet Firmware (RouterOS / SwOS) Quick GuideGPSR
