MikroTik S53UG+5HaxD2HaxD-TC&R11e-LTE7, Chateau LTE7 ax
MikroTik S53UG+5HaxD2HaxD-TC&R11e-LTE7, Chateau LTE7 ax
×
0/0
New product
Your price excl. VAT
113.37 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 113.44 EUR |
| Your price incl. VAT (21%) | 137.26 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10920043 | |
| Part No. | S53UG+5HaxD2HaxD-TC&R11e-LTE7 | |
| Warranty | 24 months | |
SAW30-240-1200GA
6.68 EUR excl. VAT
8.18 EUR incl. VAT
stiqtyfree:45
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
SAW30-240-1200GR2A
6.68 EUR excl. VAT
8.18 EUR incl. VAT
stiqtyfree:51
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
shipmin: 30.1.2026
Expected 30.1.2026
PCU5E-5-MSC
3.79 EUR excl. VAT
4.59 EUR incl. VAT
stiqtyfree:130
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-100
Wireless frequency:
2.4 + 5 GHz (dual band), 3G (GSM), LTE
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
Transmission speed - 5GHz [Mb/s]:
1201
Transmission speed - 2.4GHz [Mb/s]:
574
Tx power 2.4GHz [dBm]:
24
Tx power 5GHz [dBm]:
24
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in, Detachable
Internal antennas:
4
Detachable antennas:
2
Antenna gain [dBi]:
3, 6
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (28) 700 MHz, (32) 1500 MHz
Connectors and Interfaces
LAN speed:
(1) 1G/2.5Gbps + (4) 10/100/1000Mbps
Gigabit LAN:
Yes
USB ports 2.0:
1
SIM slot:
Yes
SIM slots quantity:
1
USB:
Yes
Power
Power type:
DC connector
Max. power consumption [W]:
22
Power via connector/terminal:
12 .. 28V DC
Physical characteristics
Design:
Desktop
Purpose:
Indoor
Buttons:
Reset, mode
Operating temperature [°C]:
-40 up to 70
Width [mm]:
240
Height [mm]:
156
Depth [mm]:
44
Hardware
CPU:
IPQ-6010
CPU frequency [MHz]:
1800
CPU cores:
4
Internal storage [MB]:
128
RAM [MB]:
1024
Software
Operating mode:
AP Router, Cellular router
Operating system:
RouterOS v7 - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / (preset password, see label/engraving)
Product description

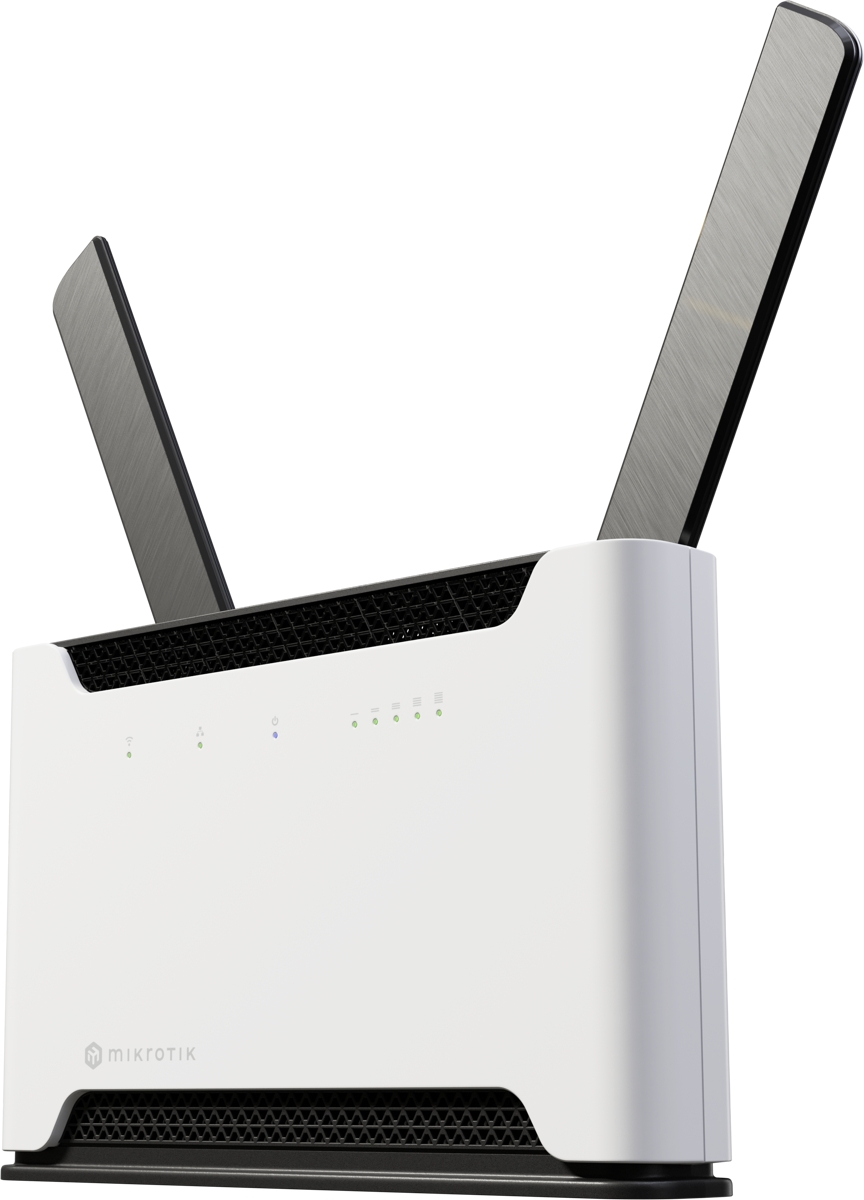

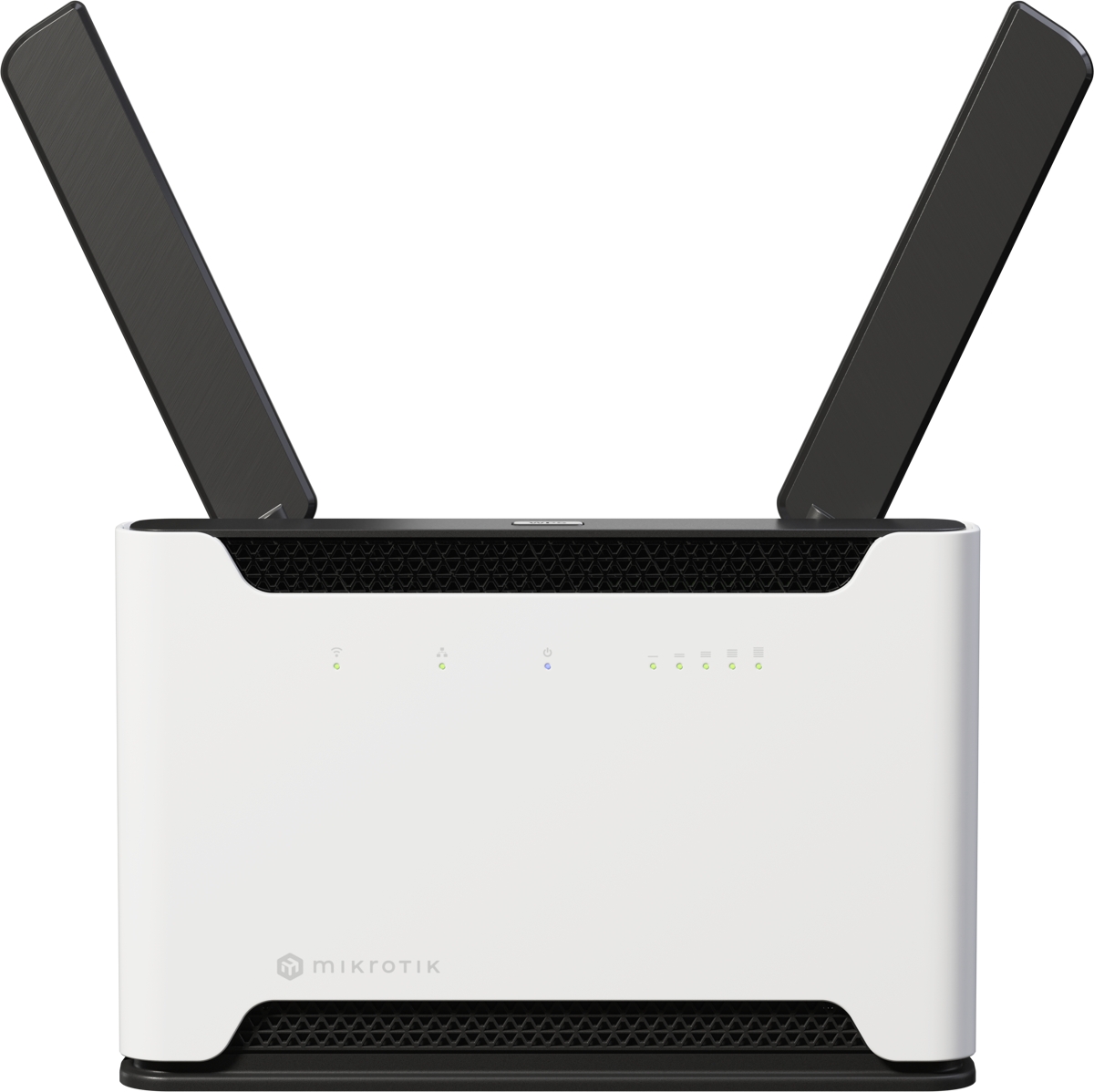

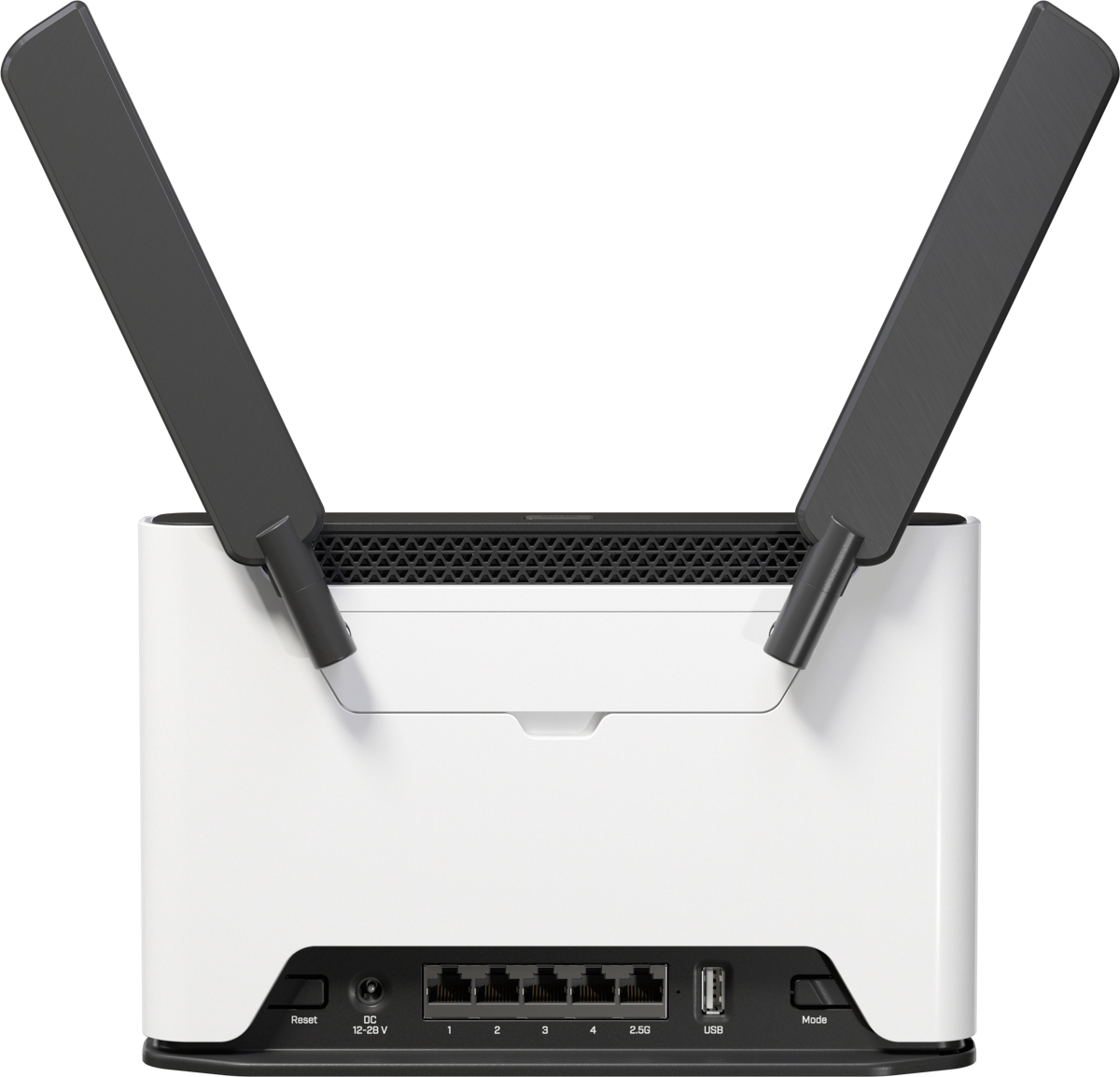

The MikroTik Chateau LTE7 ax is an elegant dual-band Wi-Fi 6 routerboard operating simultaneously in the 2.4GHz and 5 GHz bands, delivering a maximum total throughput of up to 1.77Gbps (2.4GHz 2x2 - 574Mbps, 5GHz 2x2 - 1200Mbps) and is equipped with (1) 2.5G port, (4) 1Gbit ports and (2) external Wi-Fi antennas.
The router is supplied together with the R11e-LTE7 modem. The modem supports 4G LTE (Cat. 7) and 3G networks, with speeds of up to 300Mbps downlink and 100Mbps uplink. It utilizes 2x2 MIMO on the downlink and carrier aggregation, which allows the simultaneous use of multiple LTE bands. This feature improves response times and connection stability in high-traffic areas and can enhance transmission efficiency in locations with weaker signal conditions.
Package contents
