MikroTik S53UG+5HaxD2HaxD-TC&RG650E-EU, Chateau 5G R17 ax
Your price excl. VAT
254.90 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 254.97 EUR |
| Your price incl. VAT (21%) | 308.51 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10920020 | |
| Part No. | S53UG+5HaxD2HaxD-TC&RG650E-EU | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:98
_17:
avail:2
infocode: stock
queu:
In Stock
PCU5E-5-MSC
3.77 EUR excl. VAT
4.56 EUR incl. VAT
stiqtyfree:561
_17:
avail:2
infocode: stock
queu:
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-100
Wireless frequency:
2.4 + 5 GHz (dual band), 3G (GSM), 5G (GSM), LTE
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
Transmission speed - 5GHz [Mb/s]:
1201
Transmission speed - 2.4GHz [Mb/s]:
574
Tx power 2.4GHz [dBm]:
24
Tx power 5GHz [dBm]:
24
Security:
WPA, WPA2, WPA3
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in, Detachable
Fixed antennas:
2
Internal antennas:
4
Antenna gain [dBi]:
3, 6
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (28) 700 MHz, (32) 1500 MHz
5G bands support:
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n67) 700 MHz, (n26) 850 MHz
Connectors and Interfaces
LAN speed:
(1) 1G/2.5Gbps + (4) 10/100/1000Mbps
Gigabit LAN:
Yes
USB ports 2.0:
1
SIM slot:
Yes
SIM slots quantity:
1
USB:
Yes
Power
Max. power consumption [W]:
26
Power via connector/terminal:
12 .. 28V DC
Physical characteristics
Design:
Desktop
Purpose:
Indoor
Buttons:
Reset, mode
Operating temperature [°C]:
-40 up to 70
Width [mm]:
240
Height [mm]:
156
Depth [mm]:
44
Hardware
CPU:
IPQ-6010
CPU frequency [MHz]:
1800
CPU cores:
4
Internal storage [MB]:
128
RAM [MB]:
1024
Software
Operating mode:
AP Router, Access Point, Cellular router
Operating system:
RouterOS v7 - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / (preset password, see label/engraving)
Video
Product description

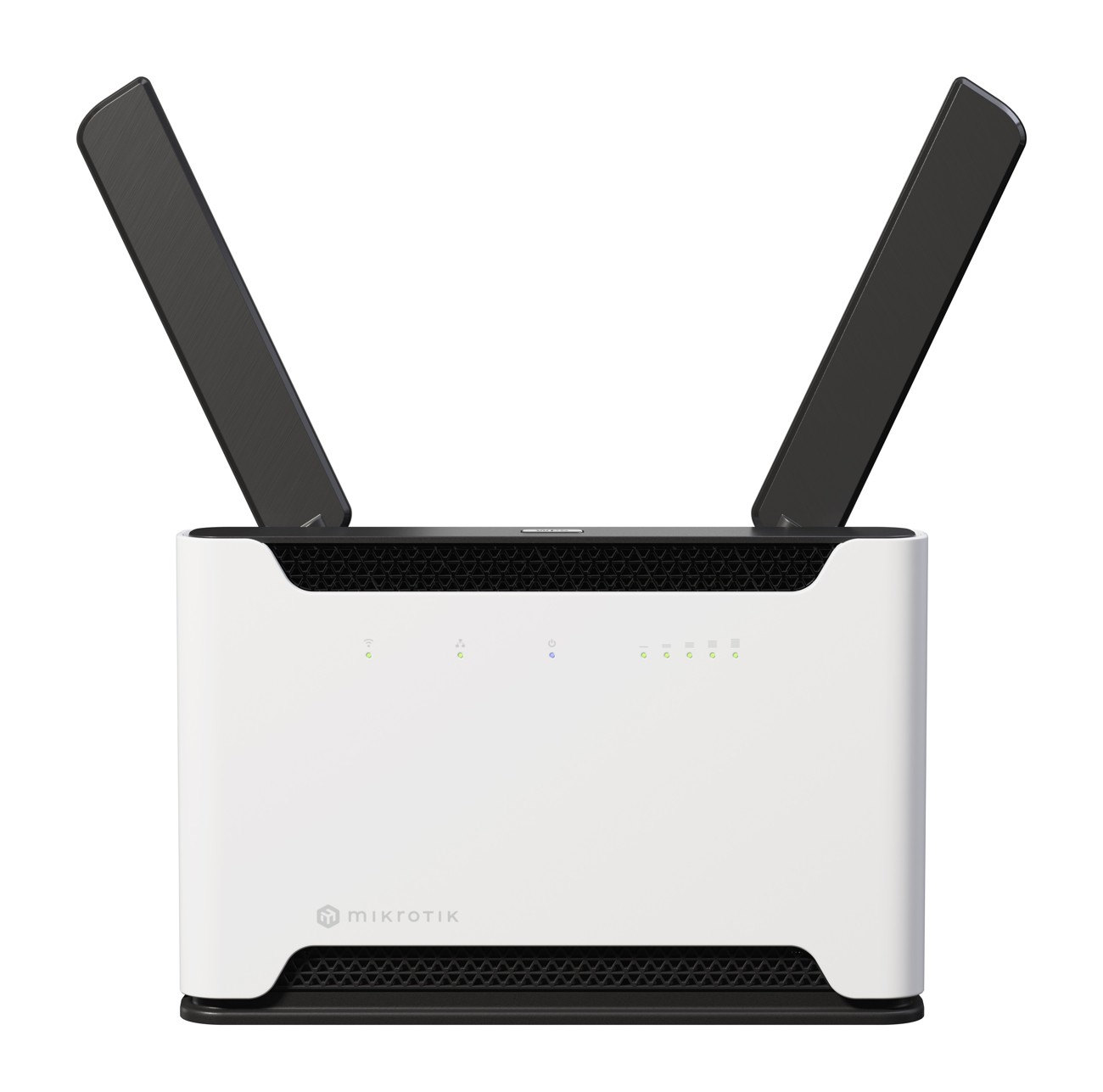

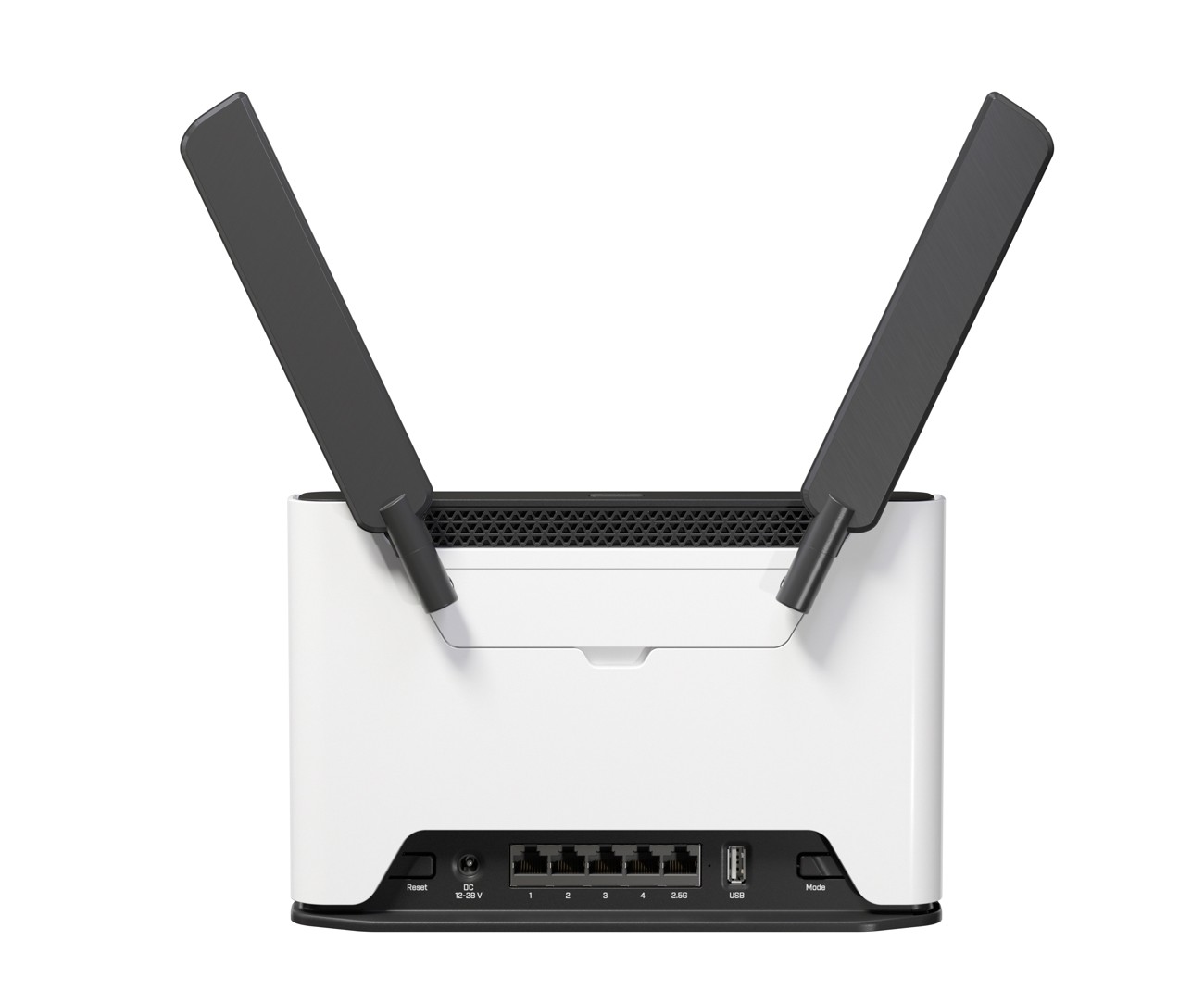

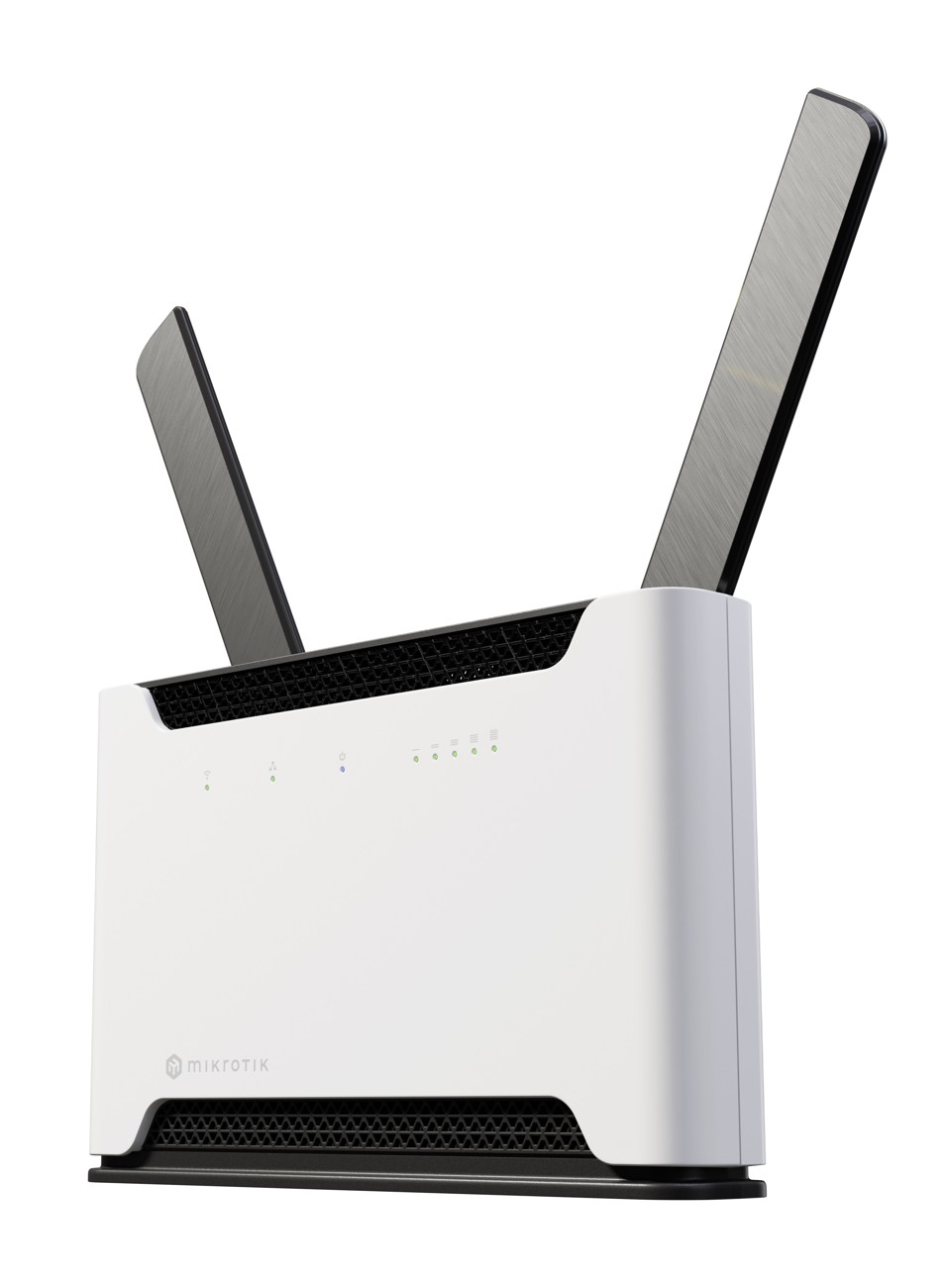

Chateau 5G ax R17 combines elegant design, powerful dual-band Wi-Fi 6 coverage, and extensive capabilities powered by RouterOS v7. Under the hood, a major upgrade has been made – a new 5G Release 17-compatible modem brings support for the latest mobile technologies, including advanced carrier aggregation. On the back, you’ll find a USB port, four 1Gbps Ethernet ports and one 2.5G Ethernet port.
The result is faster connectivity, more stable signal, and better responsiveness, even in areas with weaker coverage. Wherever you are, Chateau will always find the optimal signal.
Your network, your rules: eSIM and microSIM
Chateau features a built-in eSIM fully compatible with:
Strong signal, strong performance
With four built-in LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, Chateau delivers excellent performance for both downloads and uploads even in high-density environments:
Professional features made easy
The router runs on RouterOS v7, an industrial-grade operating system used by ISPs and network admins worldwide – yet its intuitive interface makes it accessible for everyday users. A dedicated mobile app for iOS and Android is also available to simplify setup.
No monthly fees or subscriptions
Set up a secure VPN, optimize streaming, limit bandwidth, create VLANs, block websites, or receive SMS alerts when limits are exceeded – all without hidden fees or subscriptions.
Package Contents
Download
Datasheet Firmware (RouterOS / SwOS)GPSR
