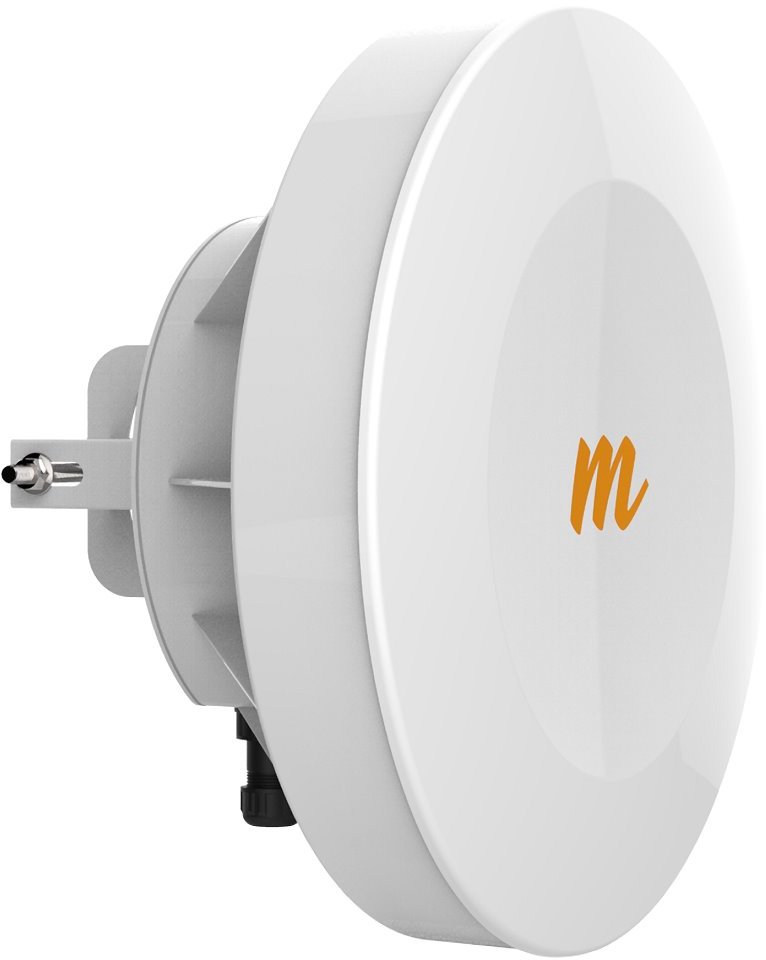

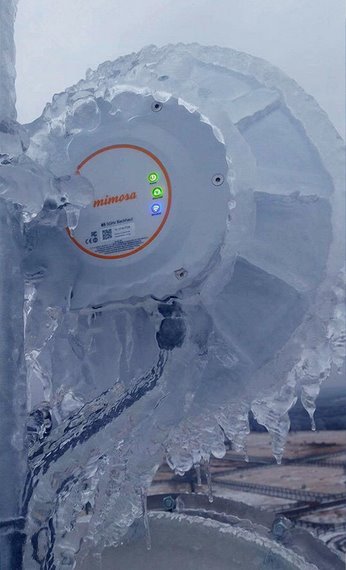

Mimosa B5, 1Gbps PtP backhaul, 25dBi
Your price excl. VAT
673.69 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 673.76 EUR |
| Your price incl. VAT (21%) | 815.25 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Mimosa |
|
|---|---|---|
| Code | 10160001 | |
| Part No. | 100-00001(B5) | |
| Warranty | 24 months | |
ETH-SP-G2
10.42 EUR excl. VAT
12.69 EUR incl. VAT
In Stock
PK35S421V100
12.45 EUR excl. VAT
15.06 EUR incl. VAT
In Stock
CT-290-48-B
6.20 EUR excl. VAT
7.50 EUR incl. VAT
In Stock
OFTP5E24-MSC
124.72 EUR excl. VAT
150.91 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Sensitivity [dBm]:
-93
F/B ratio [dB]:
30
Cross-Pol Isolation [dB]:
20
Maximum modulation:
256 QAM
Wireless frequency:
5 GHz
WiFi standards:
Mimosa TDMA, TDMA-FD
Transmission speed - 5GHz [Mb/s]:
1733
Tx power 5GHz [dBm]:
30
Security:
128bit AES, 256bit AES
Elevation beam width (-6dB) [°]:
8
Azimuth beam width (-6dB) [°]:
8
5GHz MIMO:
4 x 4
Type of antenna:
Built-in
Internal antennas:
4
Antenna gain [dBi]:
25
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3at, 48V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
20
Physical characteristics
Designed for mast diameter [mm]:
30 up to 90
Purpose:
Outdoor
Collar:
Yes
Operating temperature [°C]:
-40 up to 55
Weight [g]:
4900
Width [mm]:
442
Height [mm]:
442
Depth [mm]:
362
Software
Operating mode:
Client, Access Point
Default IP address:
192.168.1.20
Default login and password:
Is set by the user at the first startup
Product description
The Mimosa B5 backhaul radio is, hands down, the easiest to use and highest capacity unlicensed 5 GHz backhaul solution for short and mid-range link applications. It’s iIdeal for collocation applications, relay sites, and building-to-building settings.
Easily Add New Links
Typical backhaul solutions waste spectrum with every link installed and impacting network capacity. Unique high precision GPS Sync technology allows Mimosa B5 and B5c products to reuse the same channel network wide, and up to 4 links can auto-coordinate.

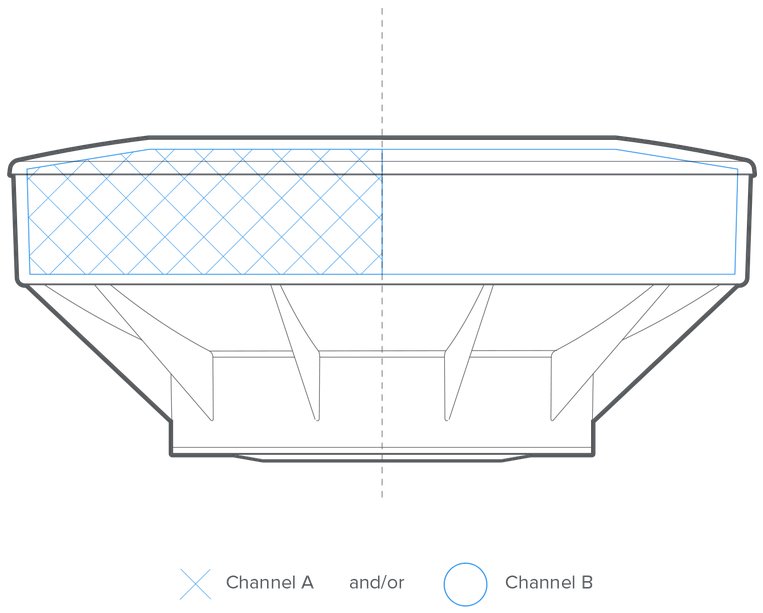

Double Reliability
Unlicensed spectrum can be unpredictable. So Mimosa custom engineered unique multi-channel and auto-everything technology to protect your links when you encounter interference. The B5 and B5c automatically keep your links up with two independent operating channels, and adapting using our auto-everything technology to resolve problems proactively to deliver optimal link speed and reliability. It's like 2 smart links in a single radio!
Incredibly Fast. Incredibly Flexible
Awarded the fastest unlicensed backhaul in the industry, the B5 and B5c also provide extensive bandwidth control options. Dynamic modes automatically adapt with traffic demand and provide ultra low ~1ms link latency for sensitive voice and video communications services. While reserved bandwidth and GPS sync modes allow symmetric or 75/25 traffic direction reservation.

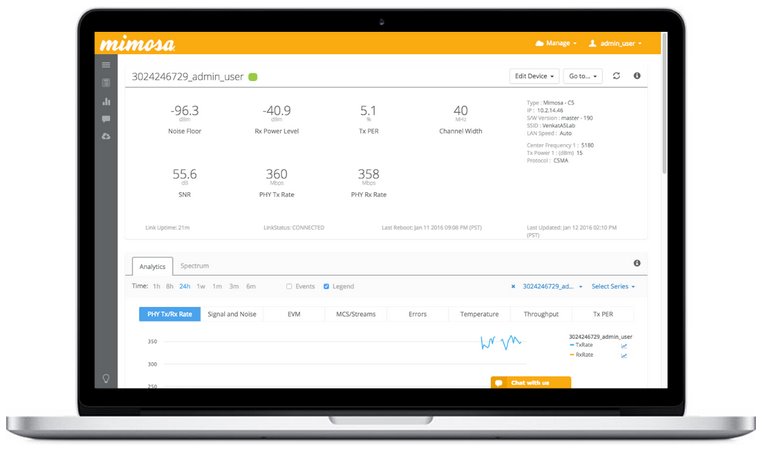

Monitor with Ease, and So Much More
Immediately after install, your links are ready to be monitored via the free Mimosa Cloud service. With vast data collection and analysis, assessing link health and identifying potential problems has never been easier.
Package contains
